Awning Windows

ADDITIONAL RESOURCES

Use the buttons below to view additional technical drawings, models, and performance data, or keep scrolling.

Looking for Loewen standard sizes? Our Product Configurator allows you to browse our standard sizes and make configurations.

01 - Basics

FRAME CLADDING

Standard Frame Cladding

Contemporary Frame Cladding

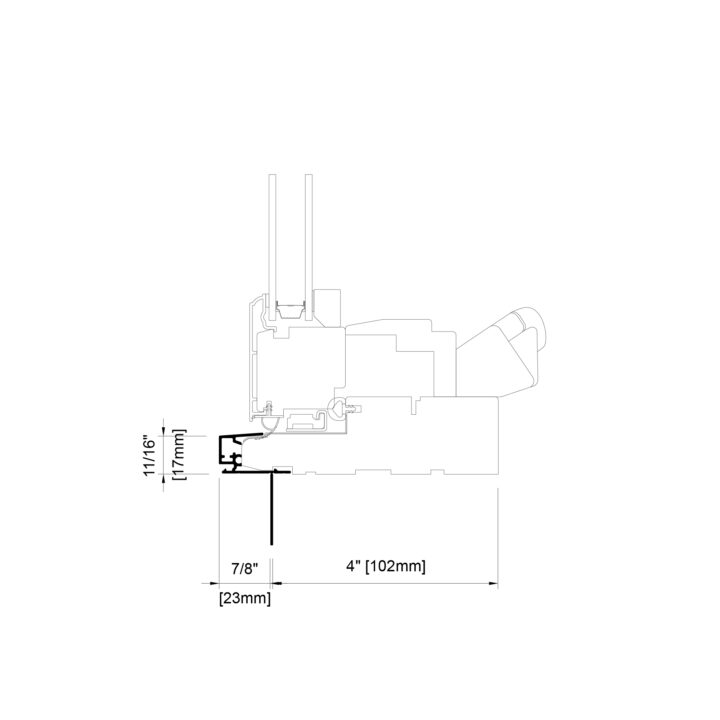

Our contemporary frame cladding moves the nailing flange towards the interior, because of this a jamb extension is needed to obtain a 4-9/16″ jamb depth.

Wall Connection Detail

Metal Clad - Dual Glazed, Plan View - Wall Connection

Metal Clad - Dual Glazed, Head & Sill Detail - Wall Connection

All Wood - Triple Glazed, Plan View - Wall Connection

All Wood - Triple Glazed, Head & Sill Detail - Wall Connection

02 - MAIN CONFIGURATIONS

Rotogear

Metal Clad - Triple Glazed, Square Glazing Stops, Retractable Screen - Head & Sill Detail

Metal Clad - Dual Glazed, Flat Casing with Heritage Sill Nose, Standard Screen - Head & Sill Detail

Metal Clad - Dual, Triple, Standard, Retractable Screen - Plan View

All Wood - Dual Glazed, Flat Casing, BC Subsill, Retractable Screen

All Wood - Triple Glazed, 2 inch Brickmould, with Standard Subsill, Standard Screen - Head & Sill Detail

All Wood - Dual, Triple, Standard, Retractable Screen - Plan View

Pushout

Metal Clad - Triple Glazed, Adams Casing with BC Sill Nose, Retractable Screen - Head & Sill Detail

Metal Clad - Dual Glazed, Nose & Cove Casing with Heritage Sill Nose, Hinged Wood Screen - Head & Sill Detail

Metal Clad - Hinged Wood, Retractable Screen - Plan View

All Wood - Dual Glazed, Adams Casing with Heritage Subsill, Square Glazing Stops, Retractable Screen - Head & Sill Detail

All Wood - Triple Glazed, 2 inch Brickmould with BC Subsill, Putty Glazing Stops, Hinged Wood Screen - Head & Sill Detail

All Wood - Hinged Wood, Retractable Screen - Plan View

Mission®

Metal Clad - Dual Glazed, 2 inch Brickmould, Standard Sill Nose, Retractable Screen - Head & Sill Details

Metal Clad - Triple Glazed, Hinged Wood Screen - Head & Sill Detail

Metal Clad - Hinged Wood Screen - Plan Details

Non-Clad - Dual Glazed, Square Glazing Stops, Retractable Screen, 2 inch Brickmould, Standard Subsill - Head & Sill Detail

Non-Clad - Triple Glazed, Hinged Wood Screen, 2 inch Brickmould, Standard Screen - Head & Sill Detail

Non-Clad - Hinged Wood Screen - Plan Details
