MultiSlide Doors

Sample Configurations

Stacking	Pocketed
0XX	PXX
0XXX	PXXX
0XXXX	PXXX
0XXXXXXX	PXXXXXXXX
0X – X0	PXX – XXP
0XX – XX0	PXXX – XXXP
0XXX – XXX0	PXXXX – XXXXP

X = Operating 0 = Fixed P = Pocket

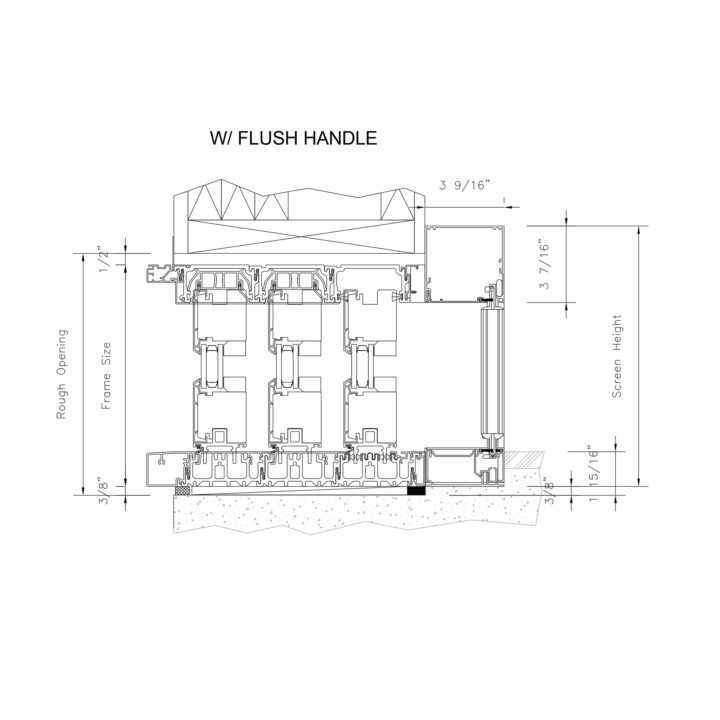

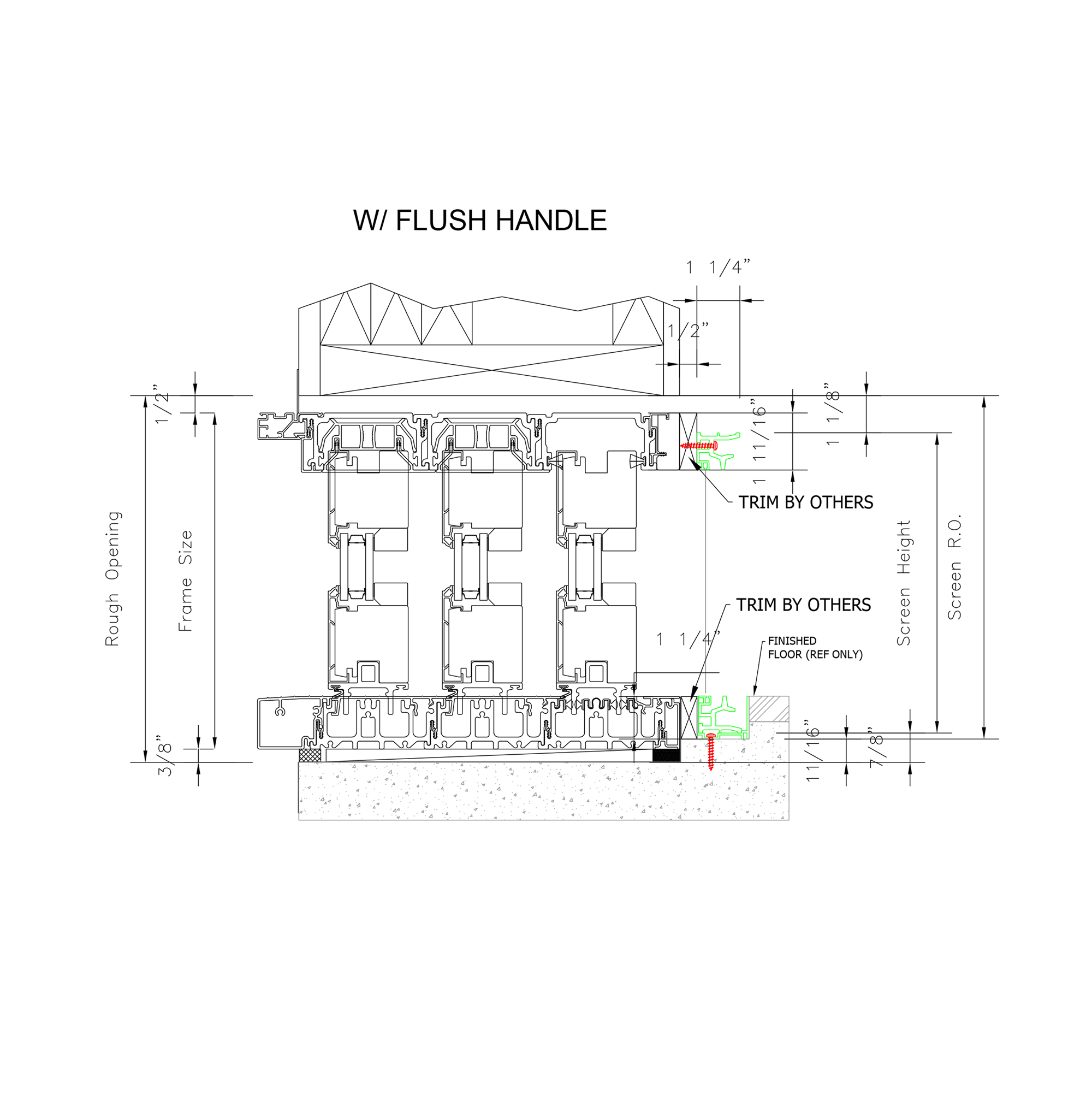

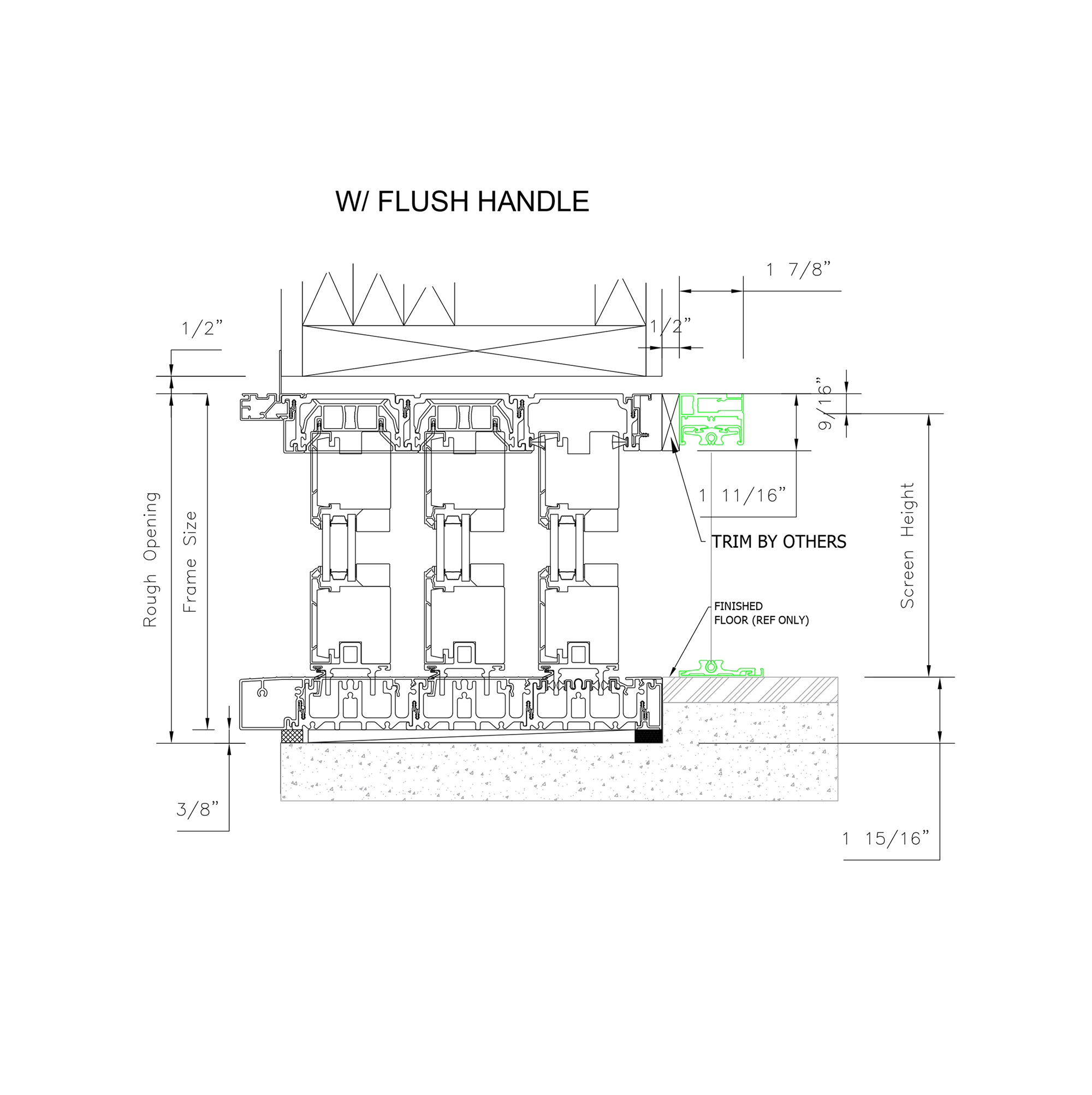

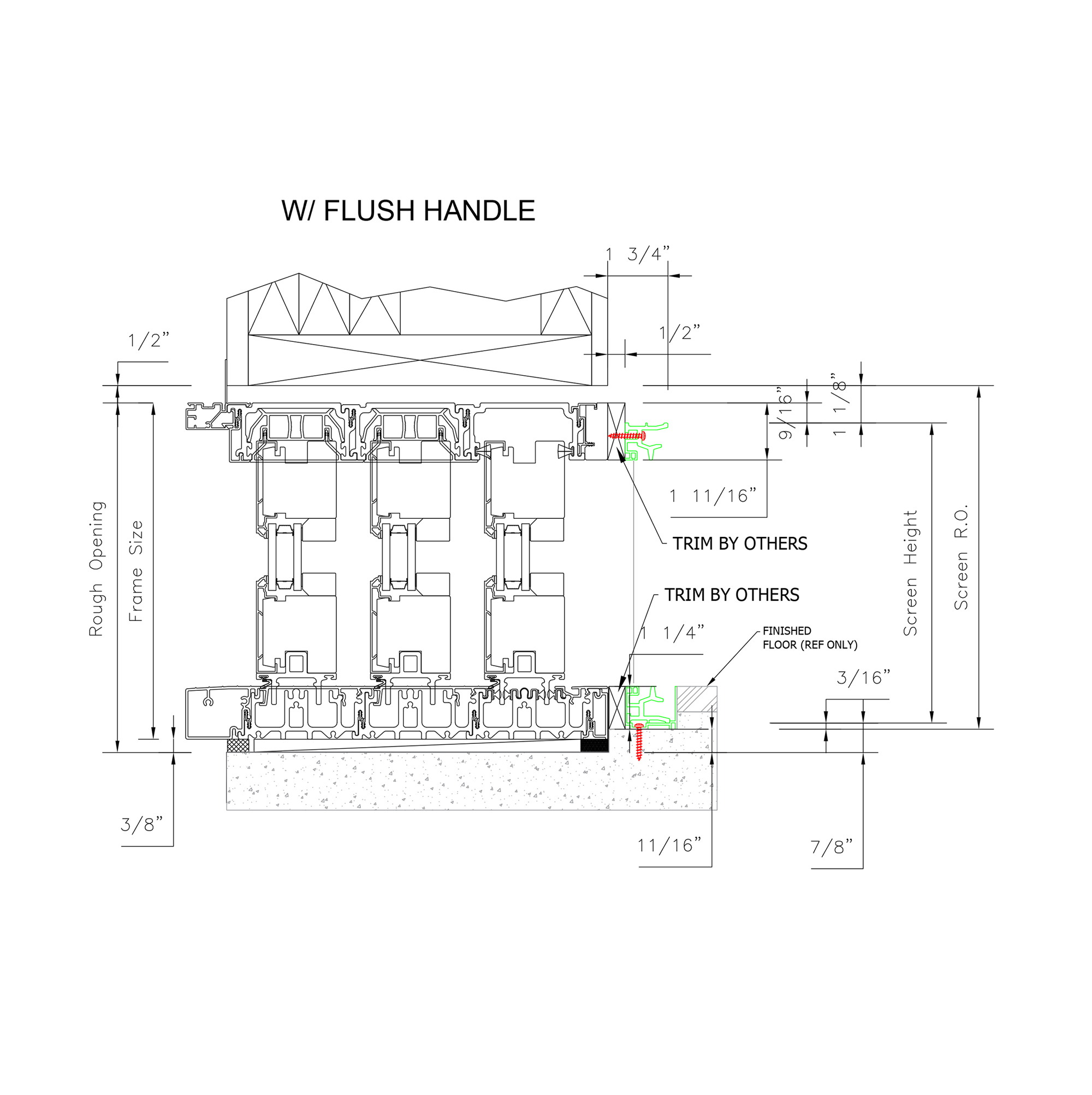

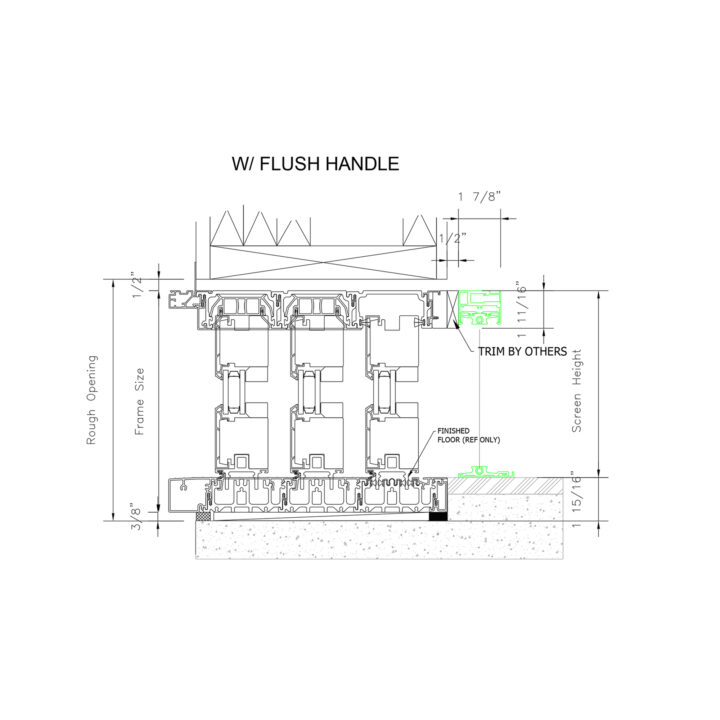

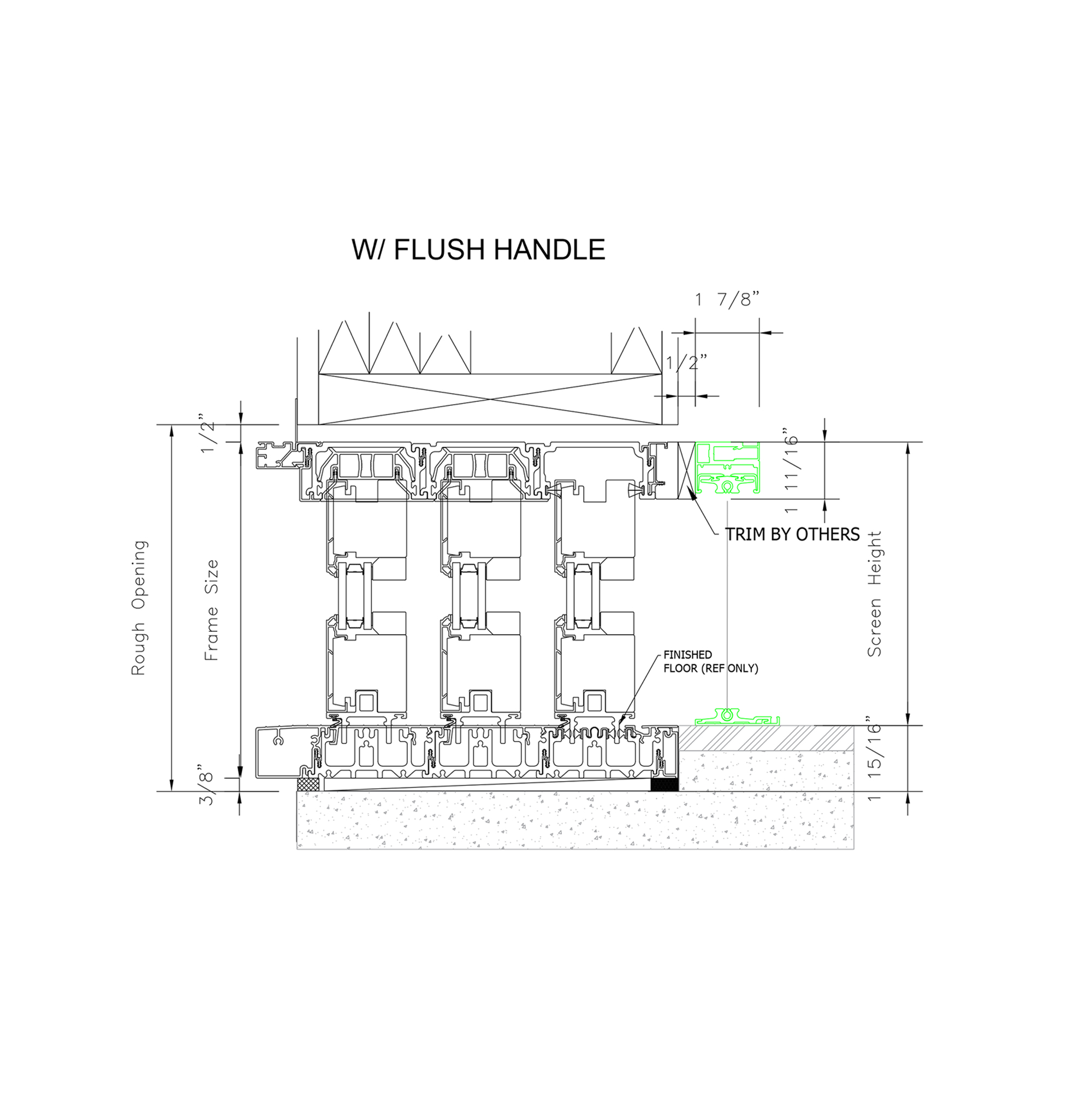

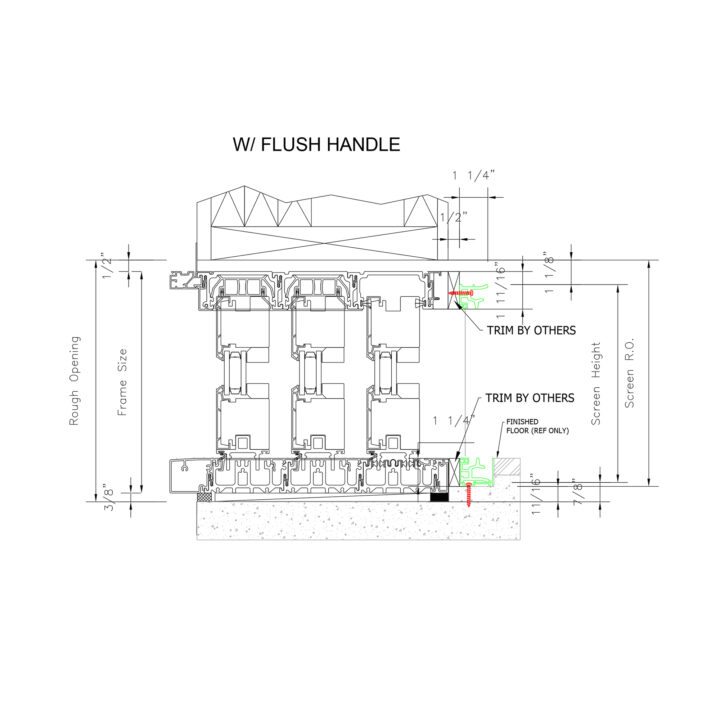

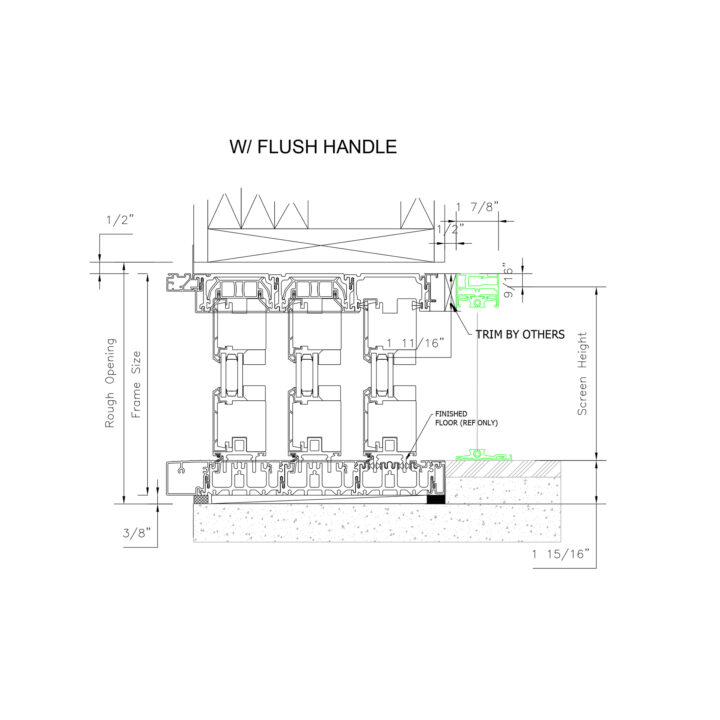

Flush Handle

Keyed Option

Non-Keyed Option

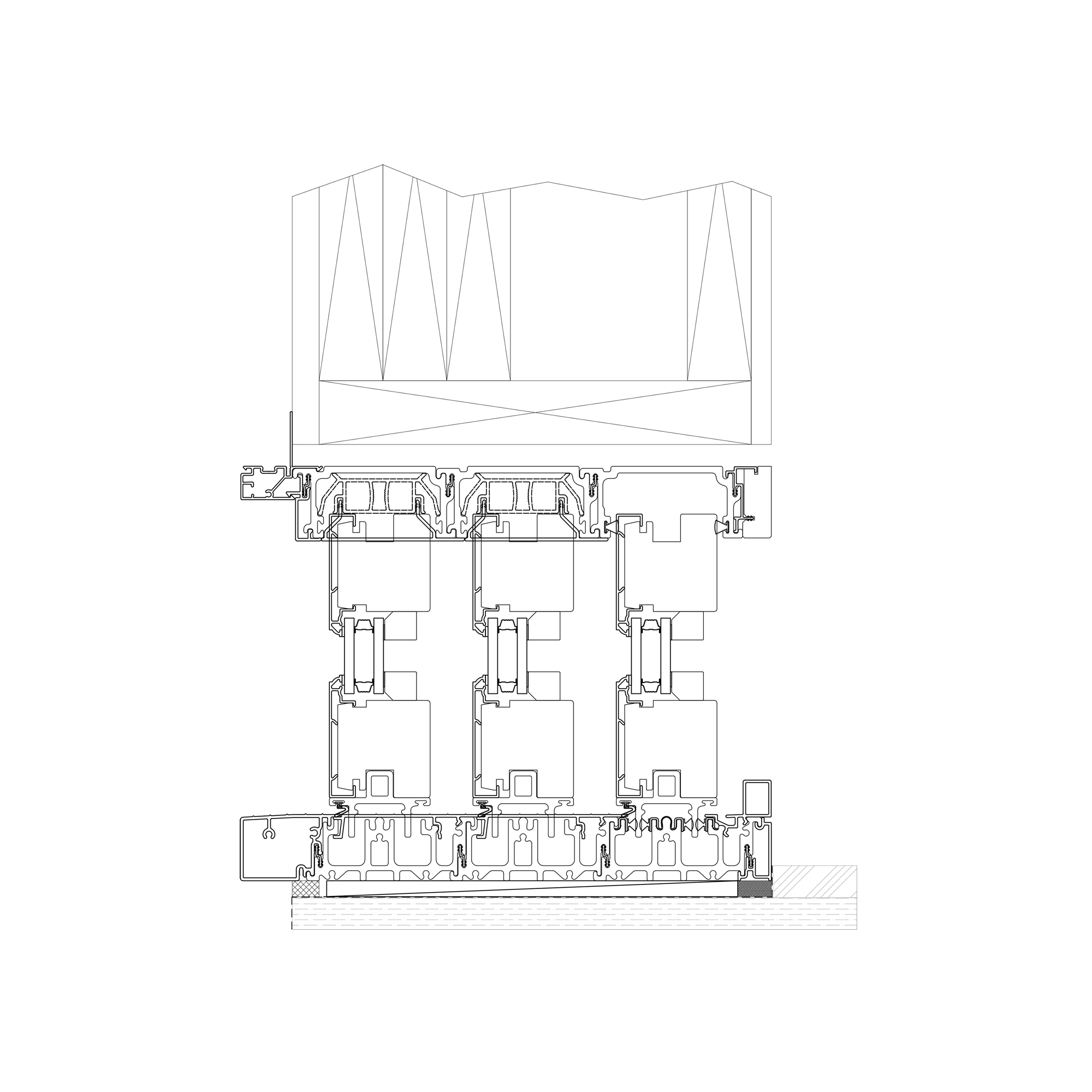

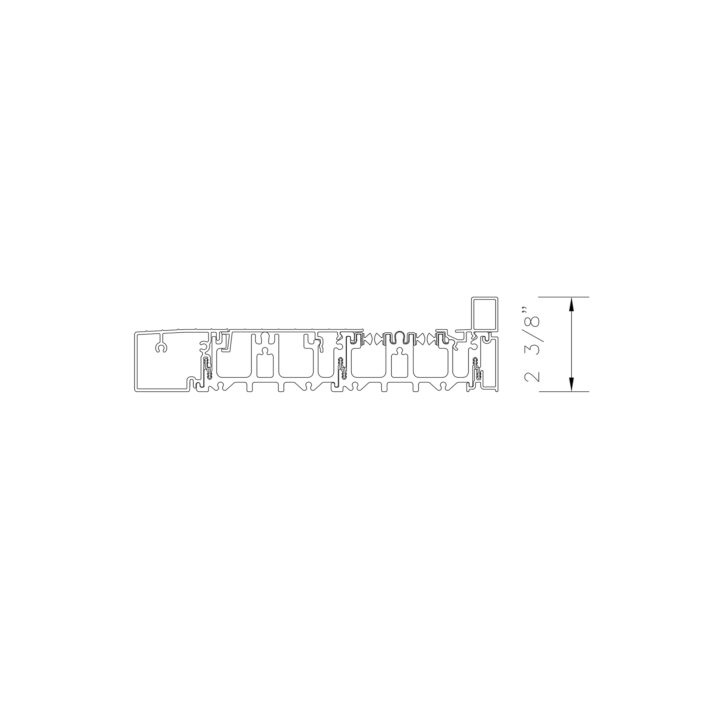

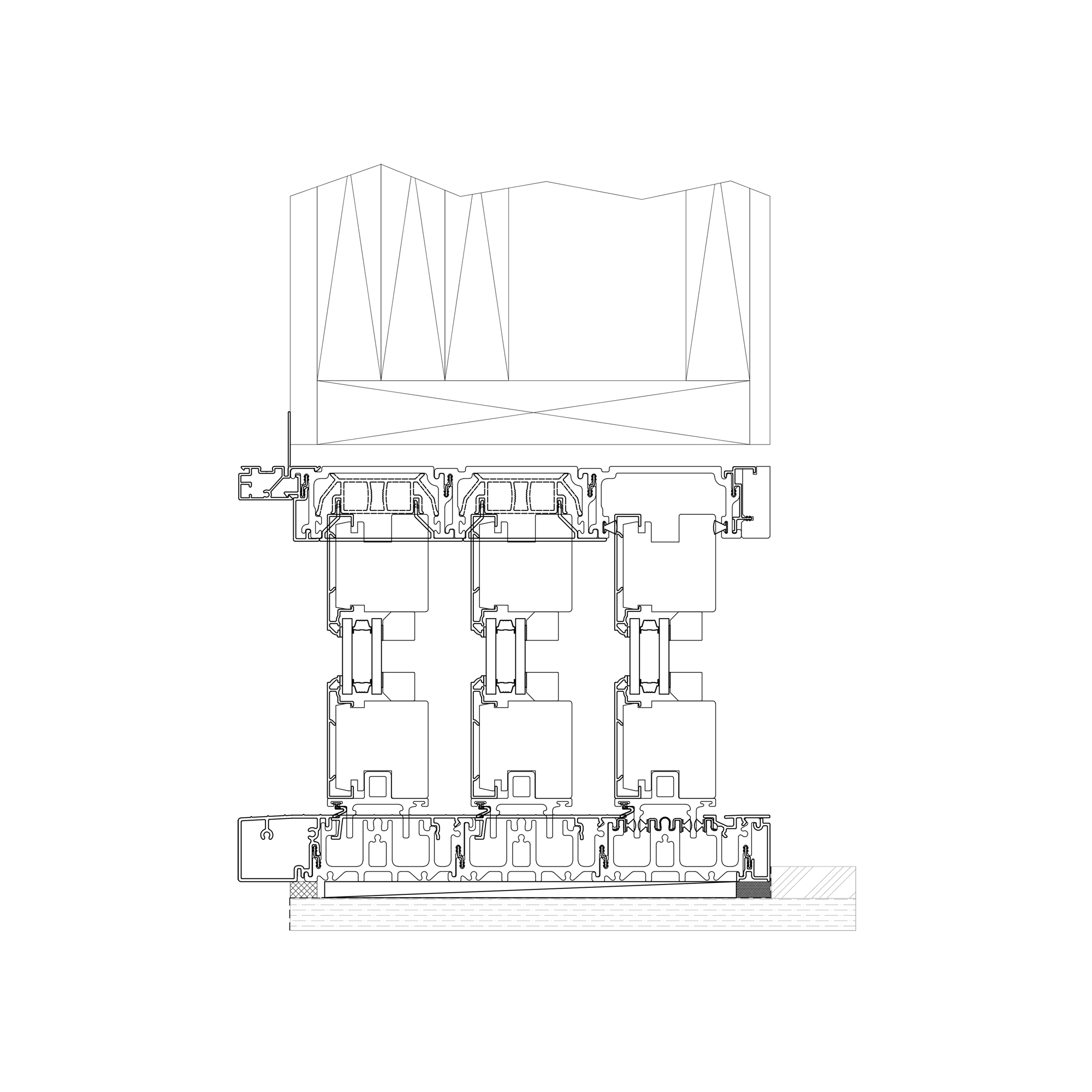

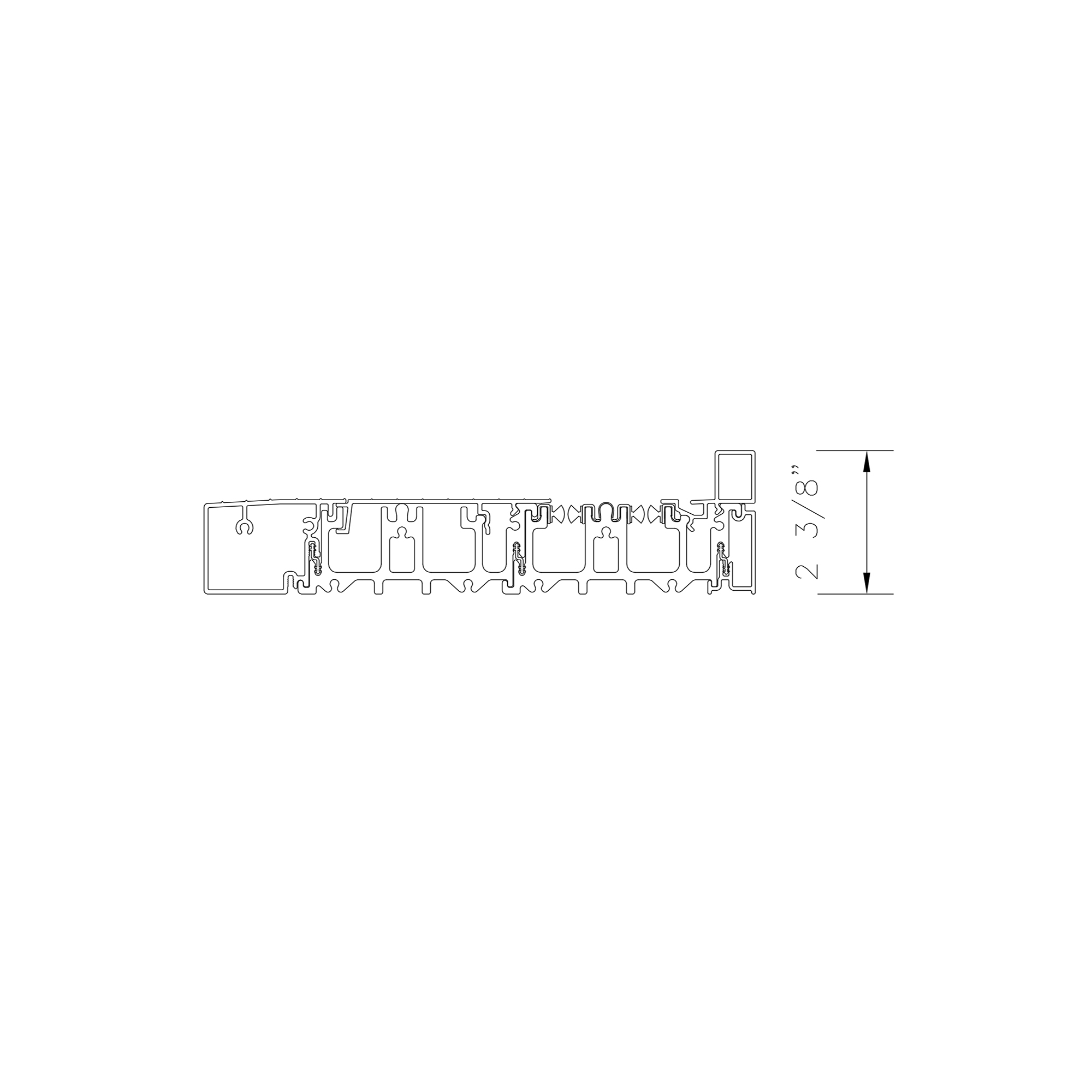

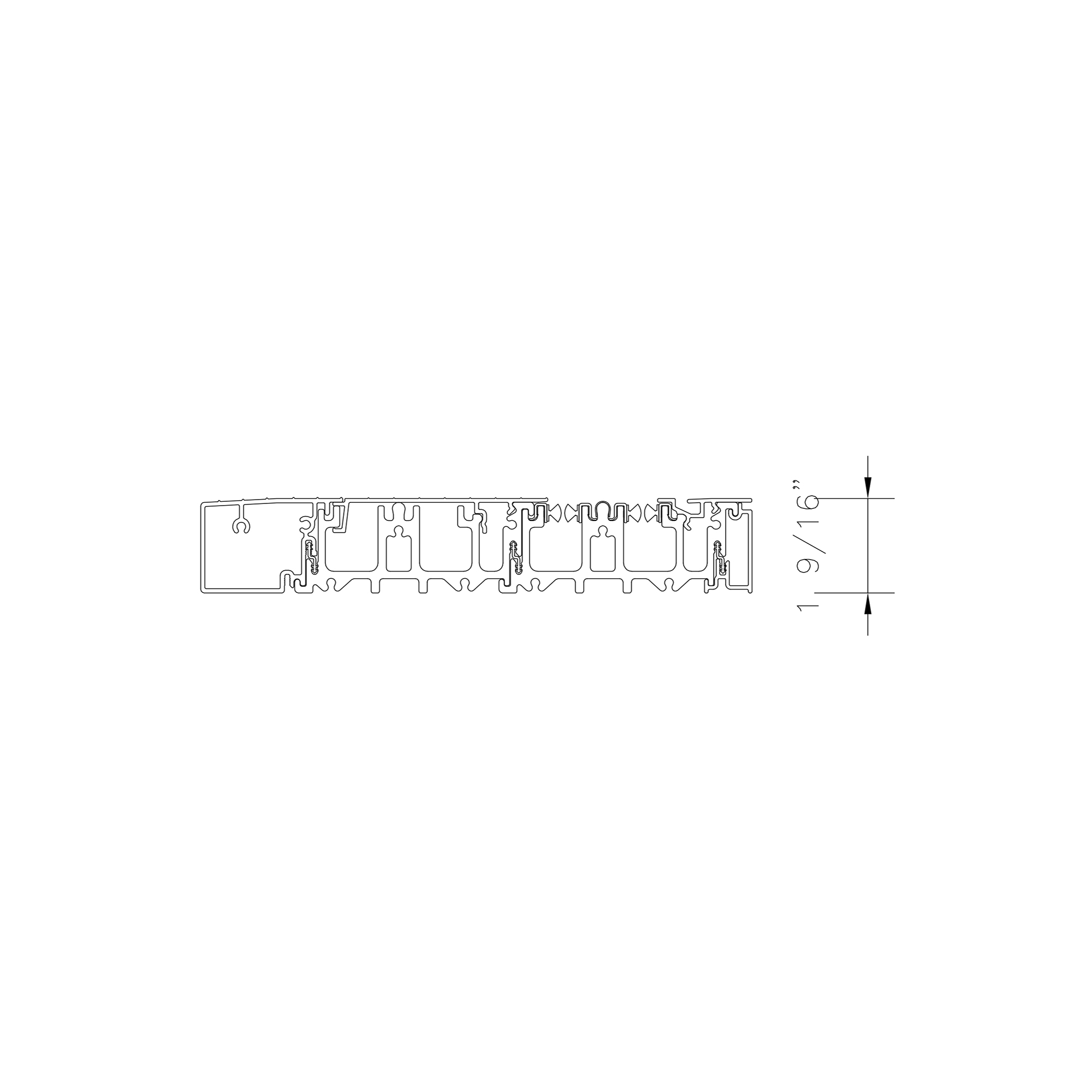

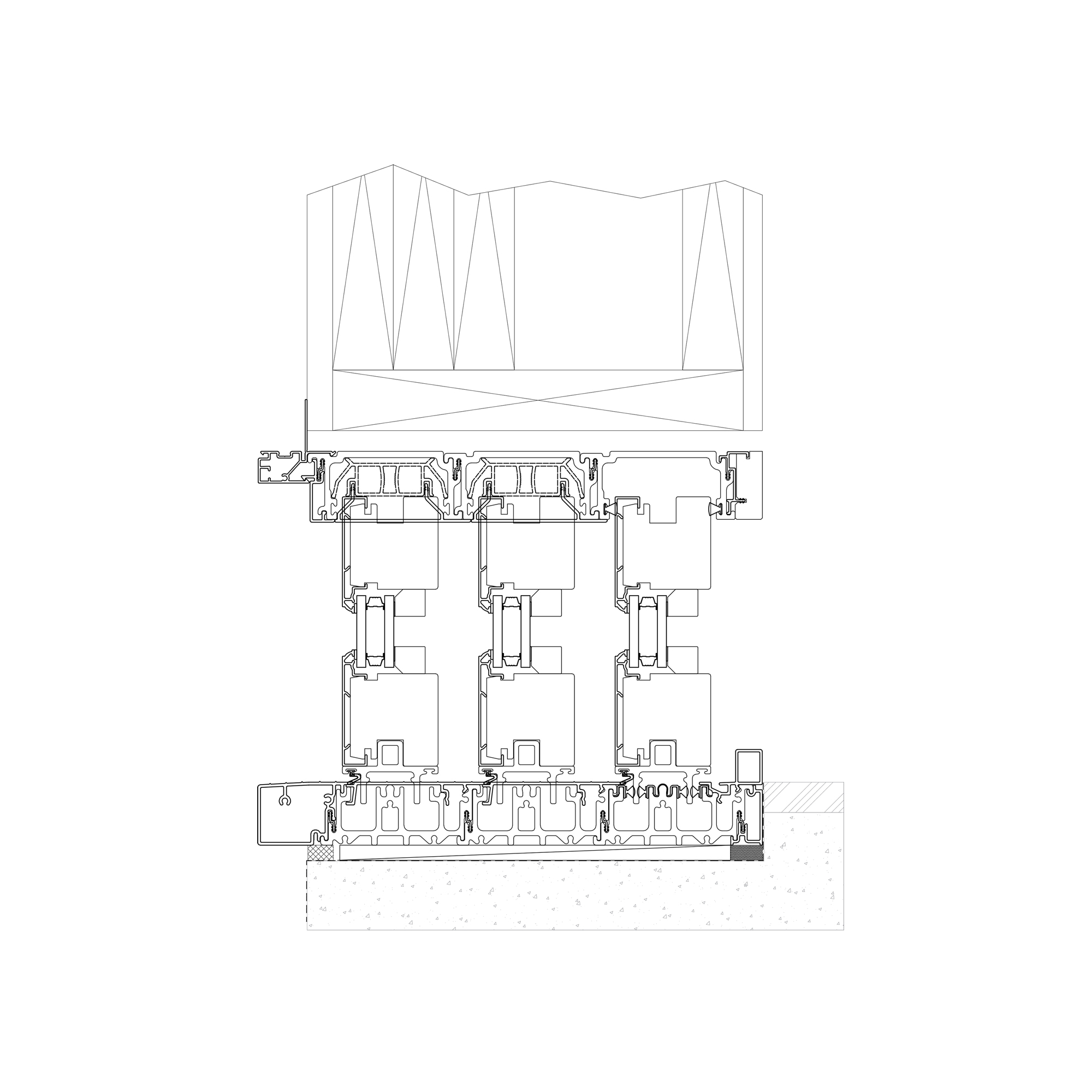

Optional Risers

3/4

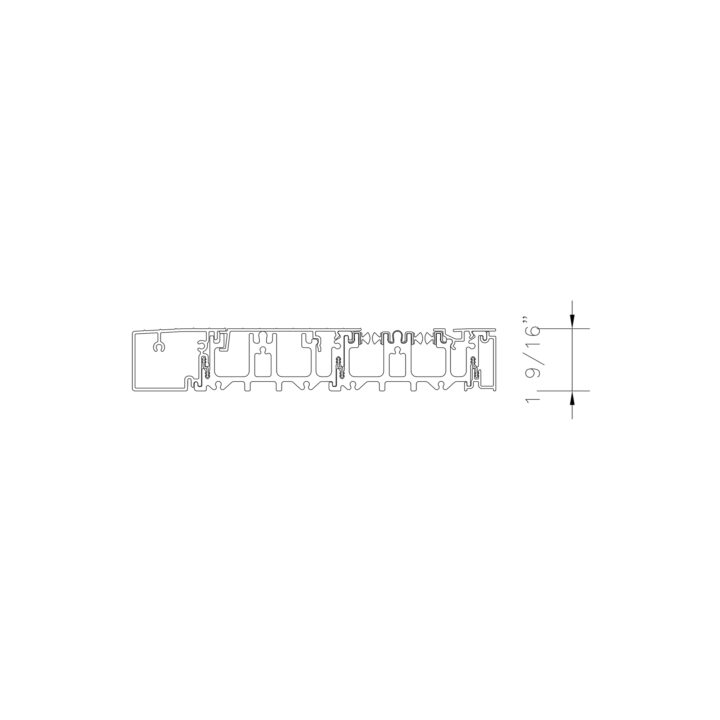

1-1/8

1-1/2

Glazing Stops

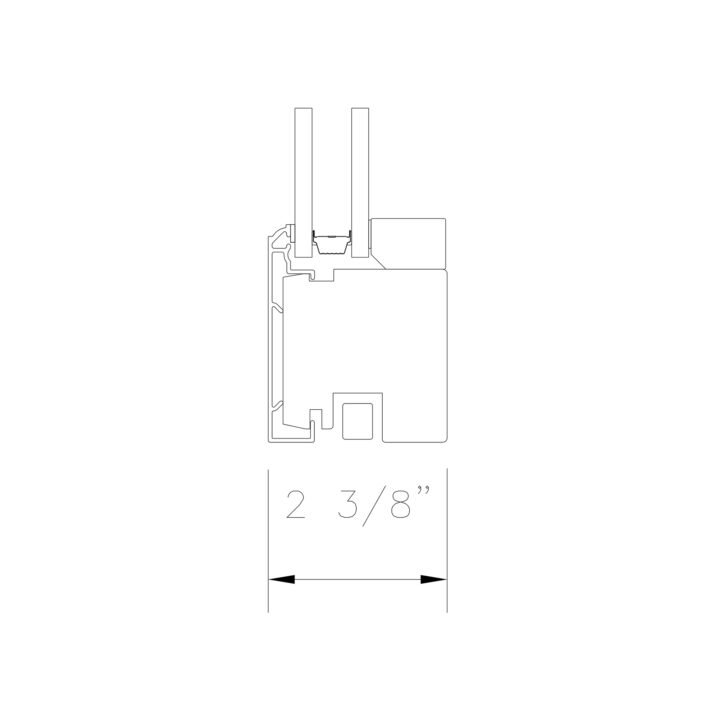

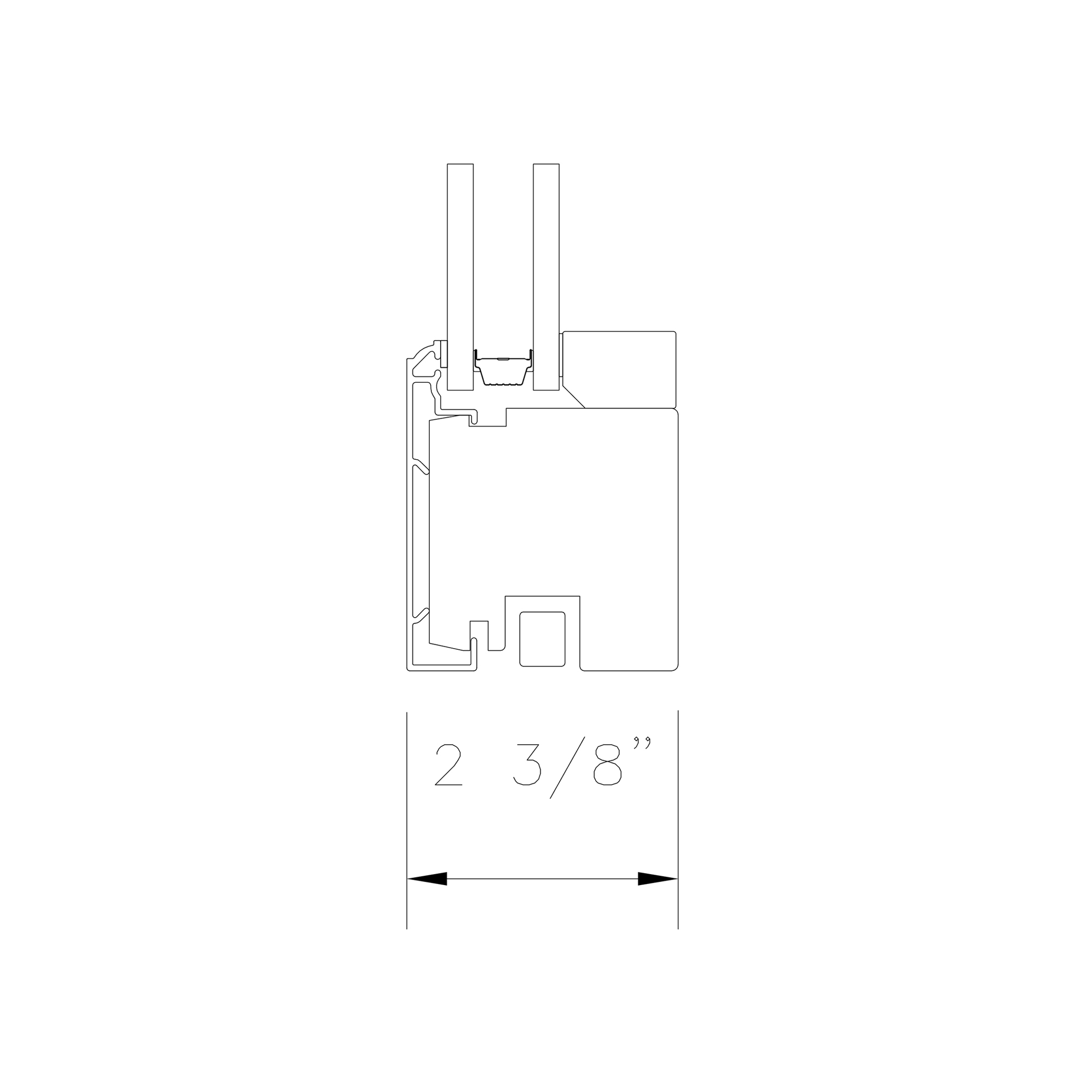

Square (Dual Glazed)

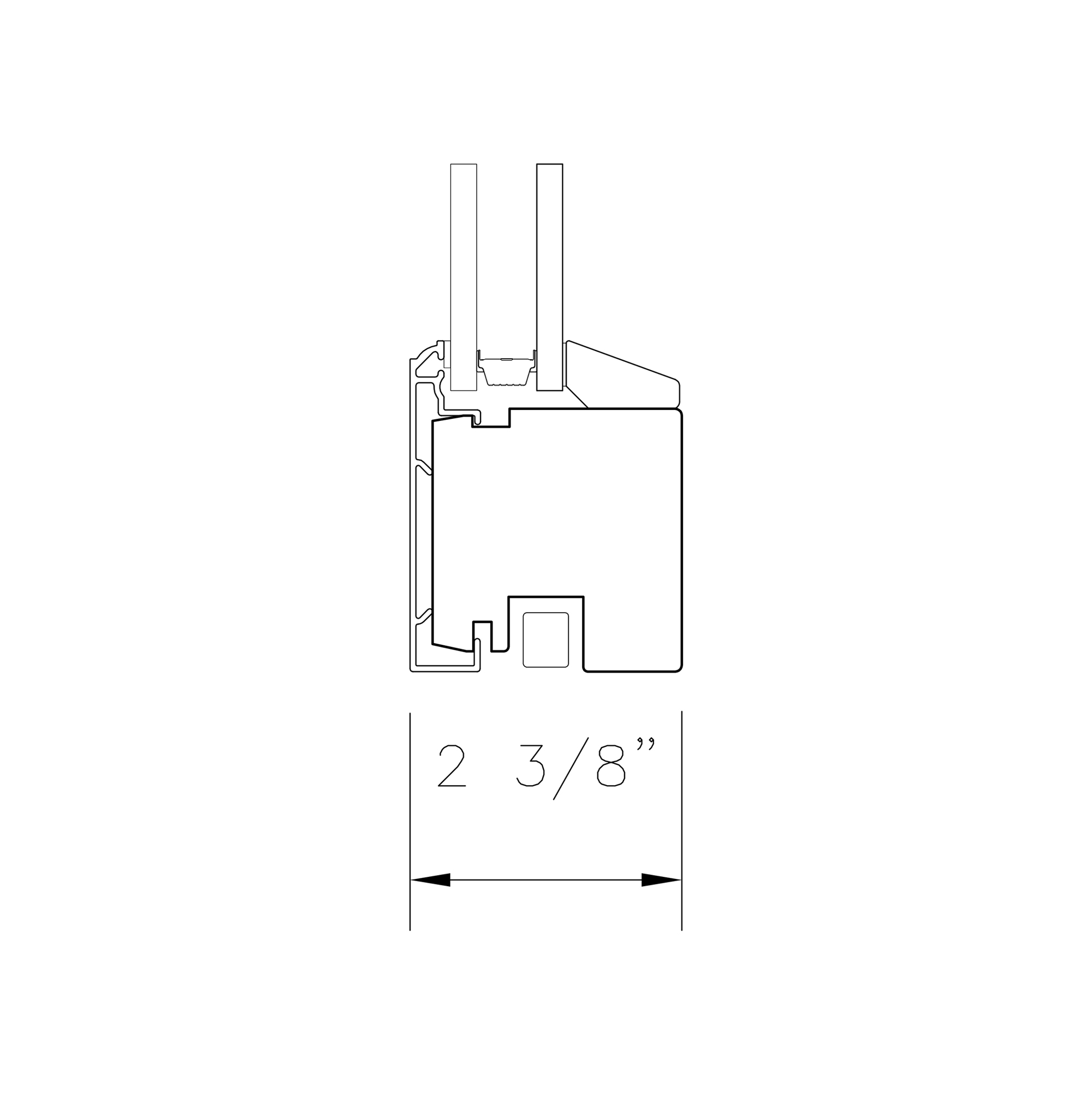

Putty (Dual Glazed)

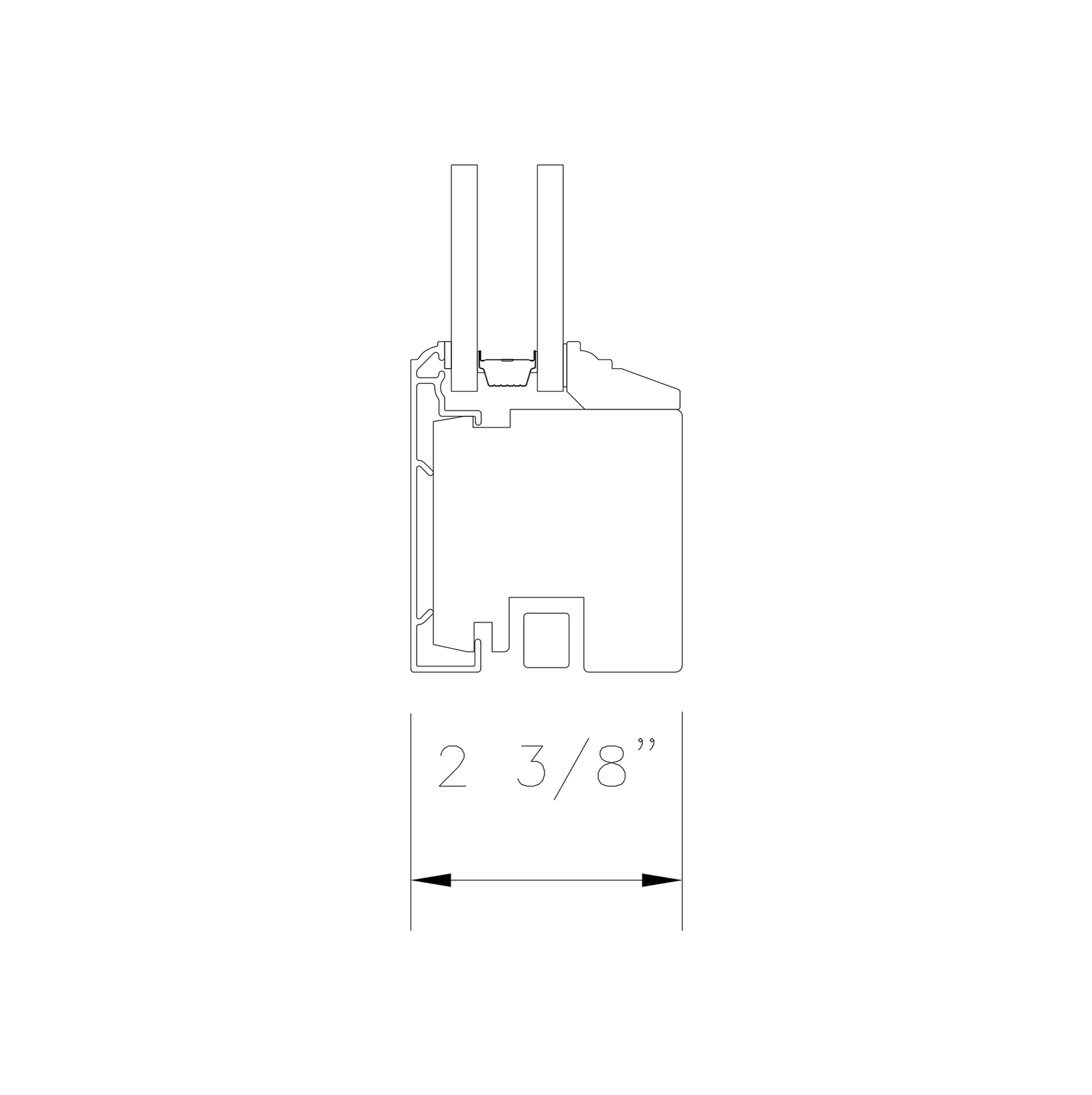

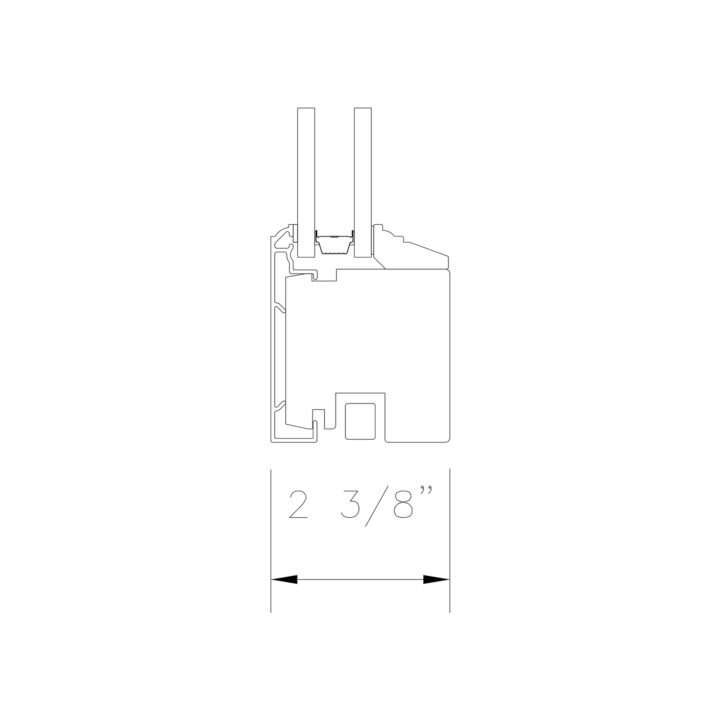

Ogee (Dual Glazed)

Square (Triple Glazed)

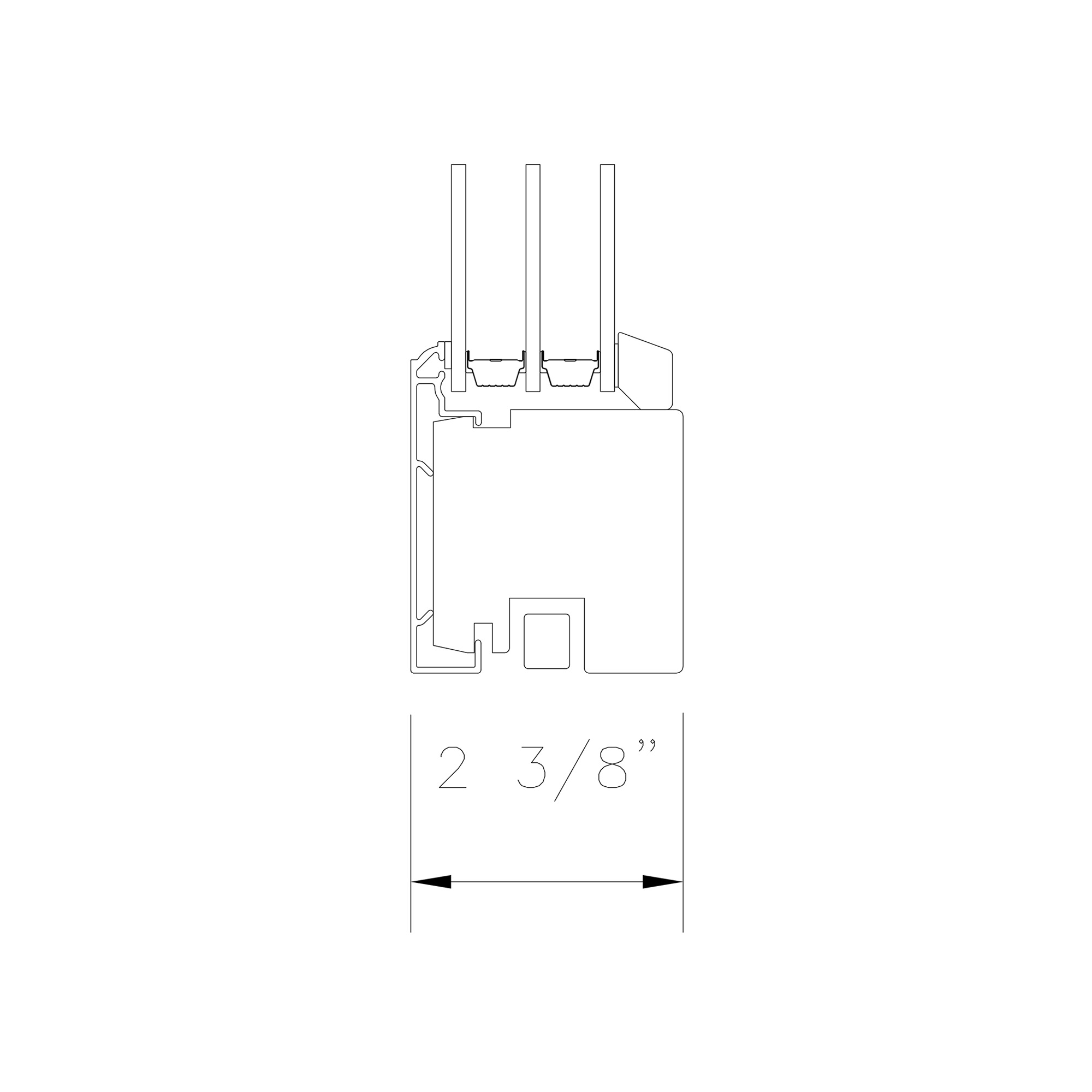

Putty (Triple Glazed)

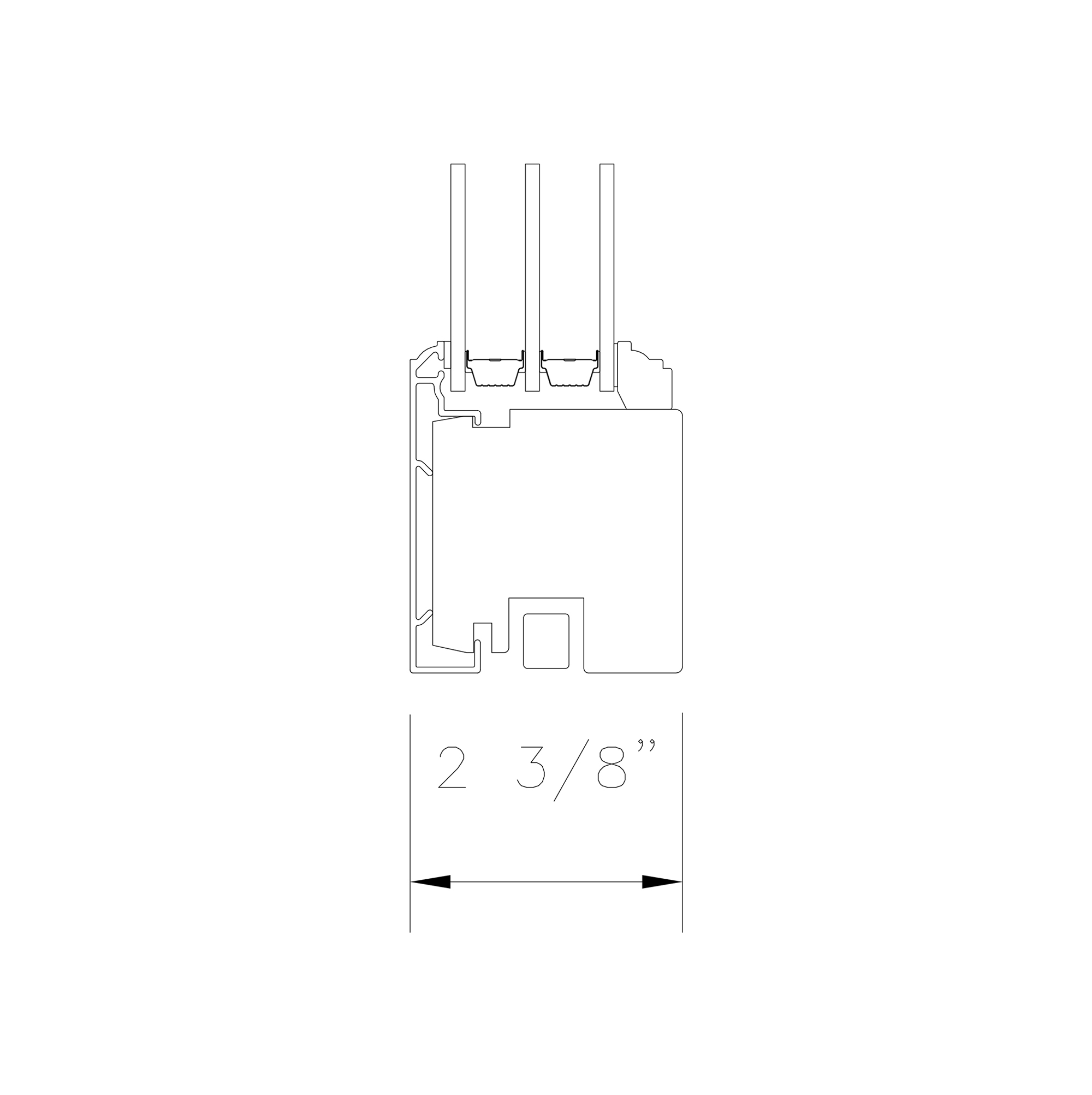

Ogee (Triple Glazed)

02 - Stacking

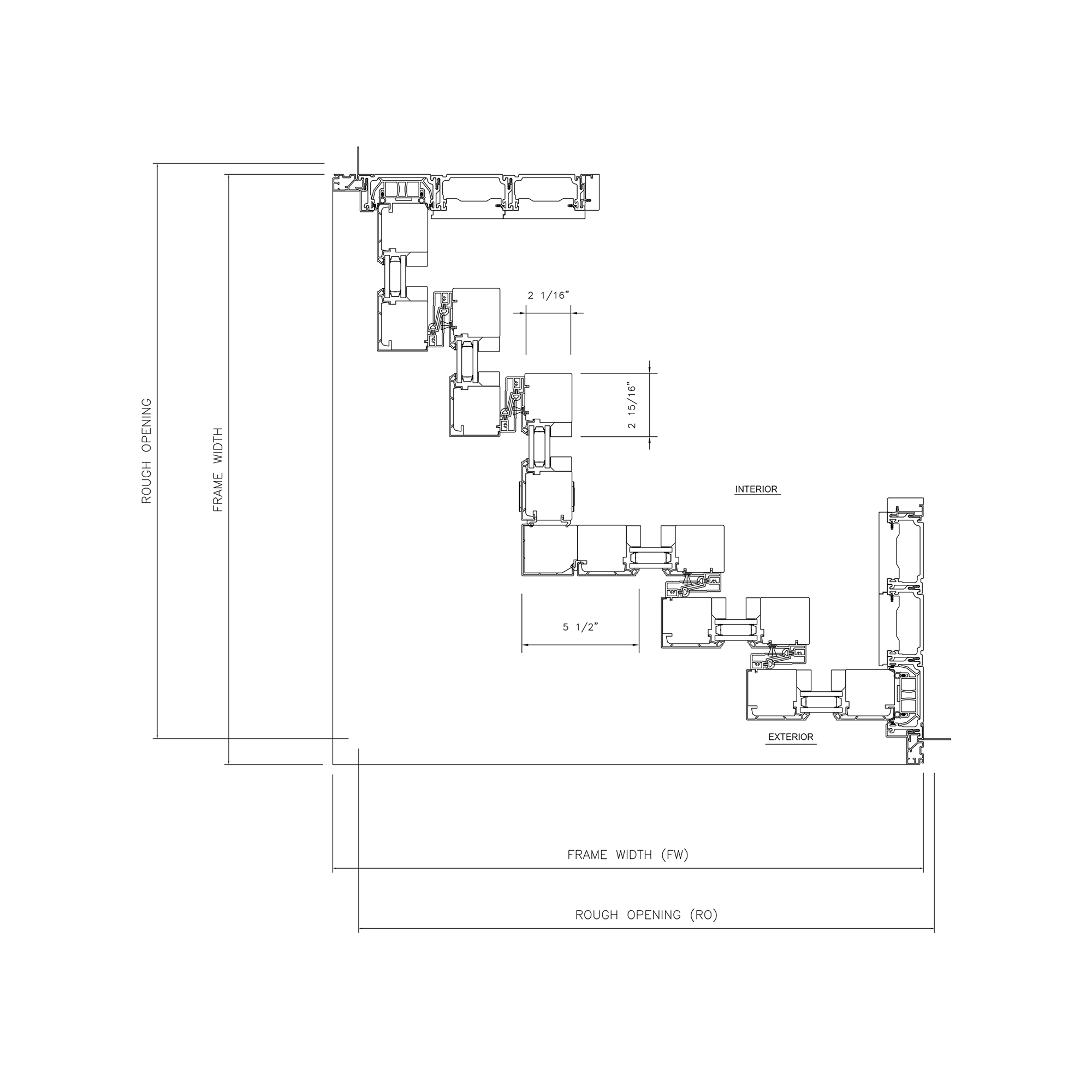

Stacking Multislide

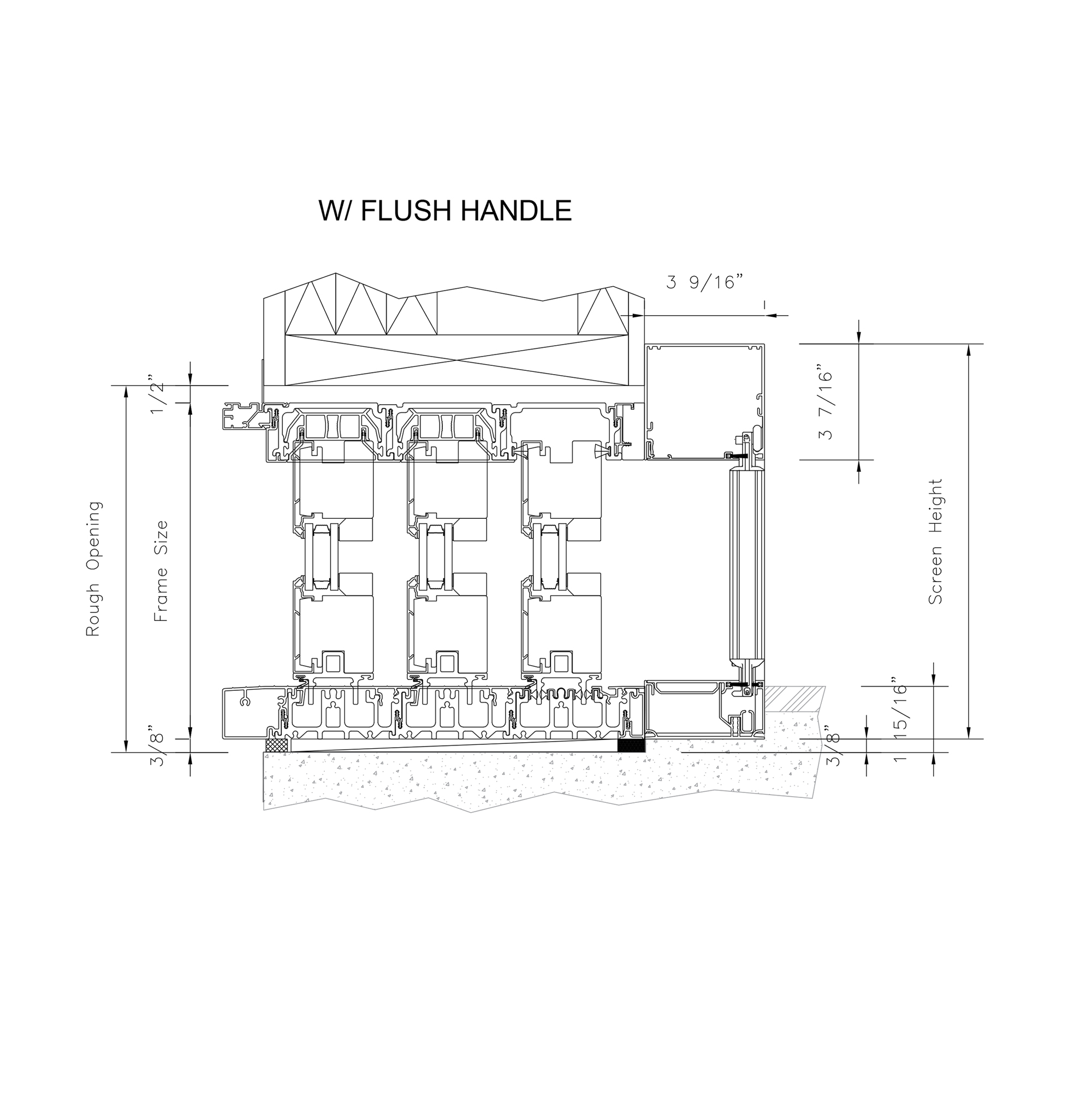

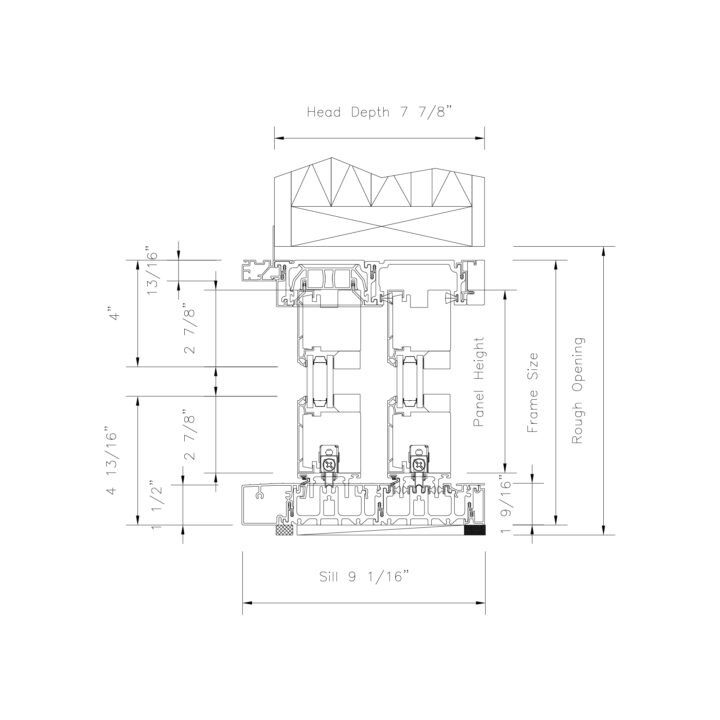

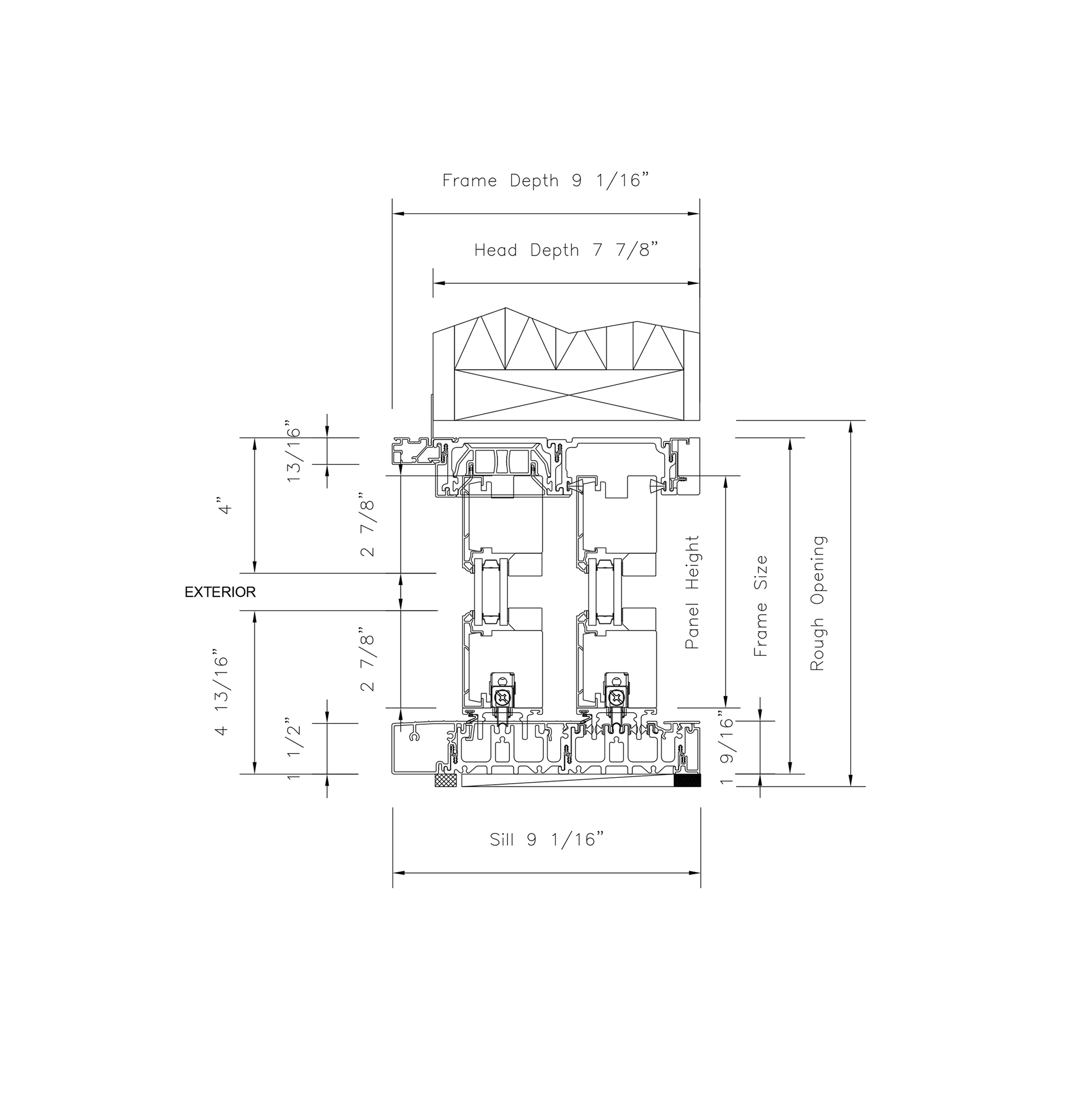

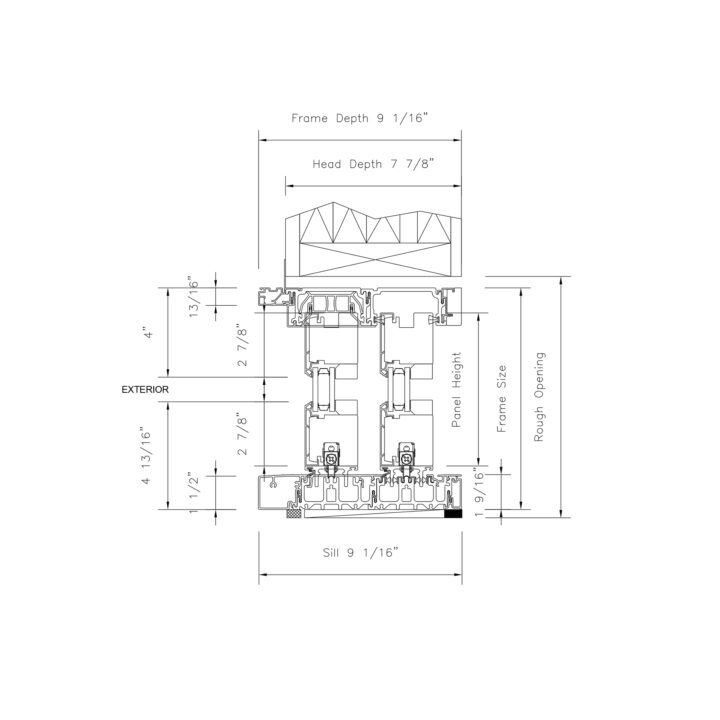

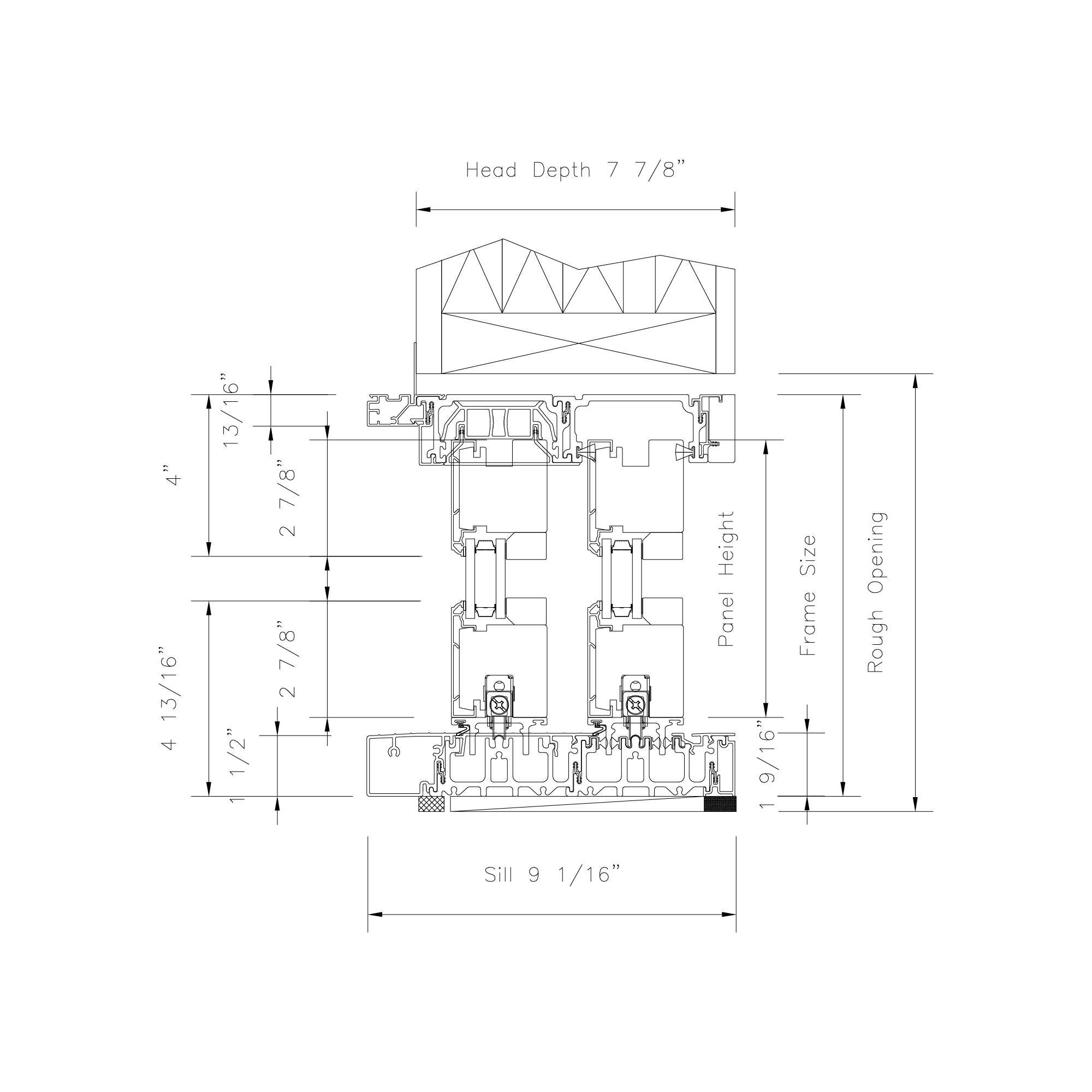

Metal Clad - Narrow Stile (OX)

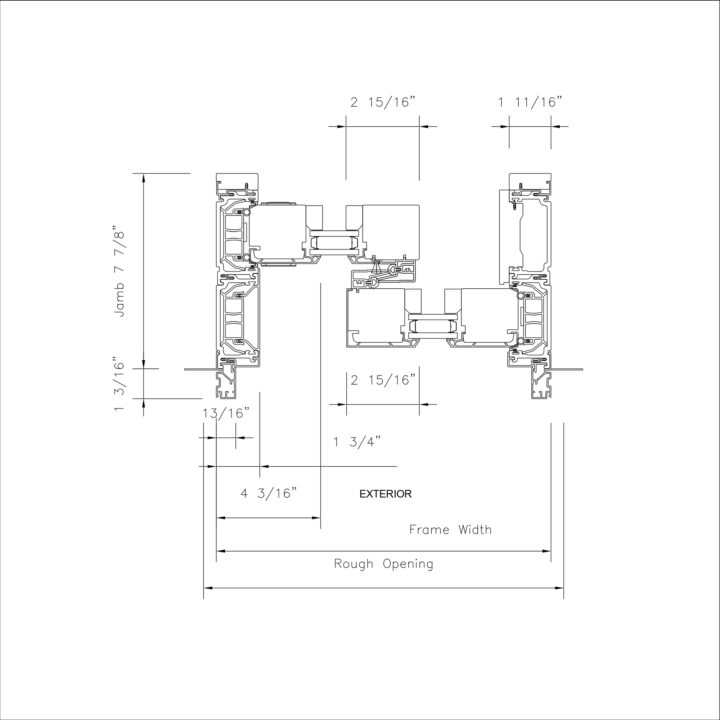

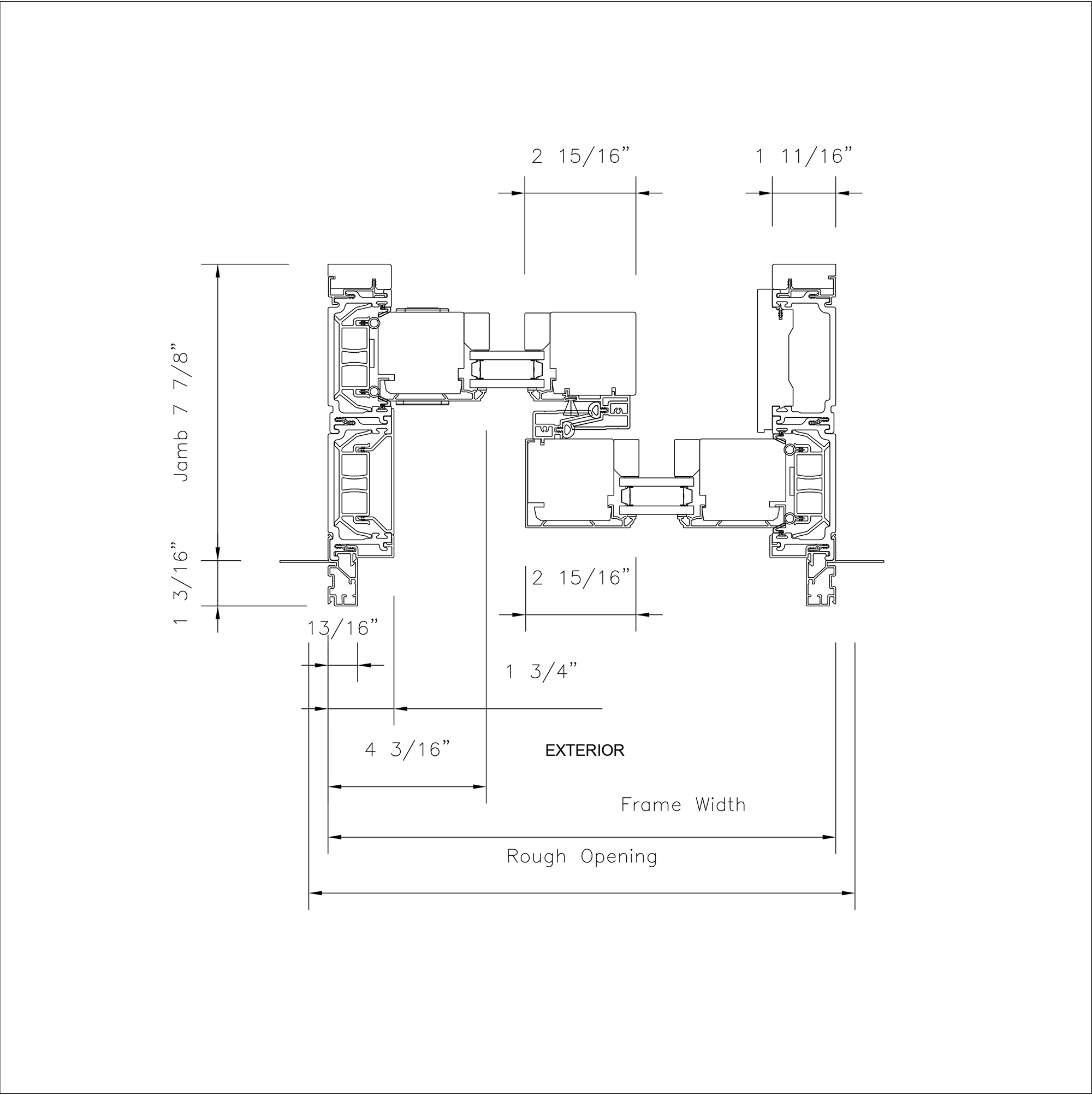

Metal Clad - Narrow Stile (OX) Plan View

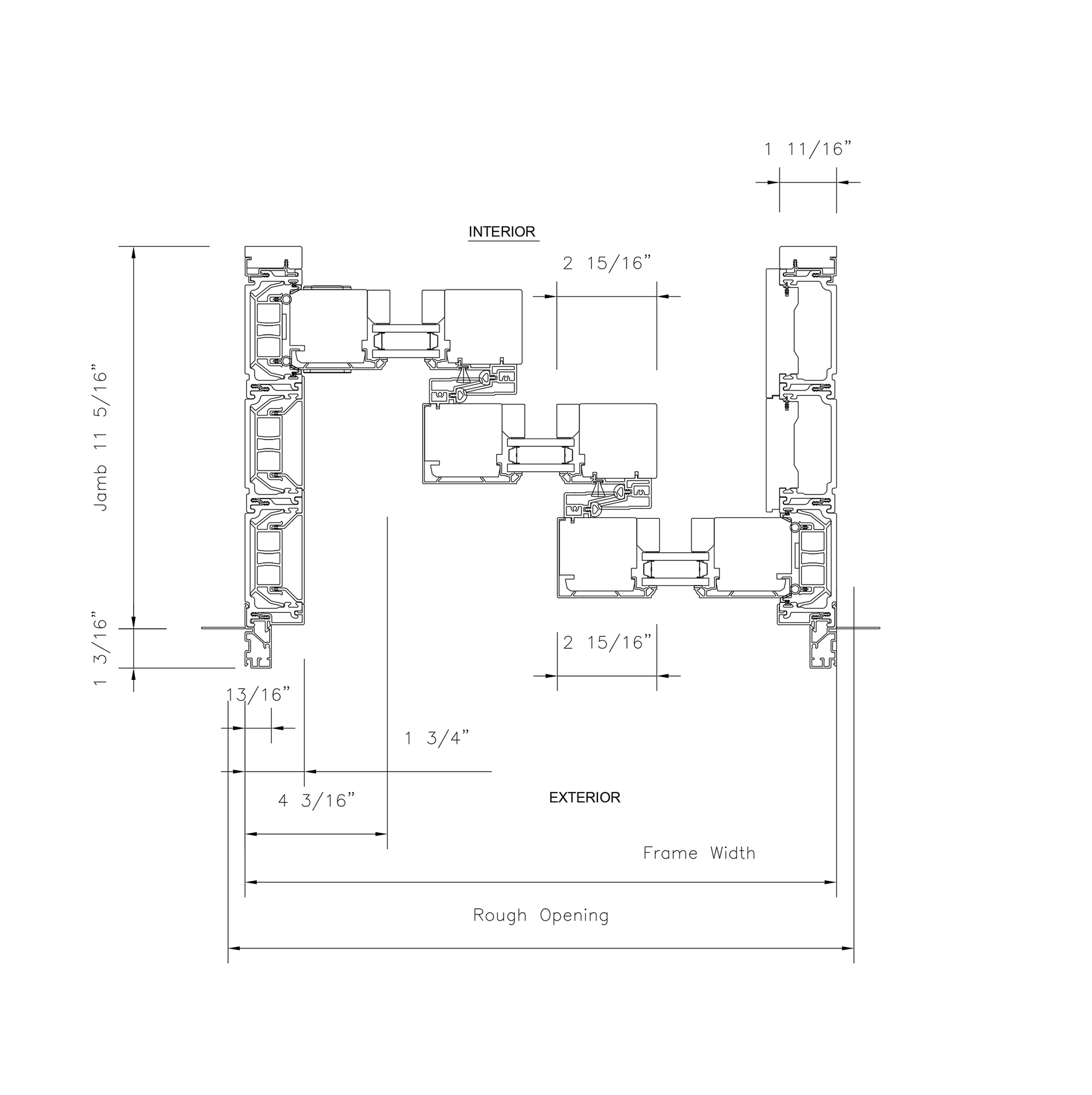

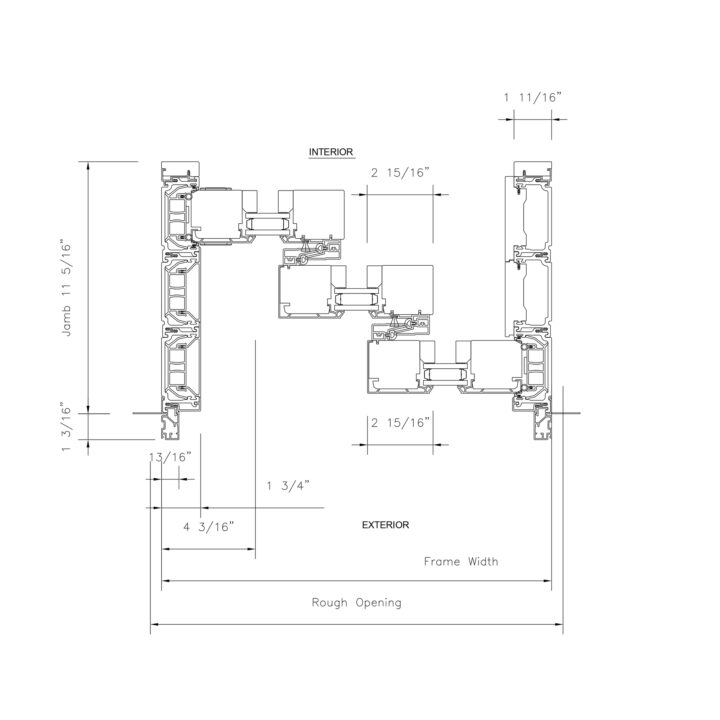

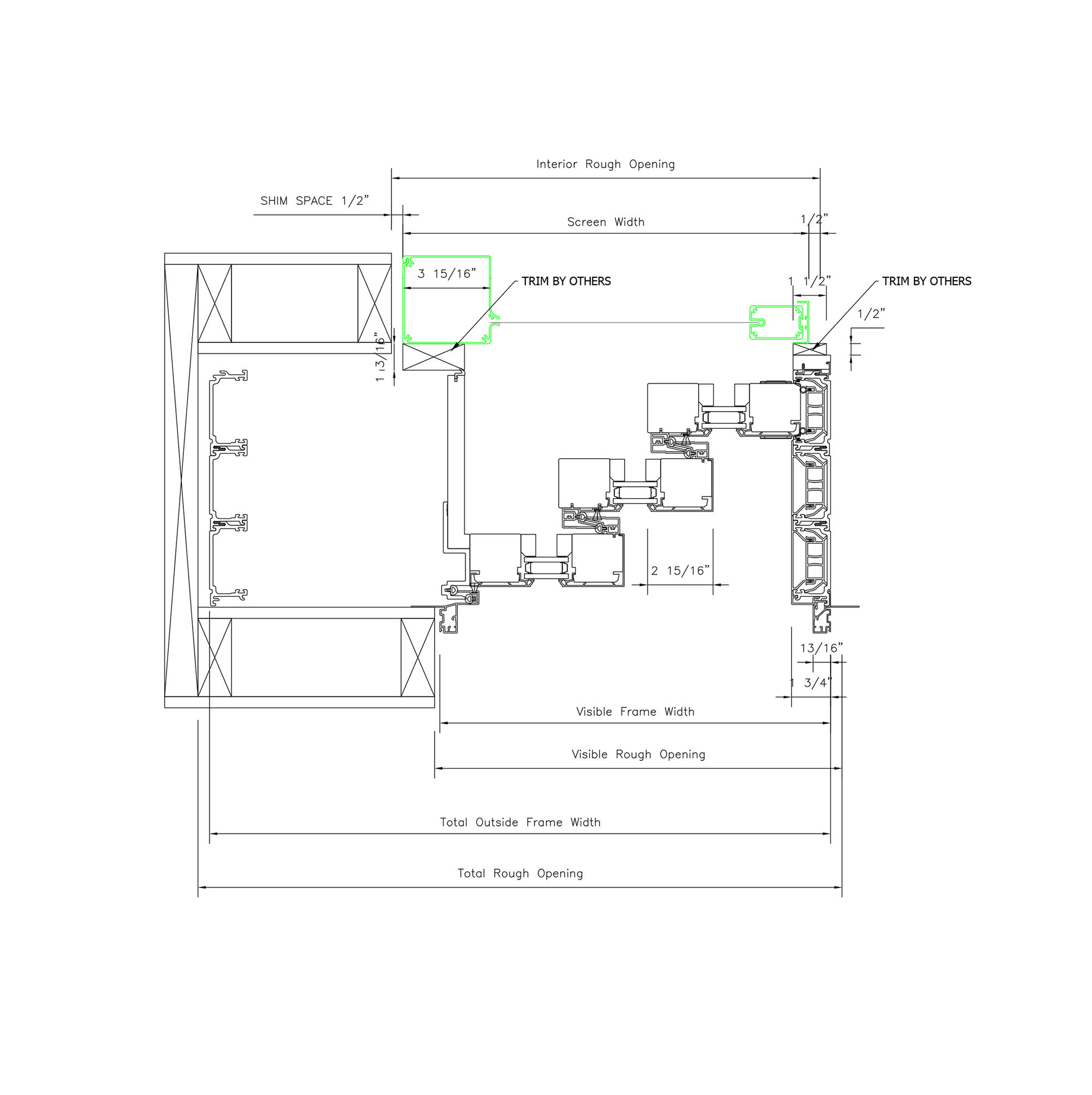

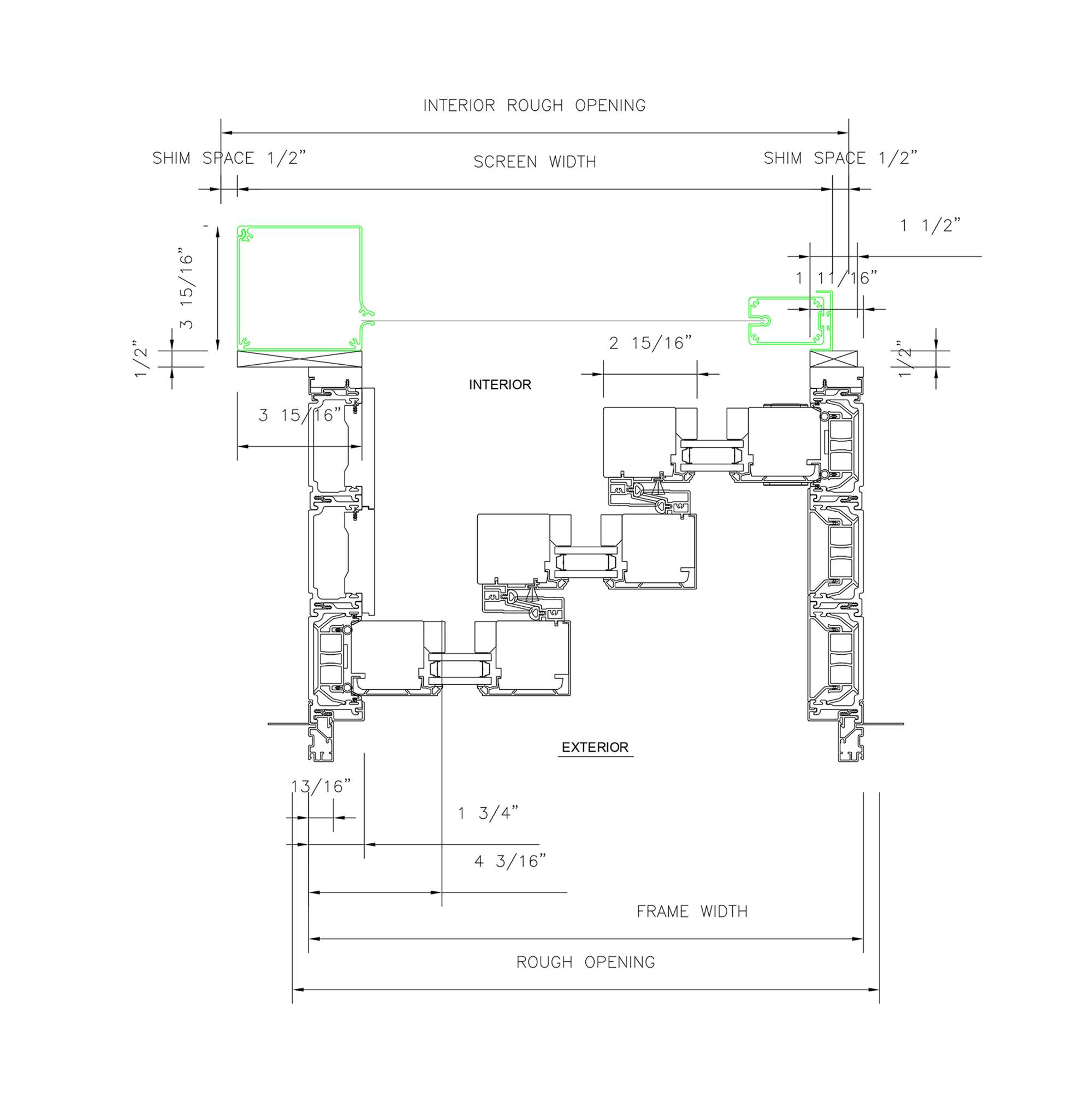

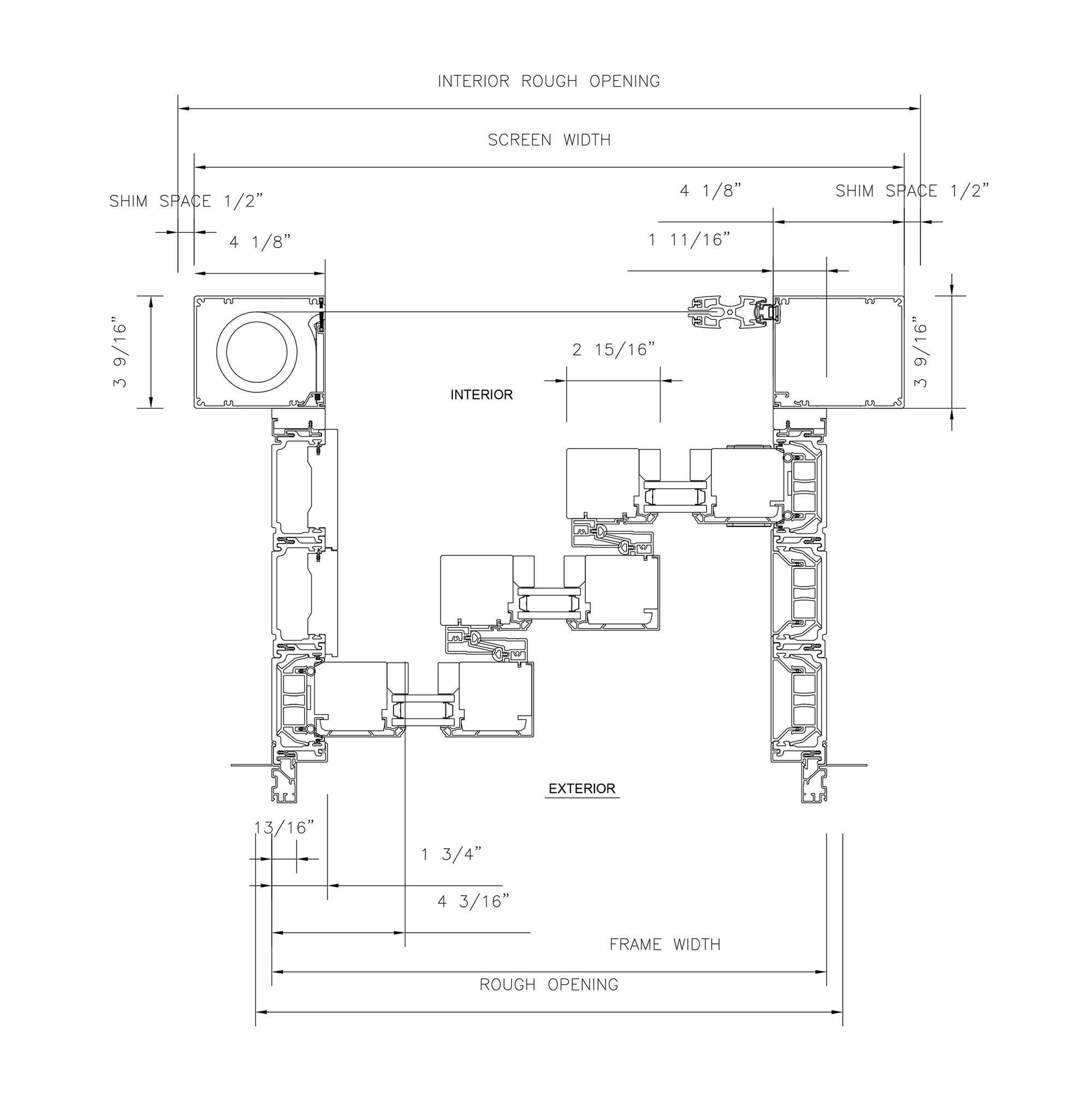

Metal Clad - Wide Stile (OXX) Plan View

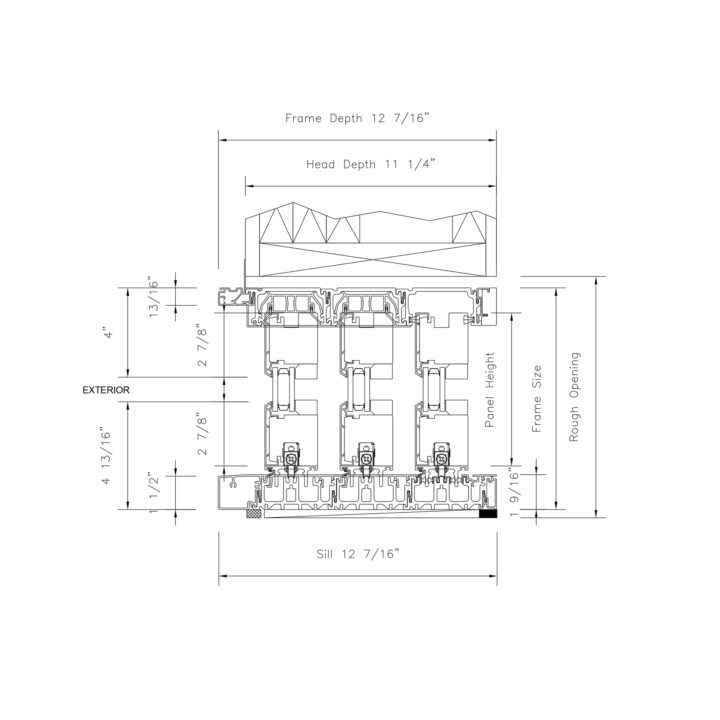

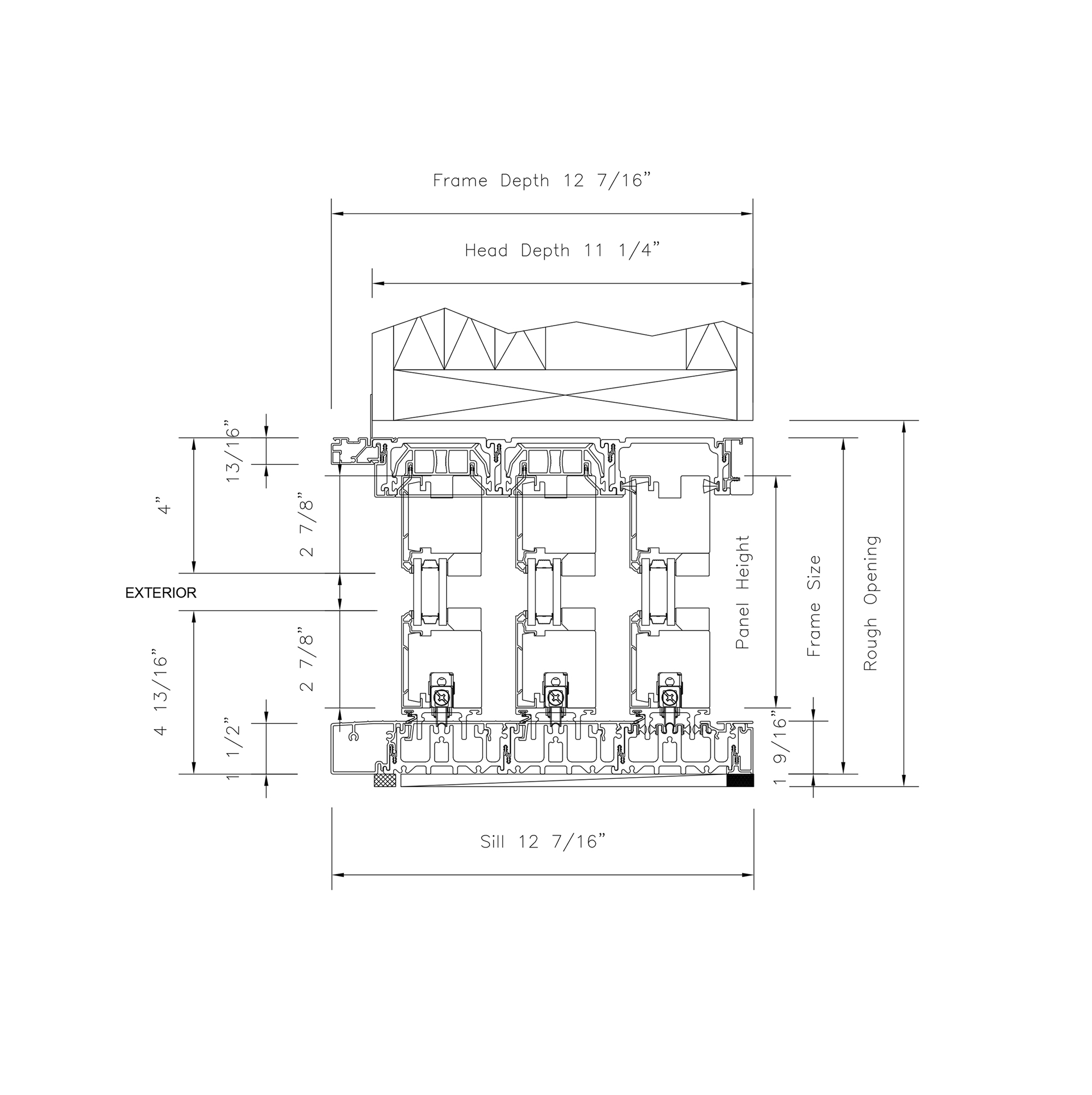

Metal Clad - Wide Stile (OXX)

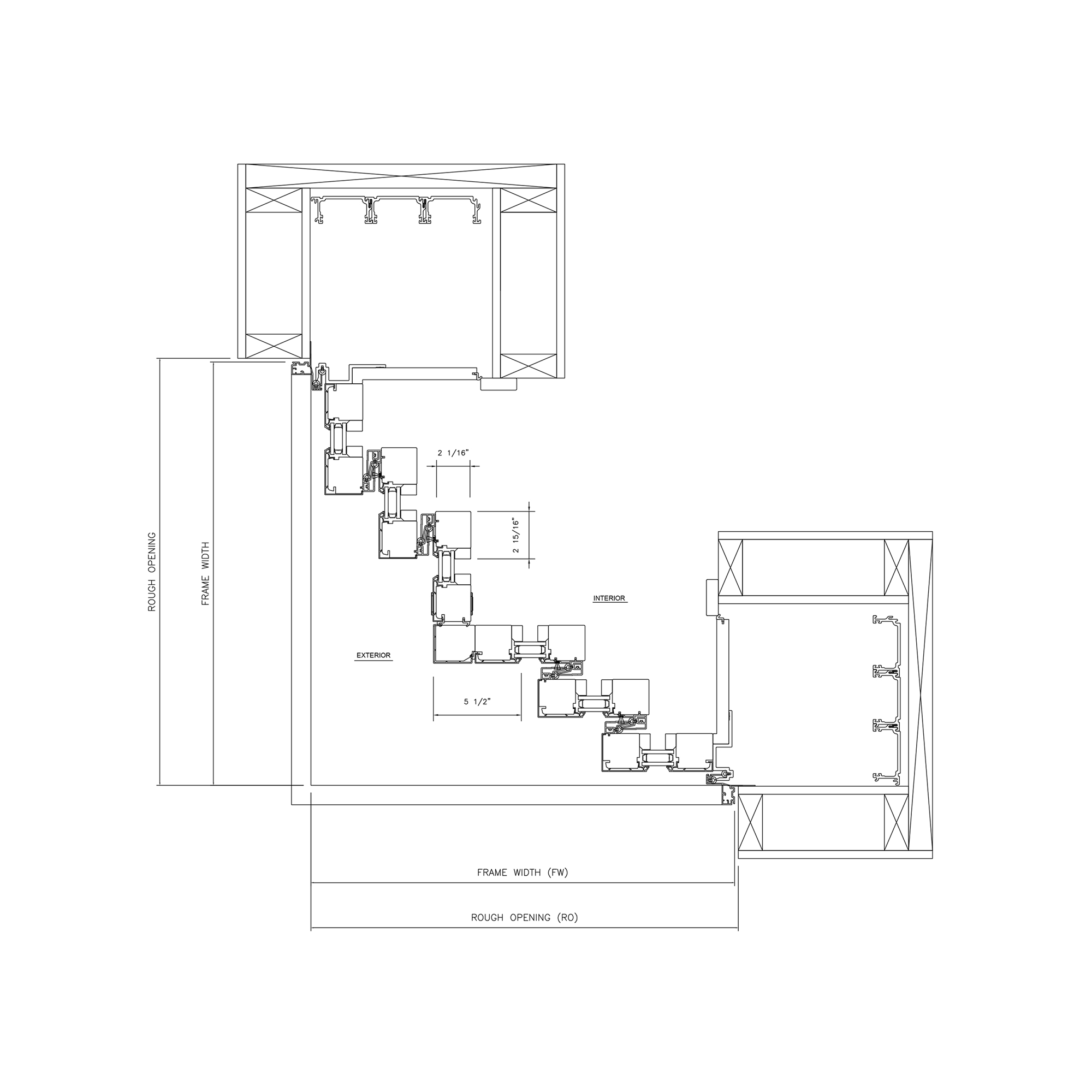

Narrow Stile - Stacking w/ Pocket

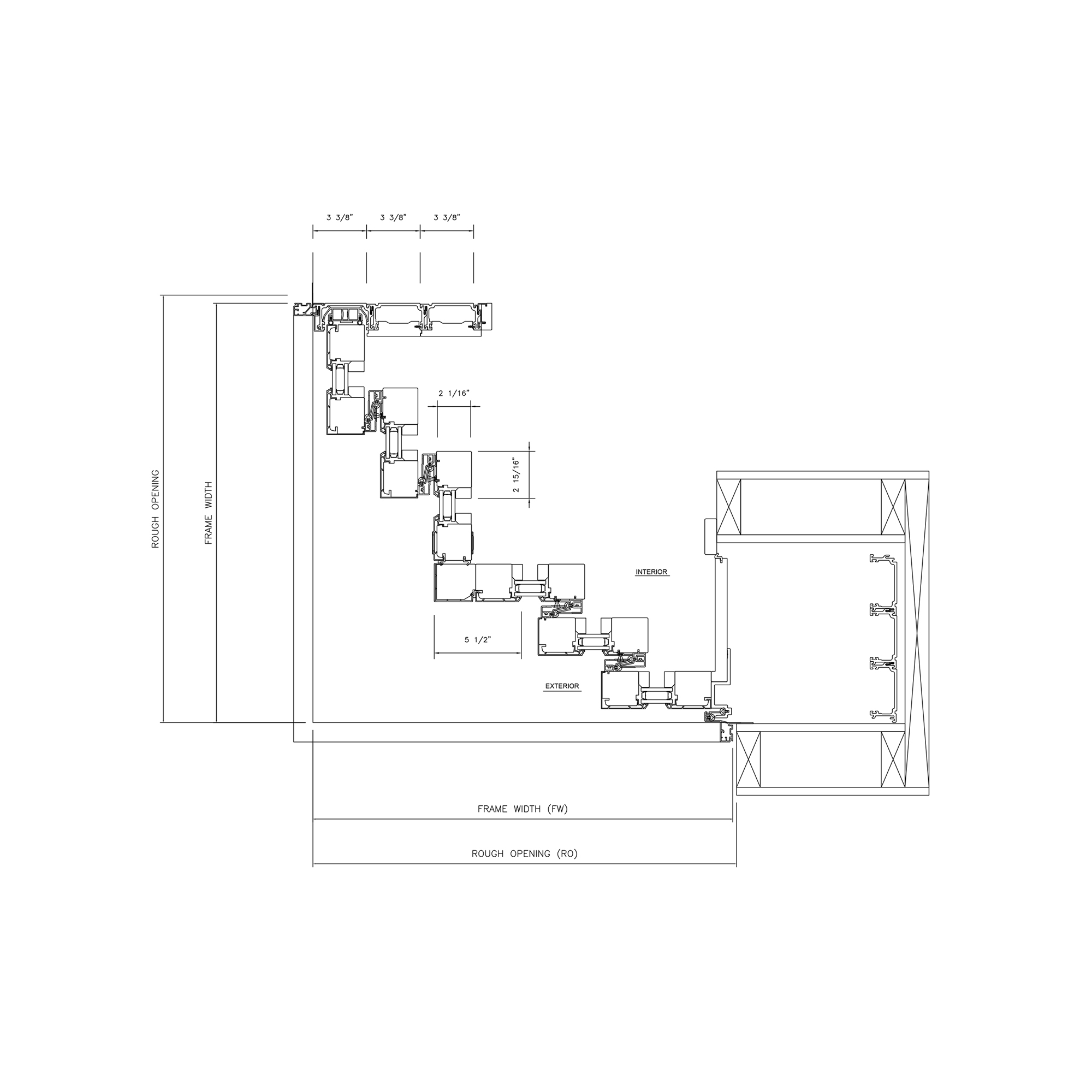

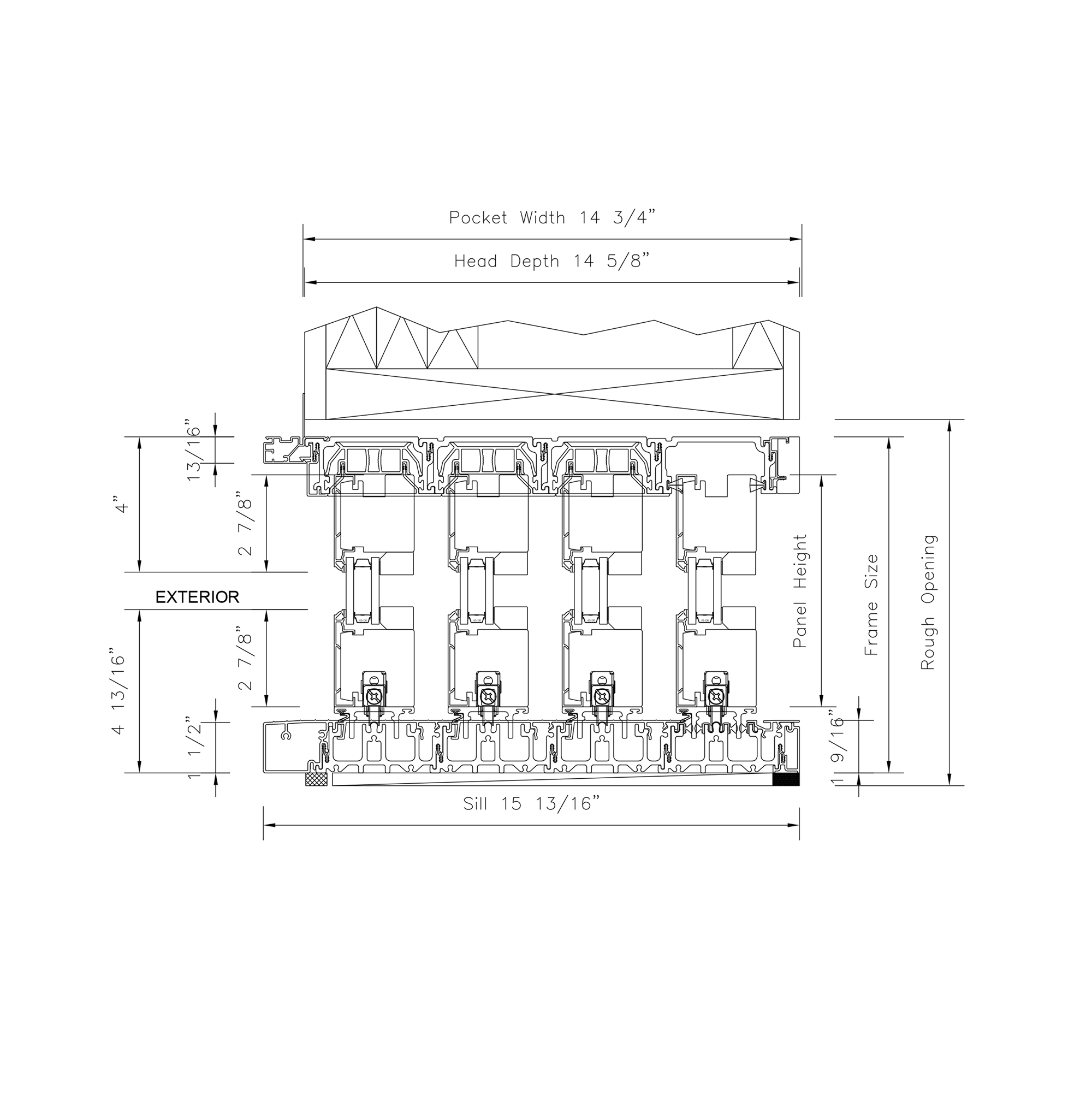

Metal Clad - Narrow Stile, PXXXX

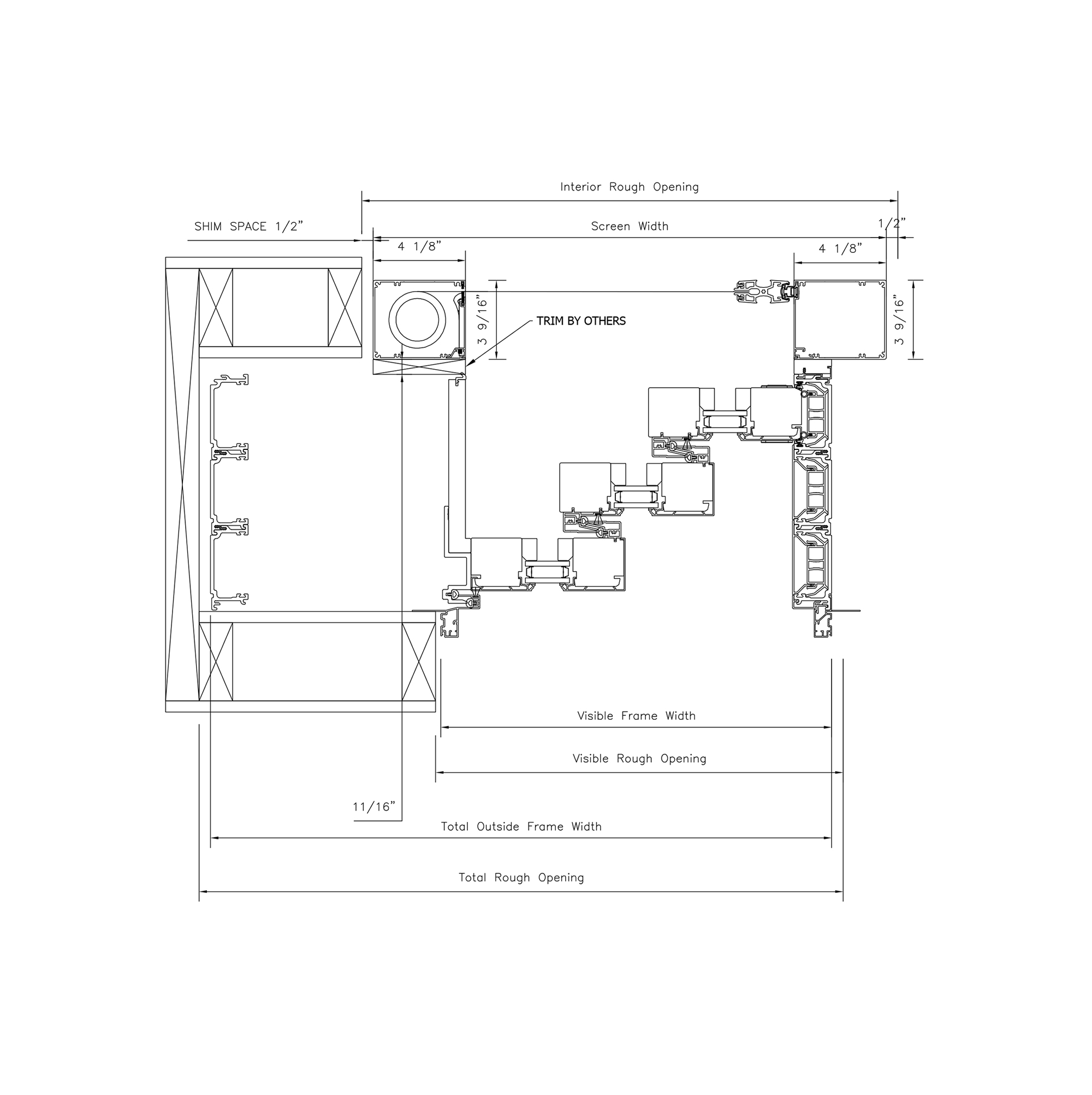

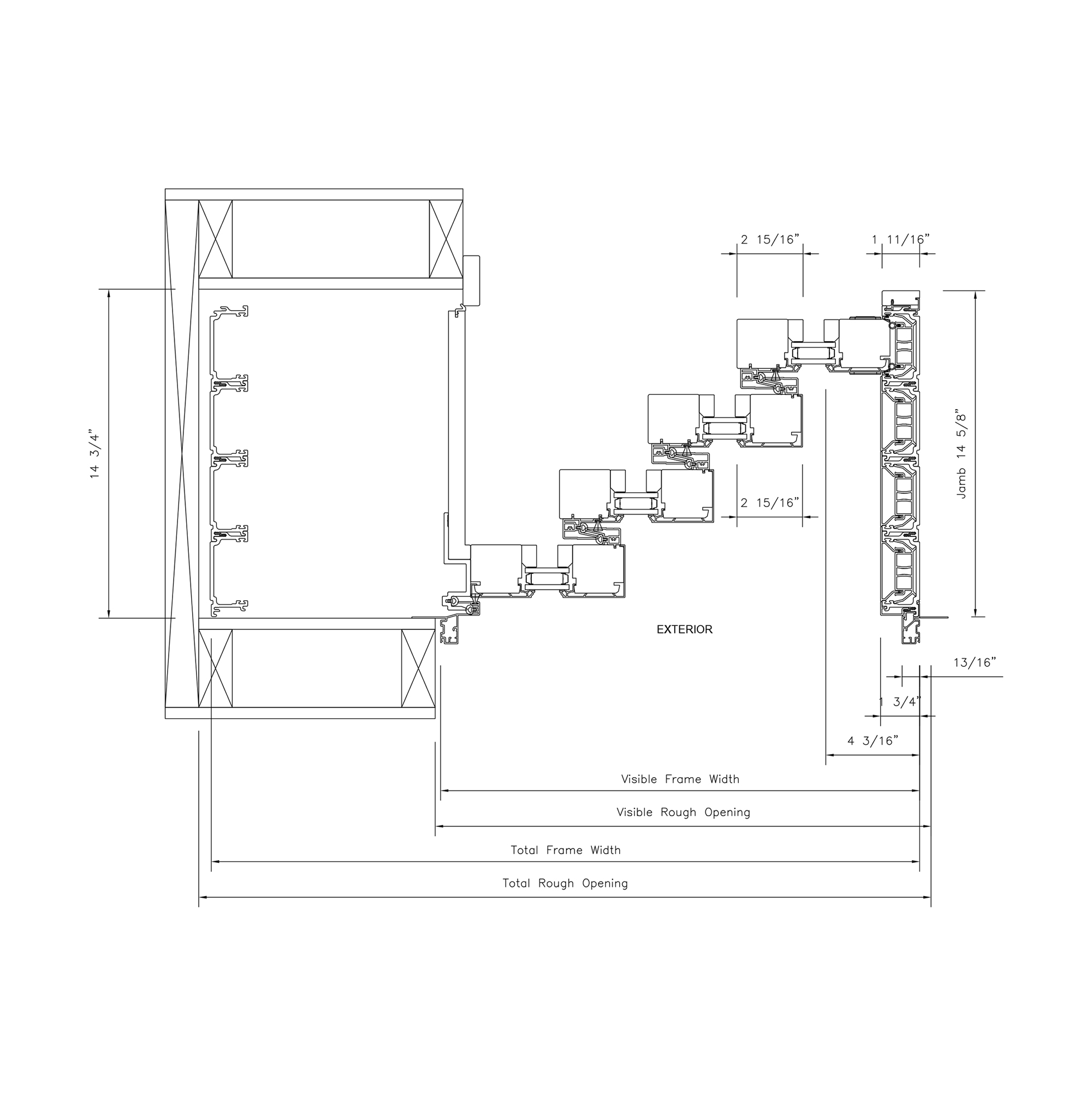

Metal Clad - Narrow Stile, PXXXX (Plan View)

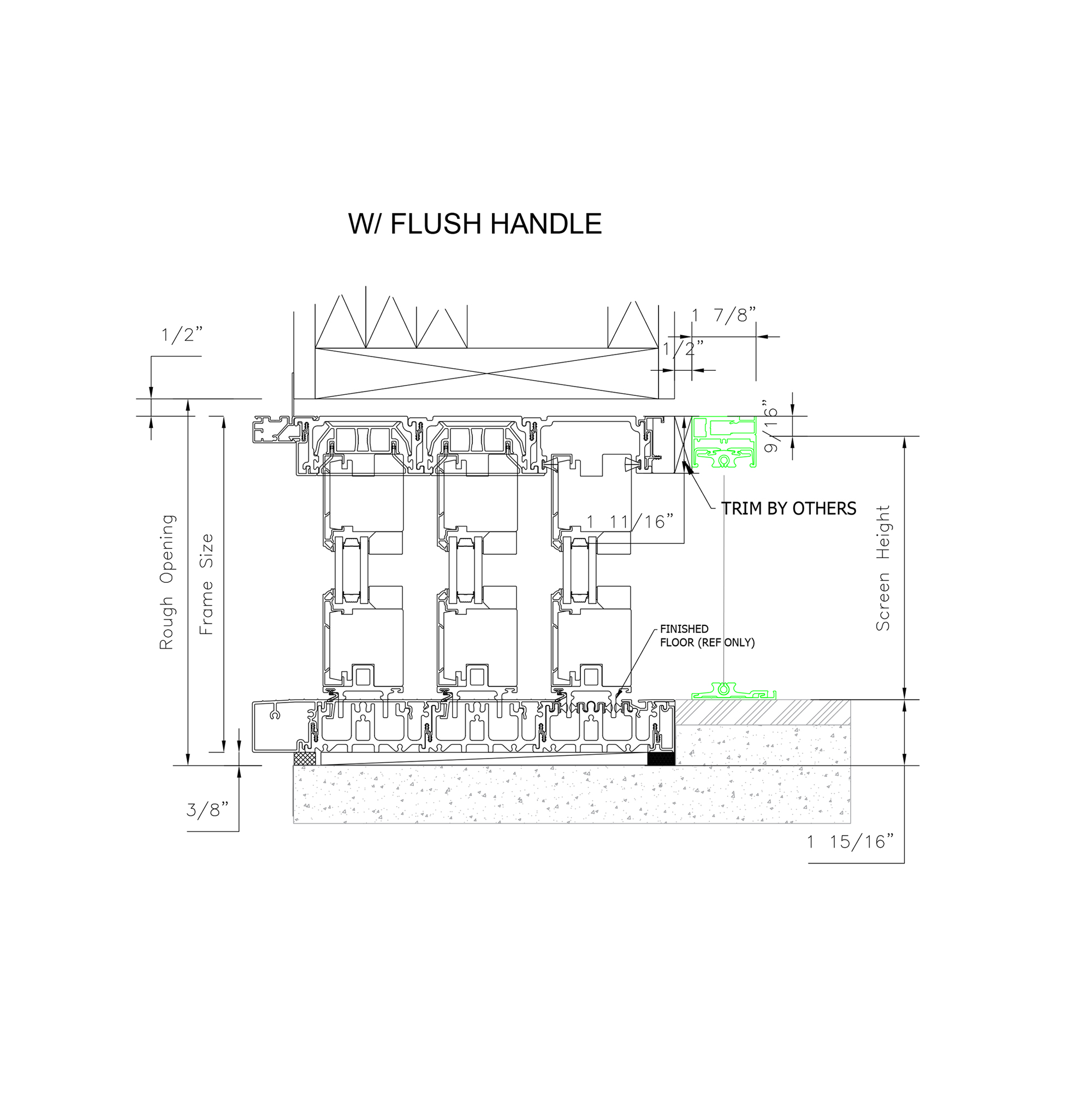

Metal Clad - Wide Stile, PX

Metal Clad - Wide Stile, PX (Plan View)

02 - BiParting

Bi-Parting

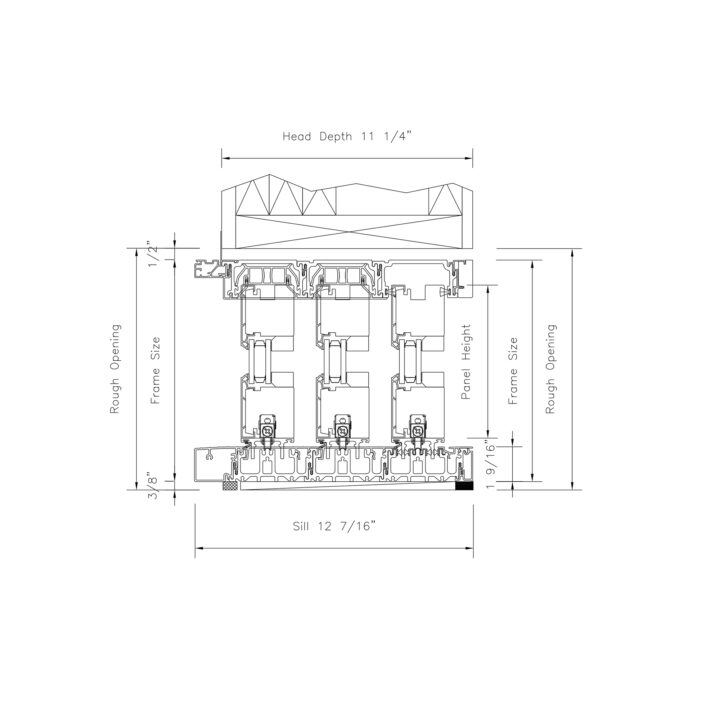

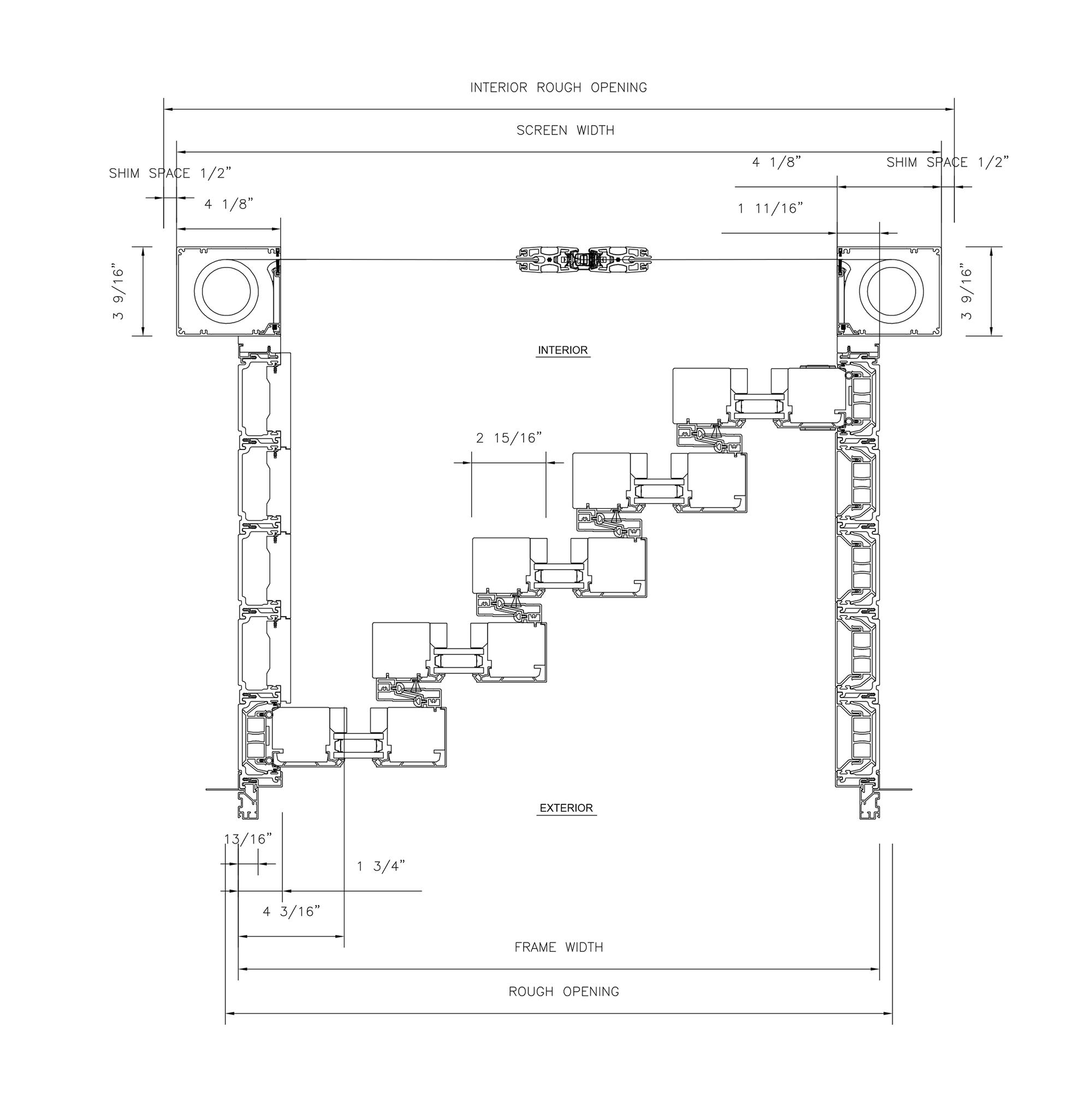

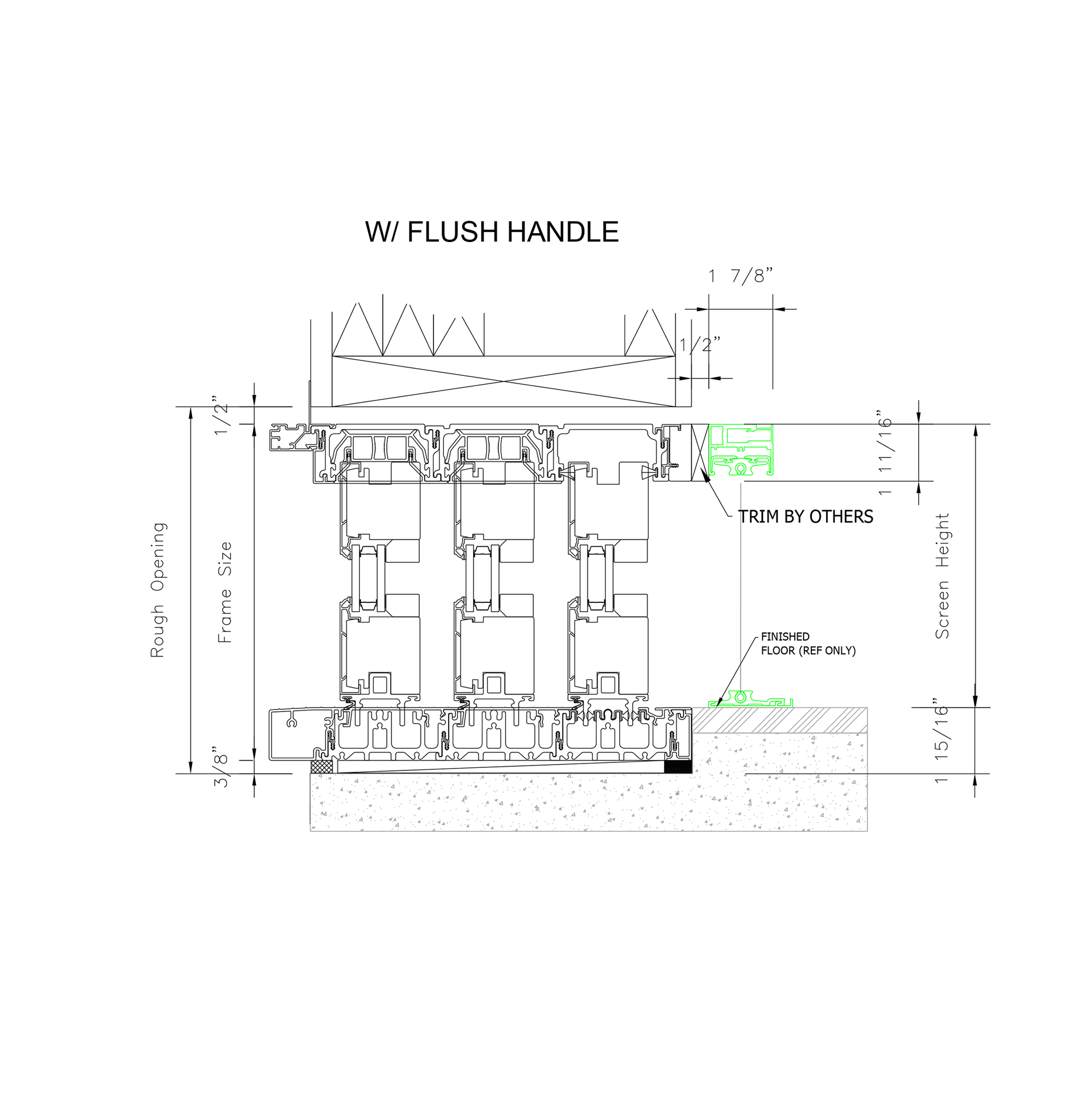

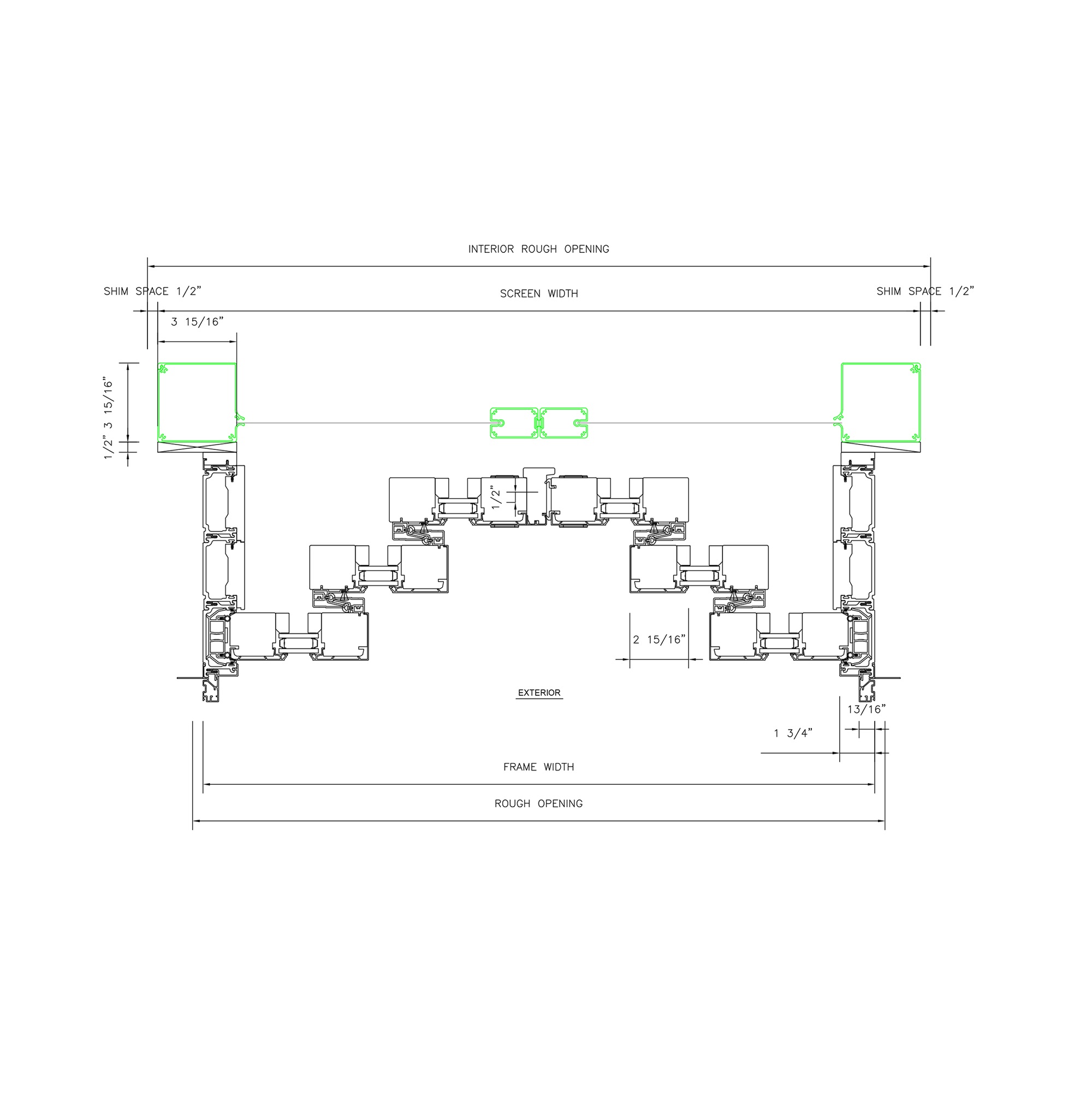

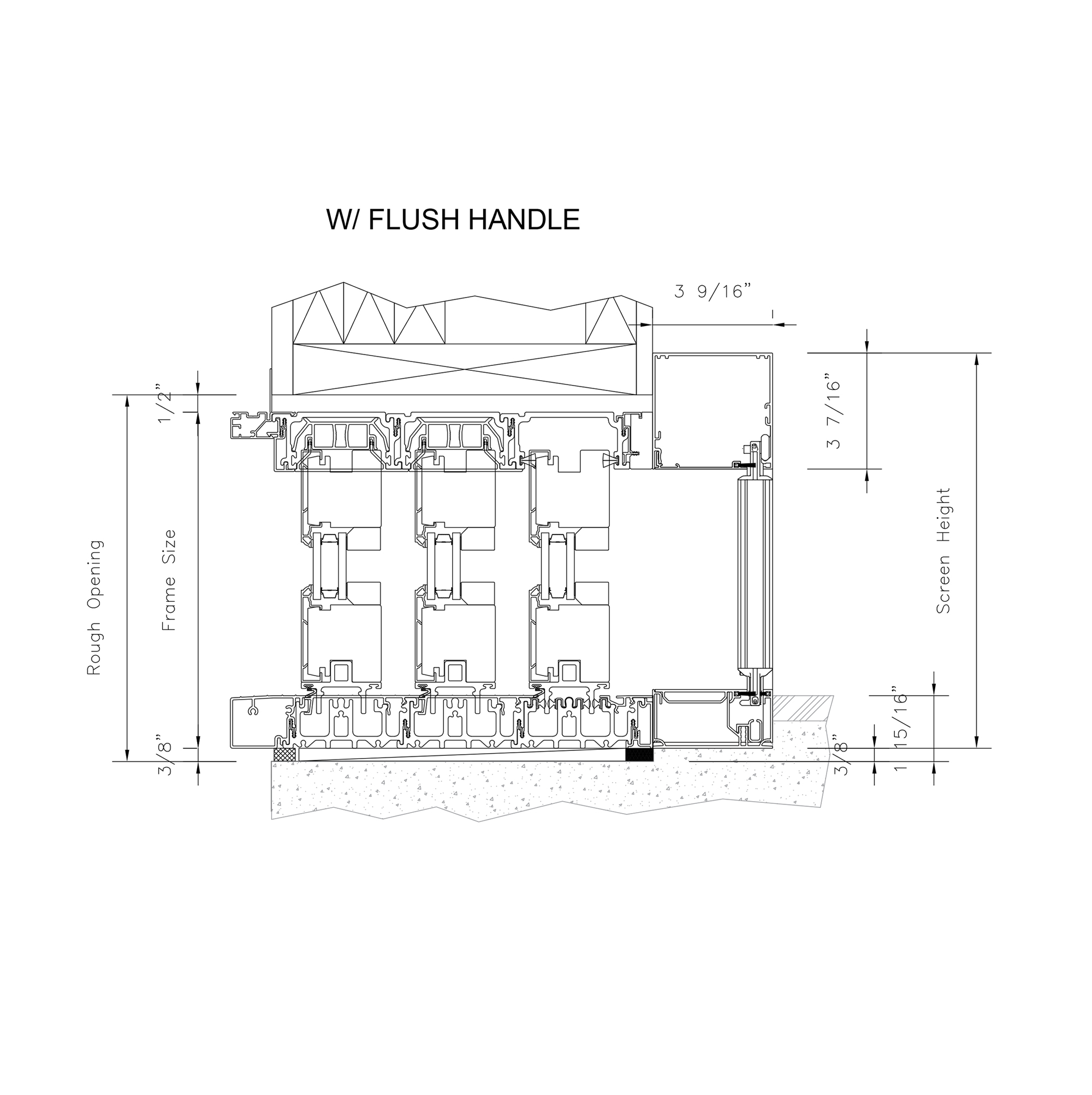

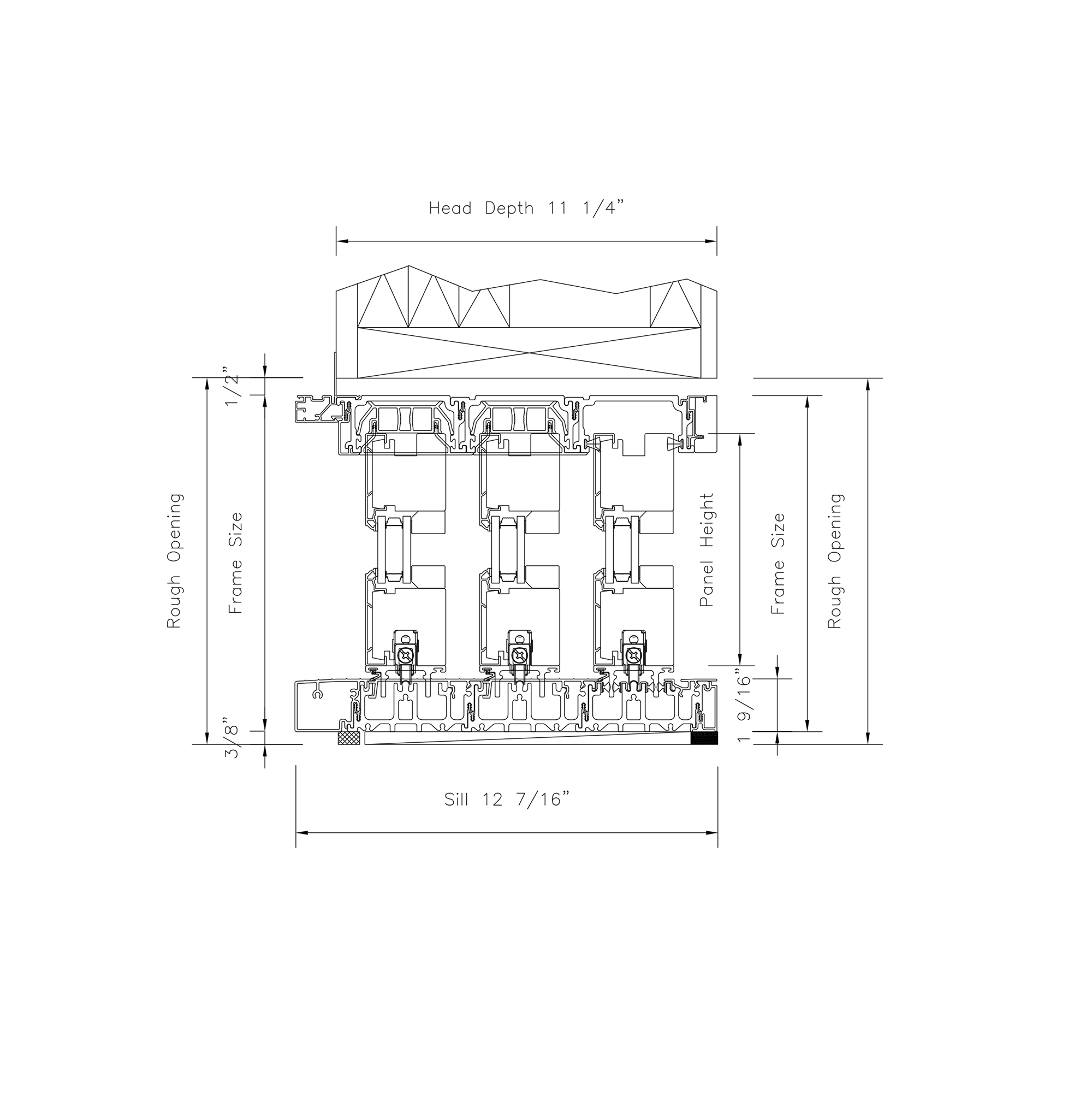

Metal Clad - Narrow Stile, OXX-XXO

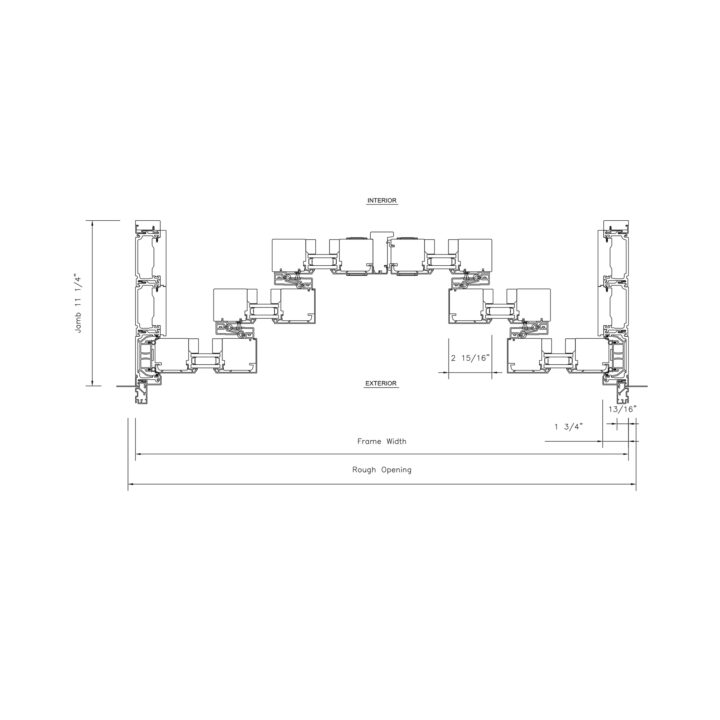

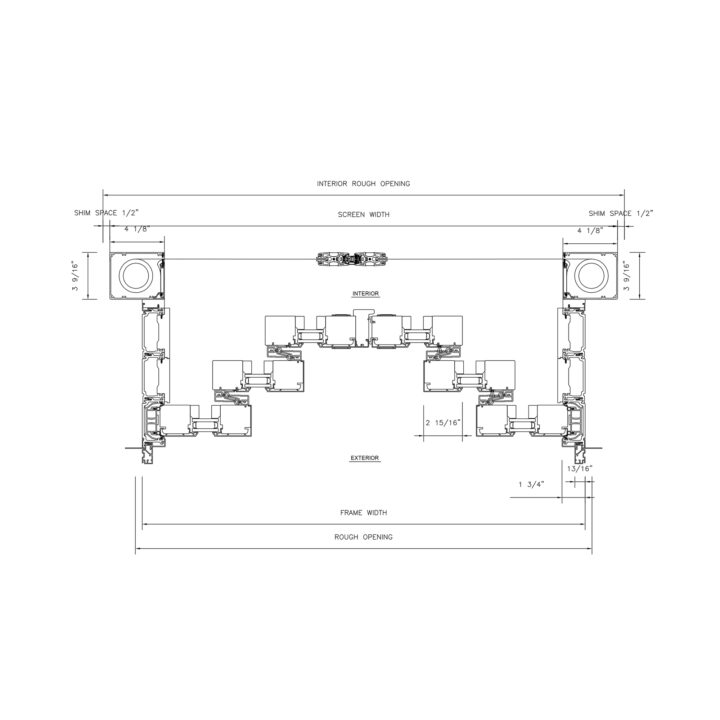

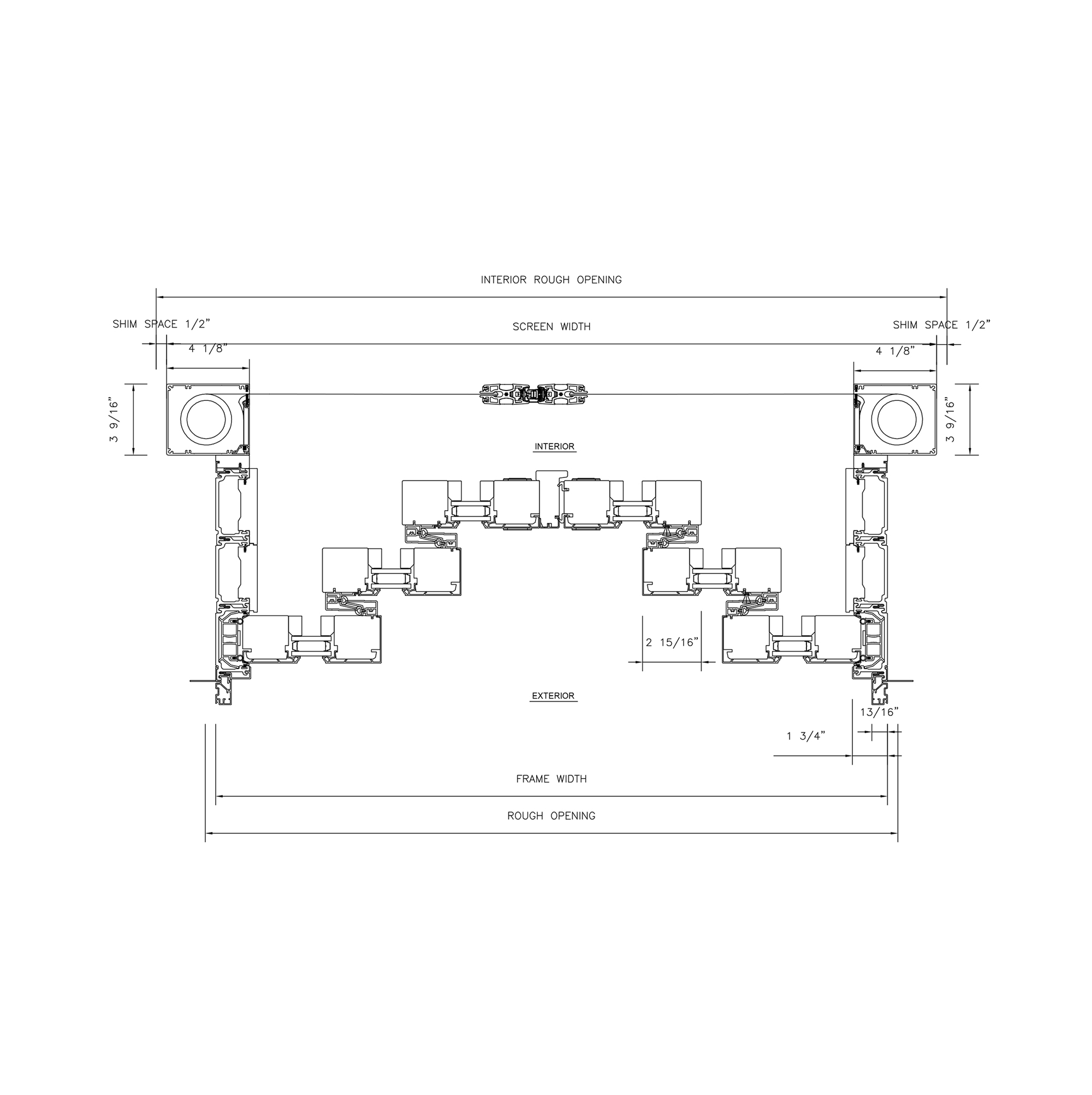

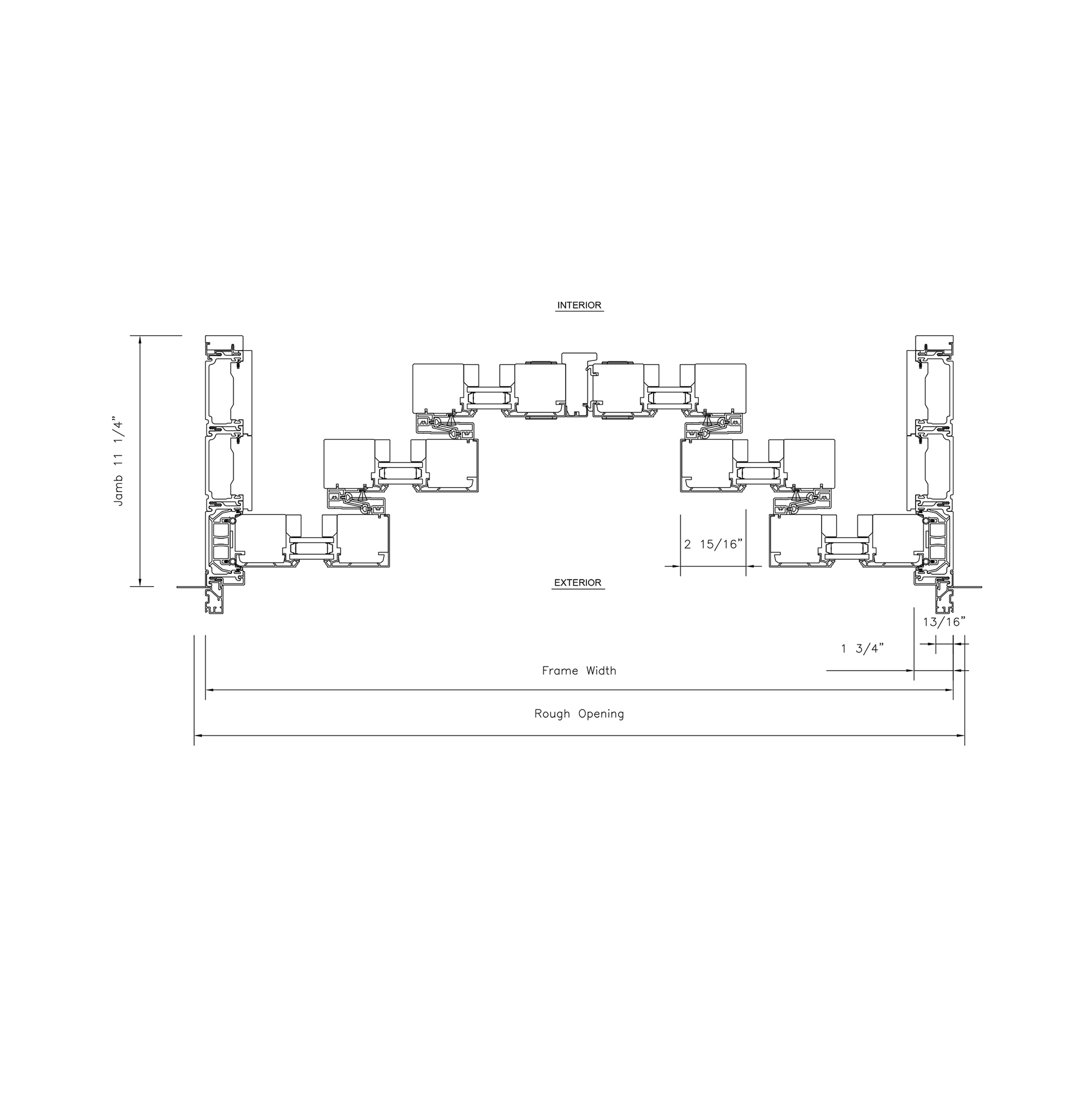

Metal Clad - Narrow Stile, OXX-XXO (Plan View)

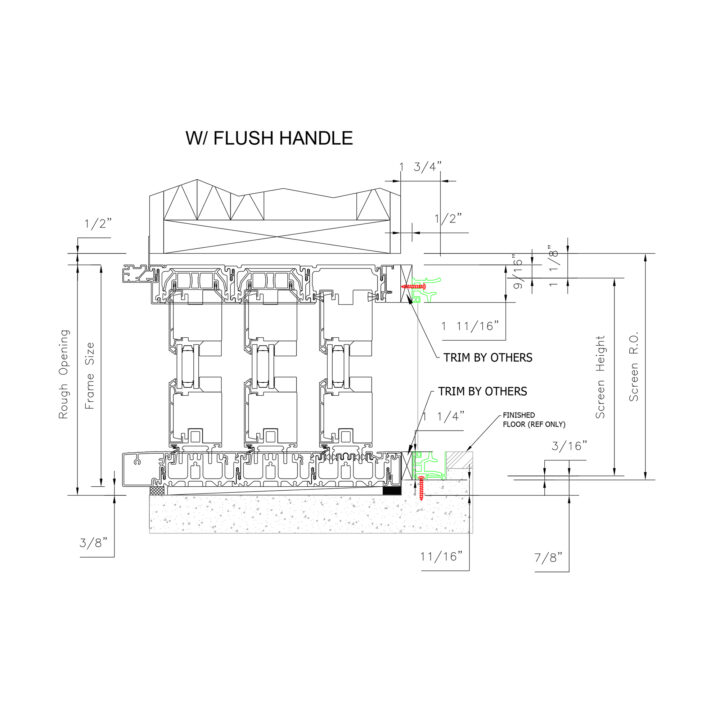

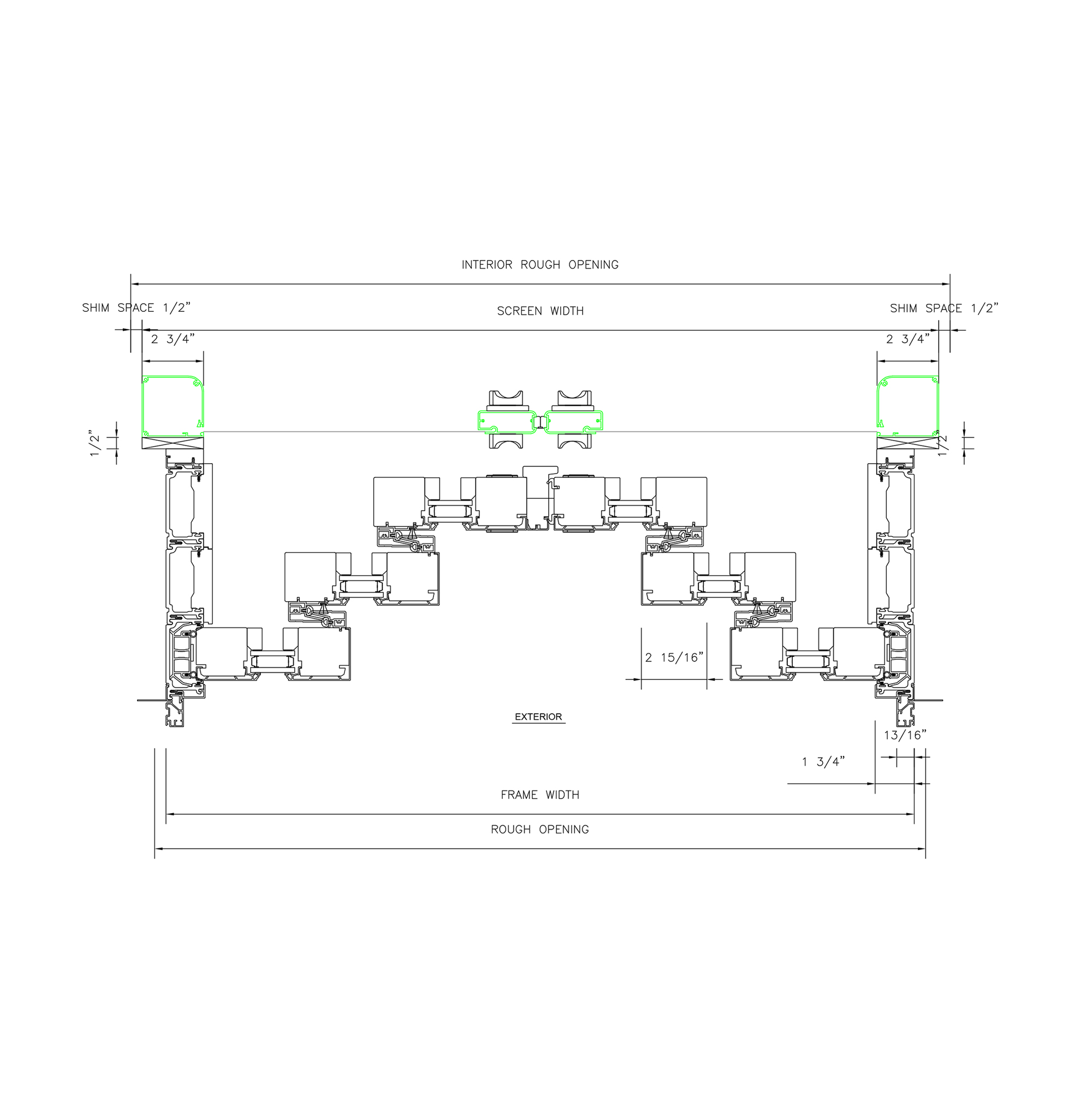

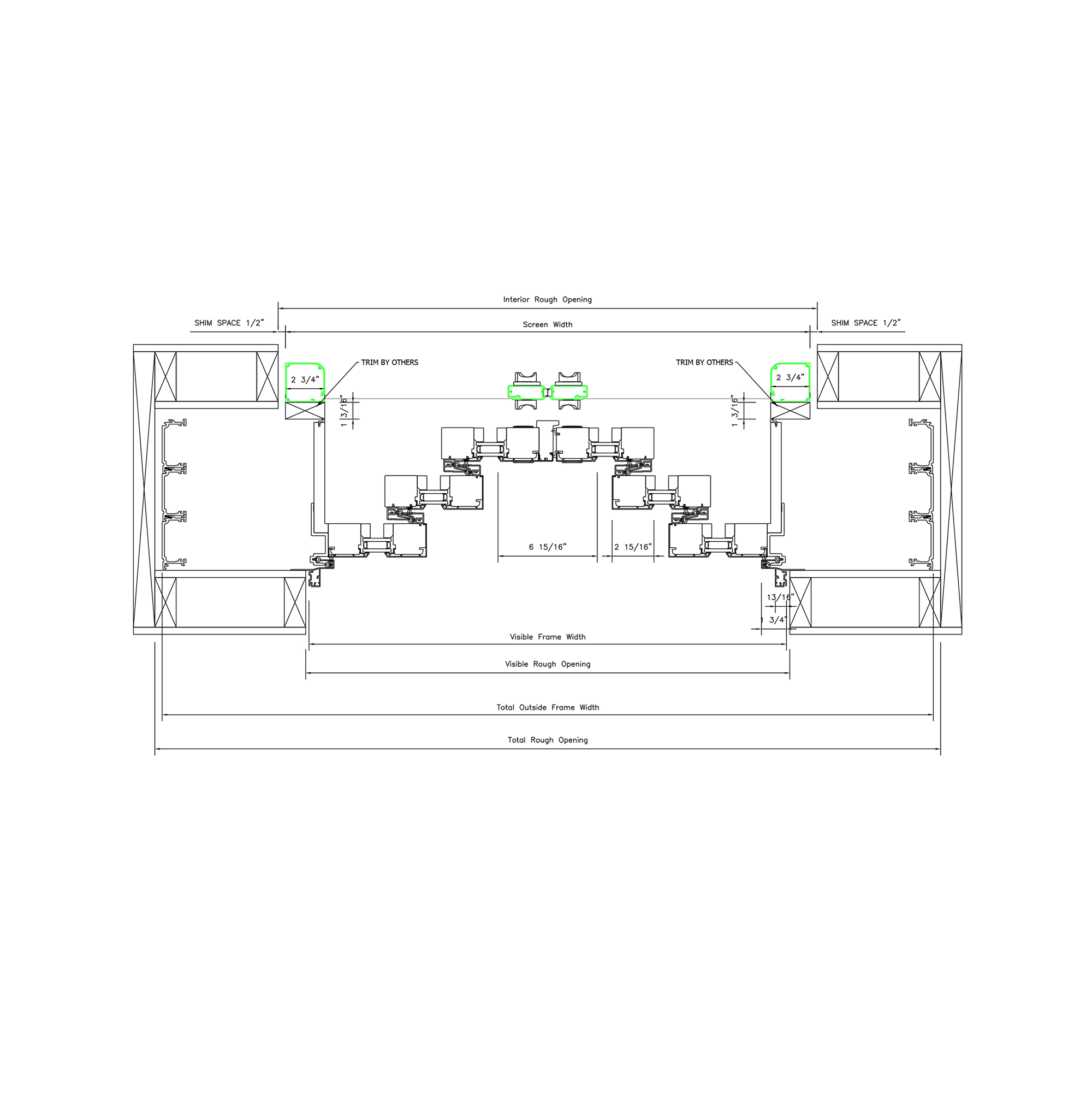

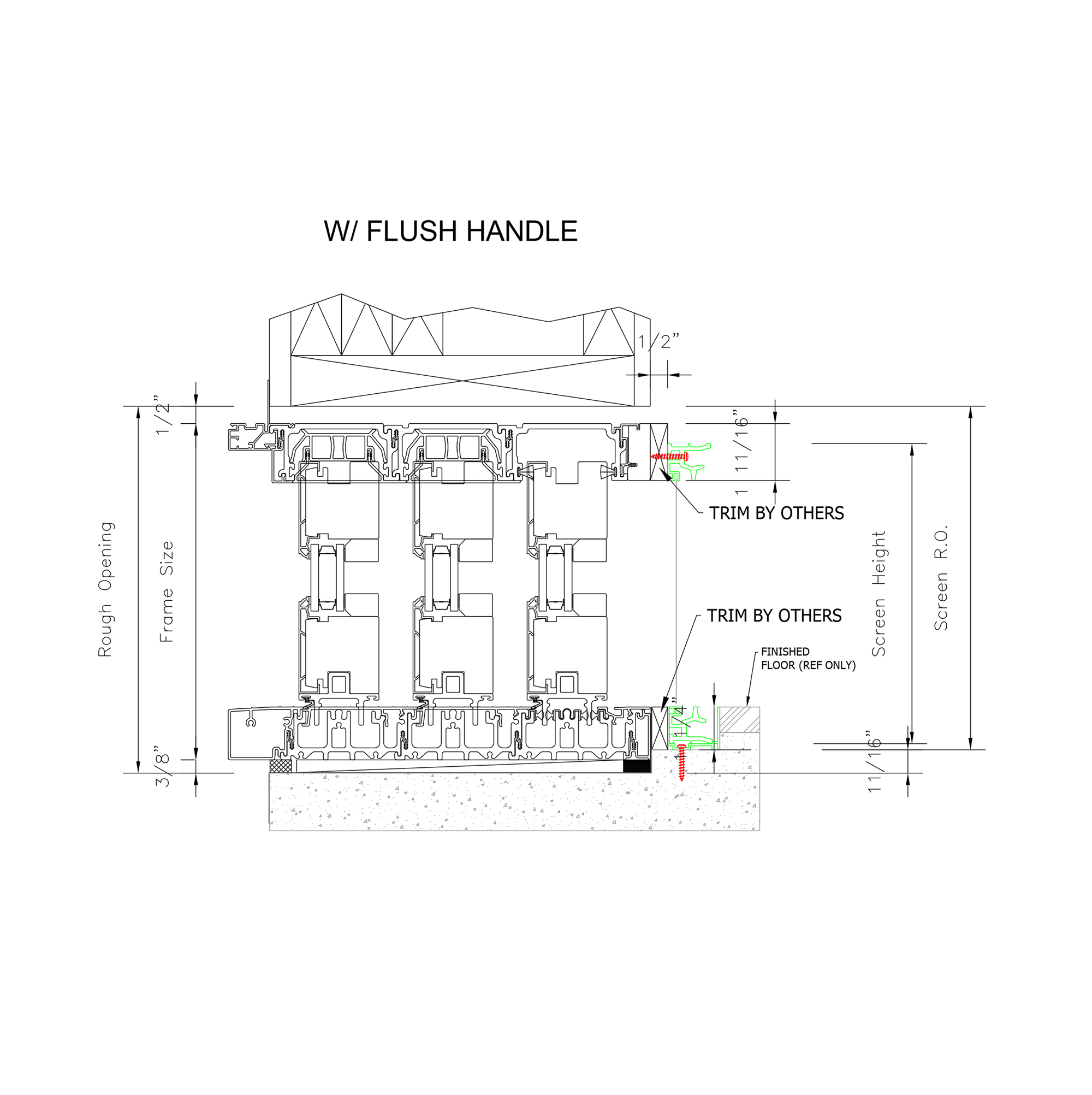

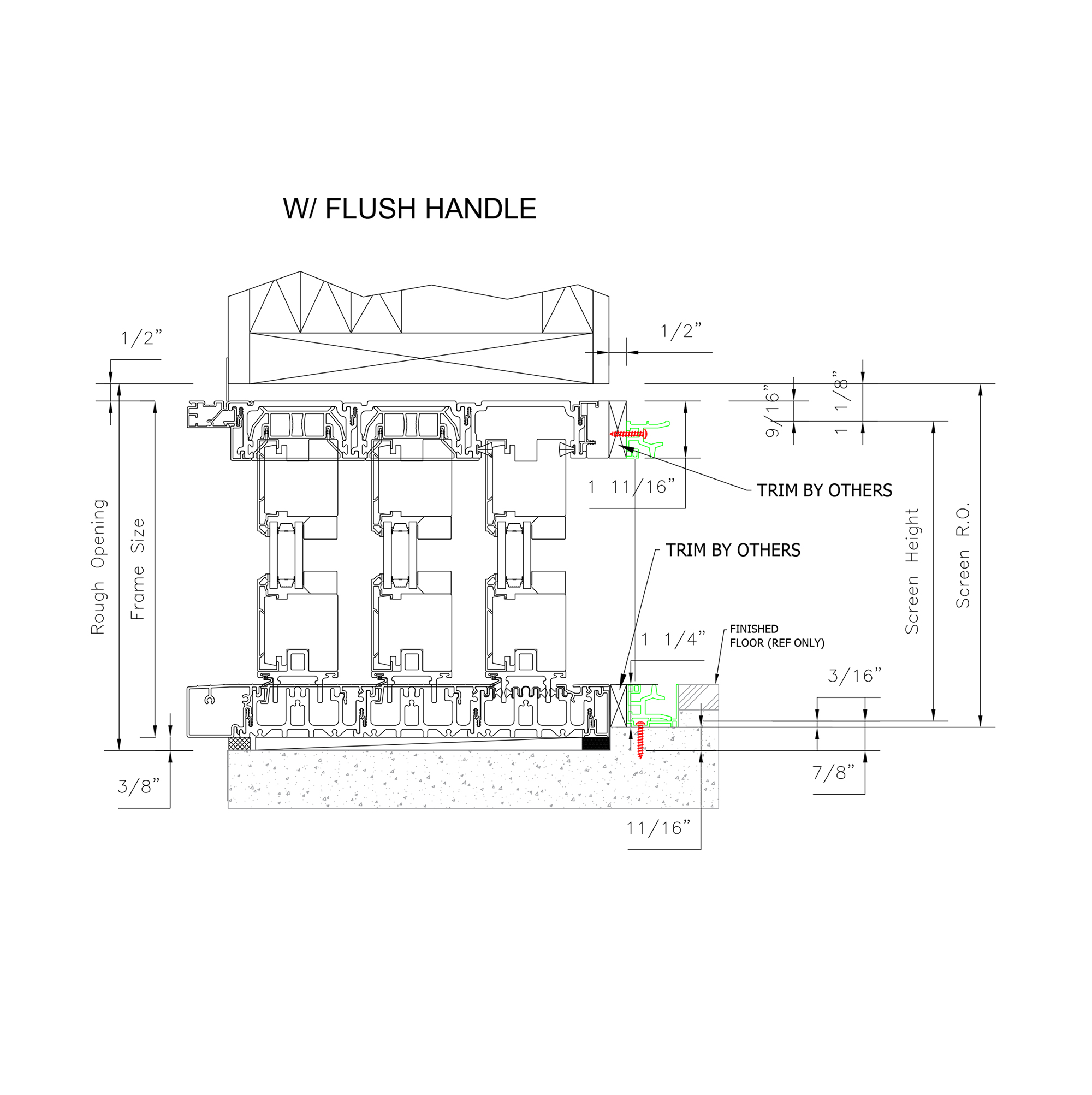

Metal Clad - Wide Stile, Vista View Screen, OX-XO

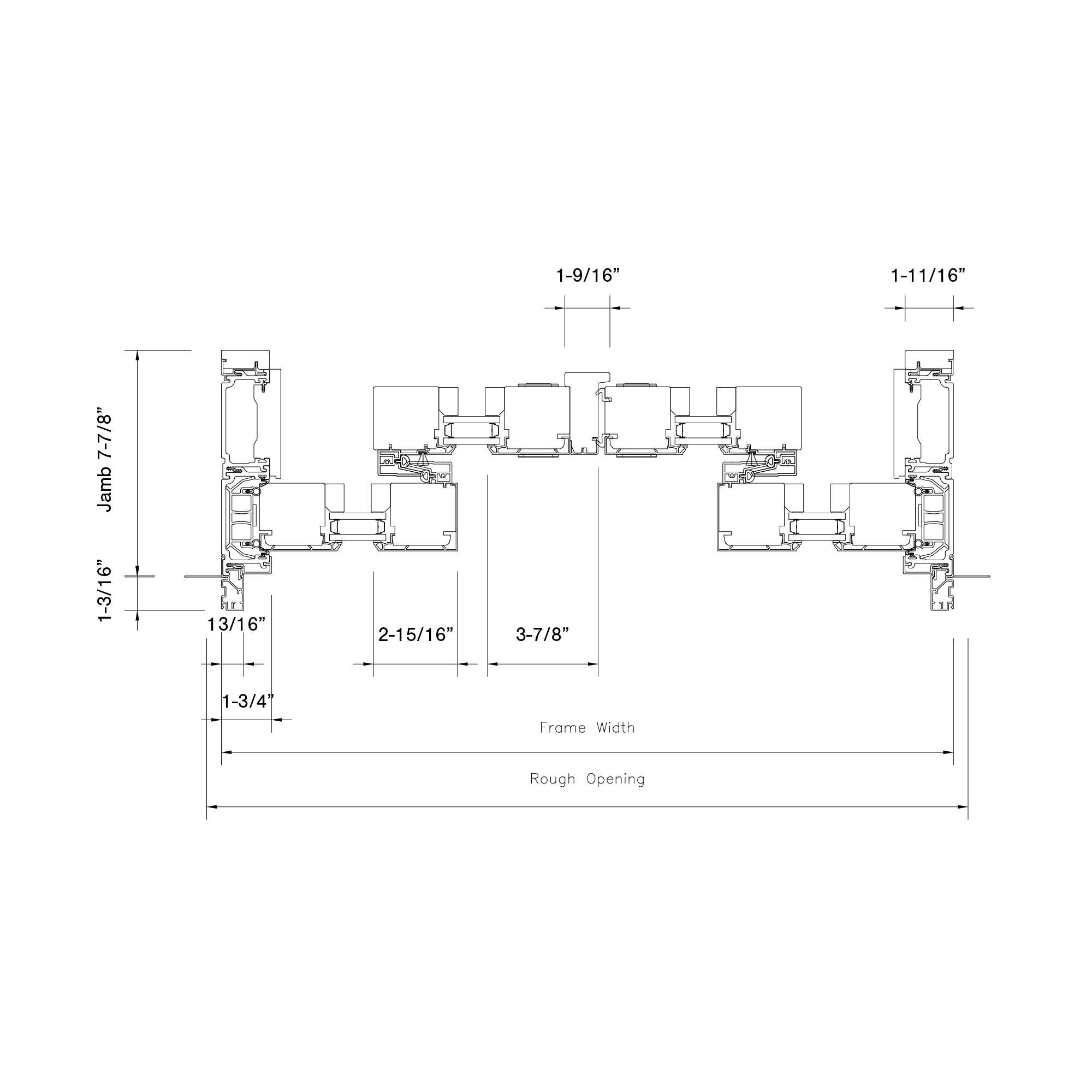

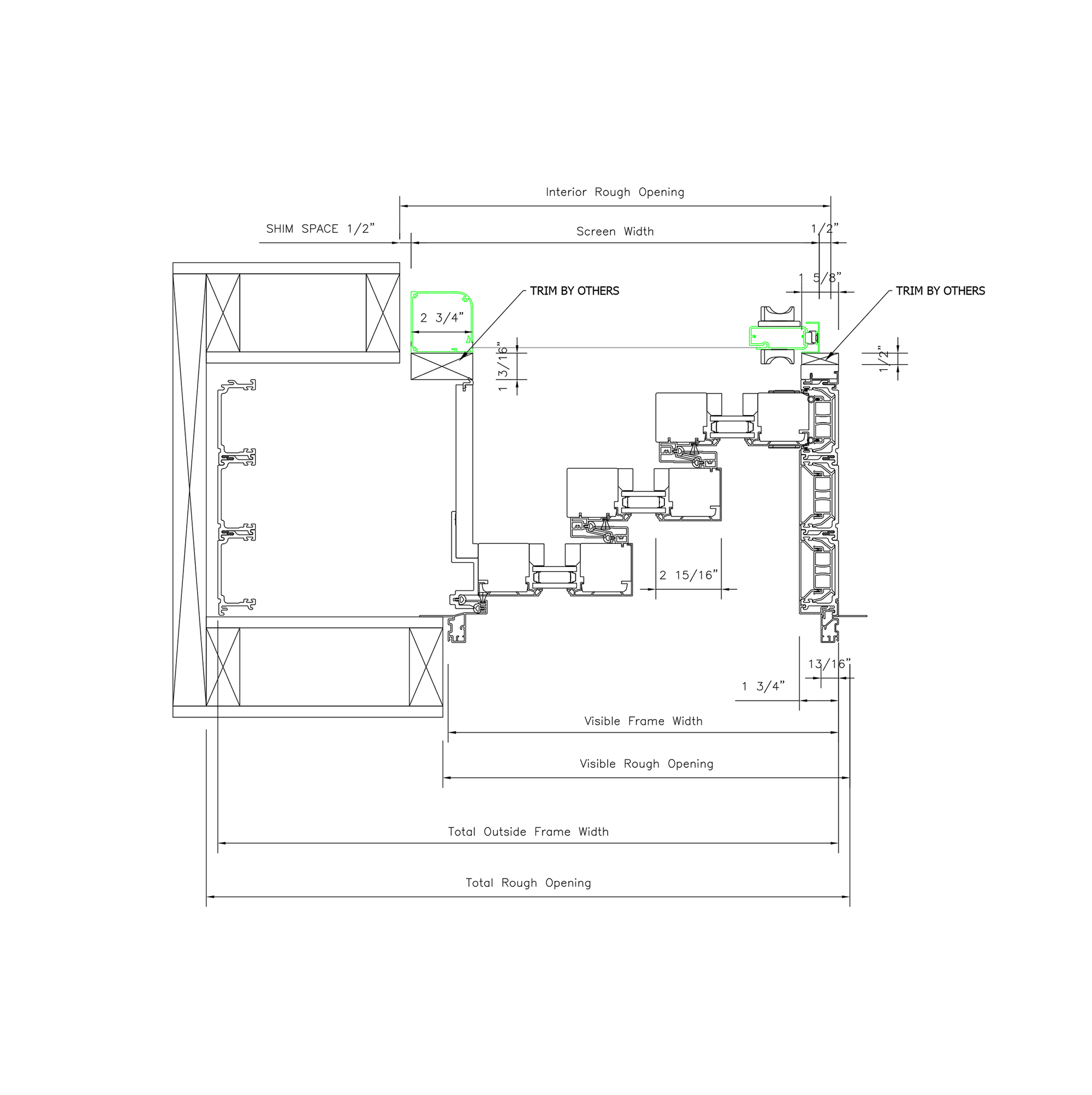

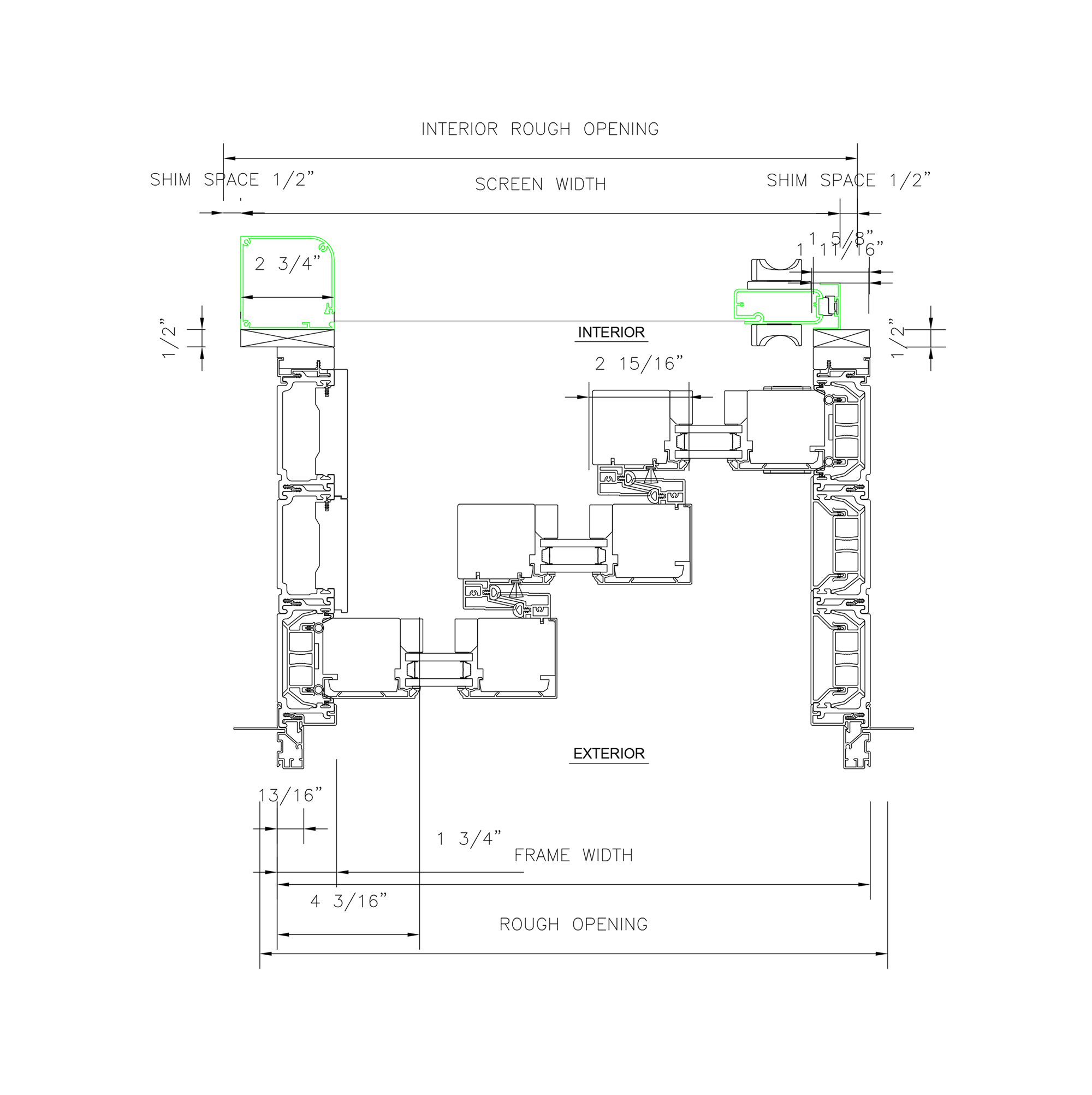

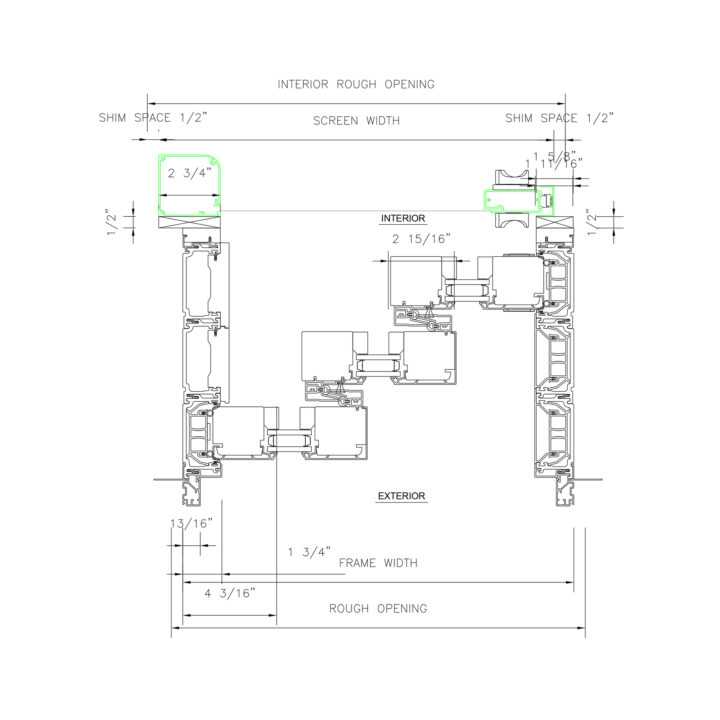

Metal Clad - Wide Stile, Vista View Screen, OX-XO (Plan View)

Bi-Parting w/ Pocket

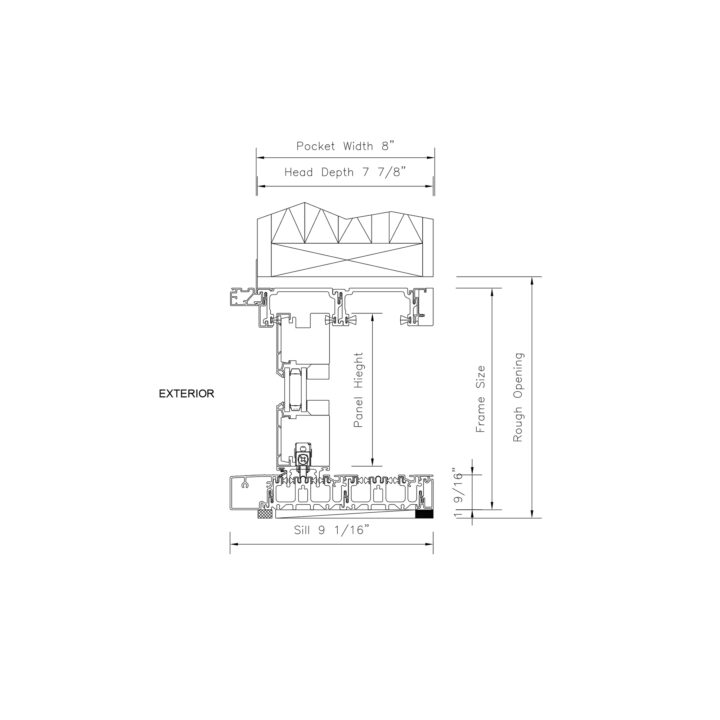

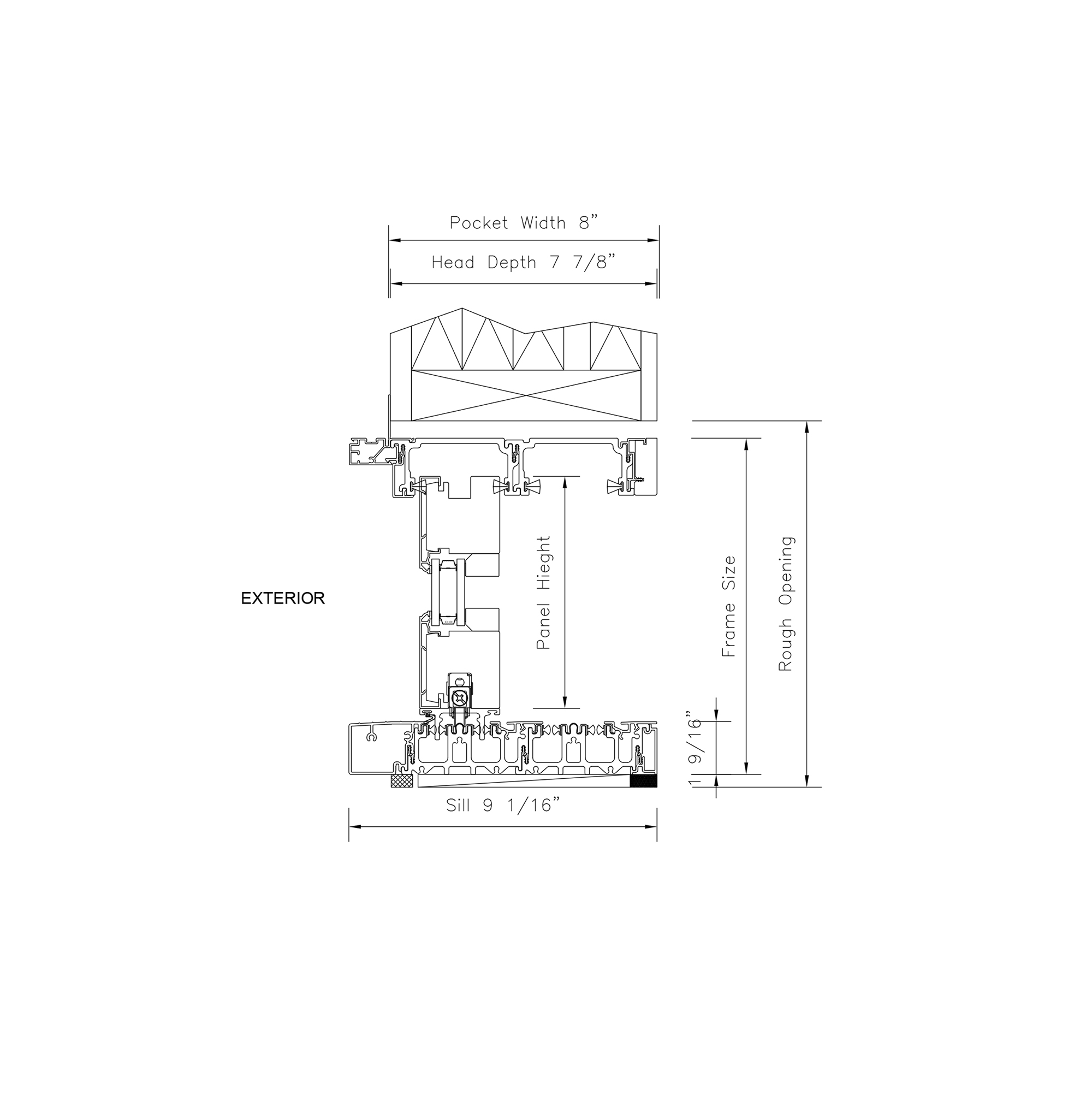

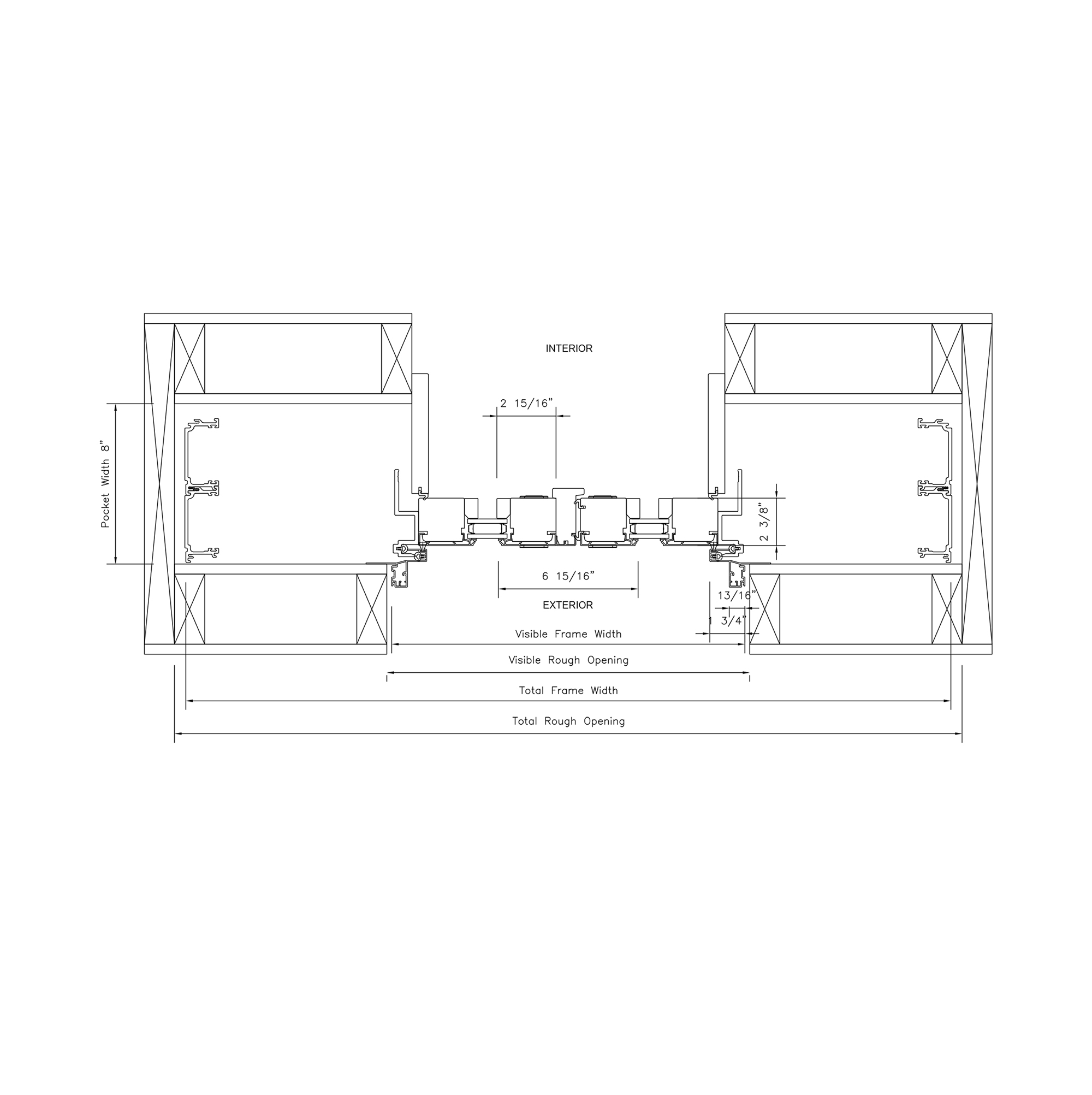

Metal Clad - Narrow Stile, PX-XP

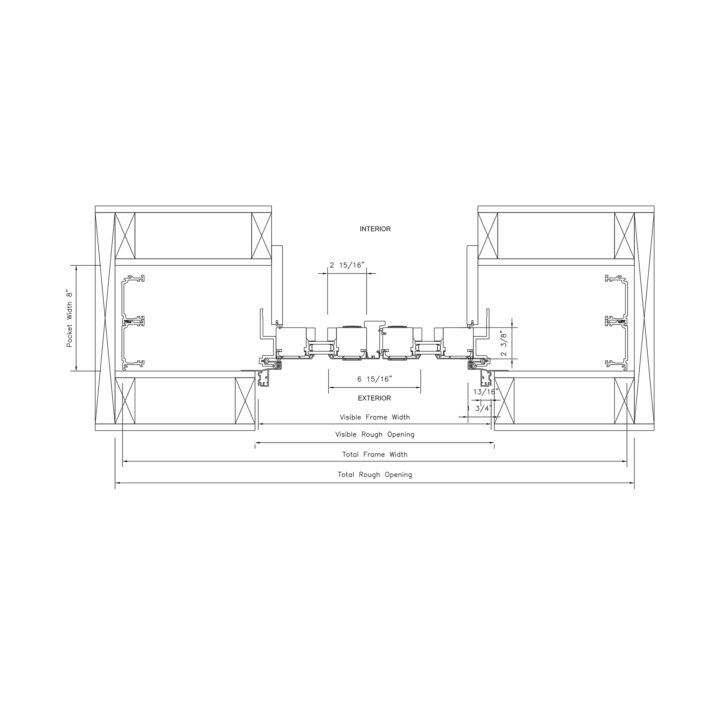

Metal Clad - Narrow Stile, PX-XP (Plan View)

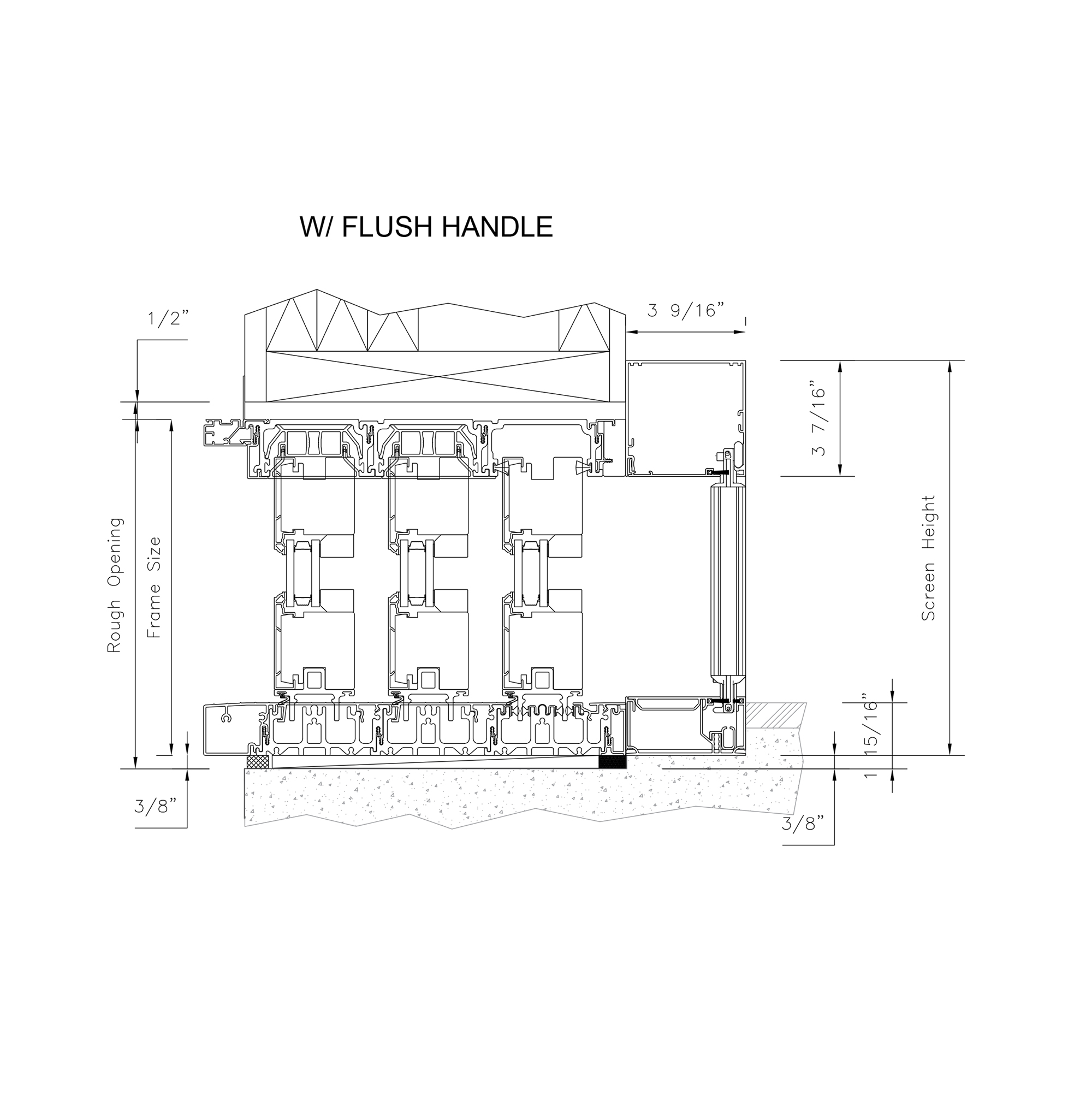

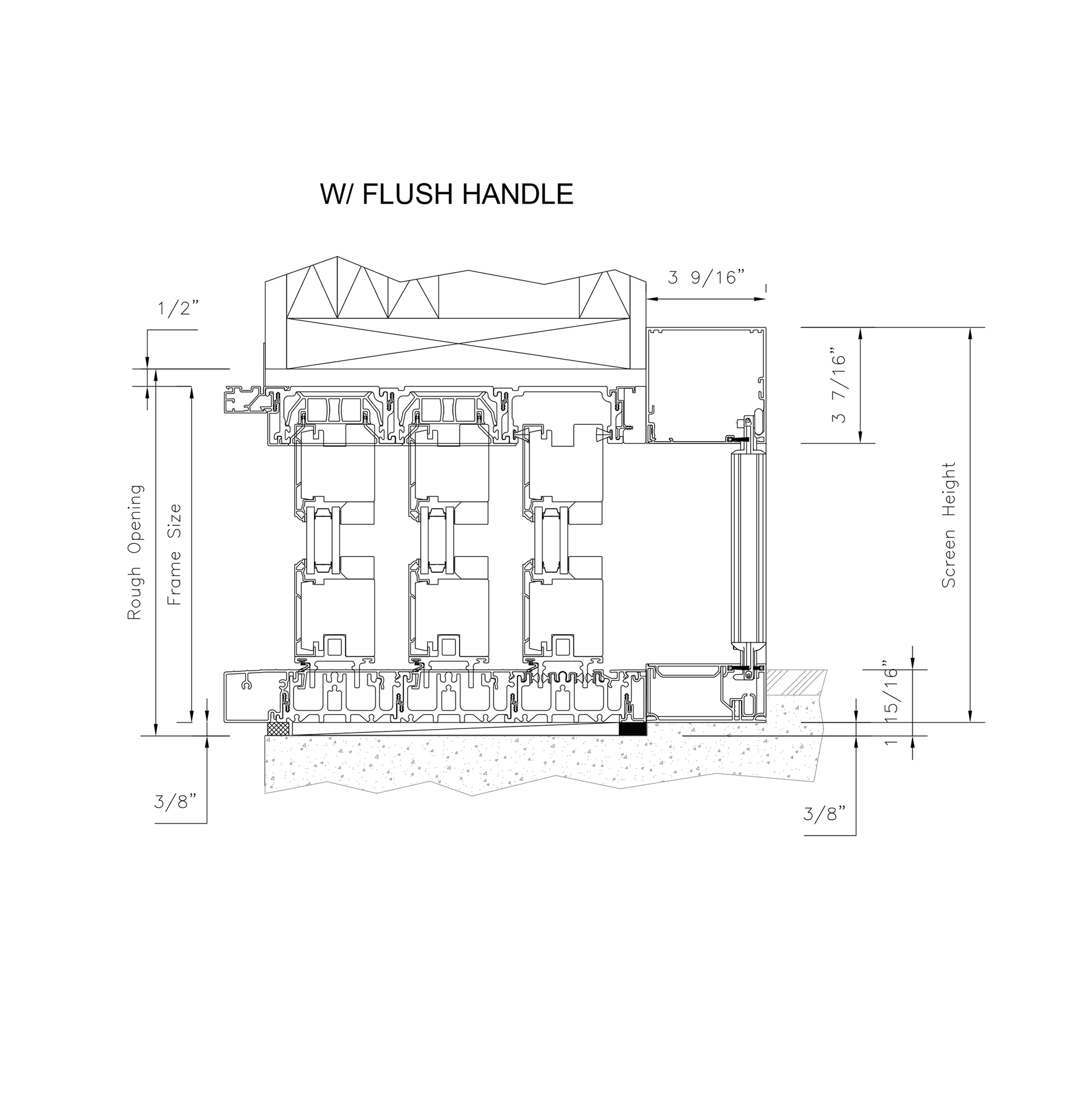

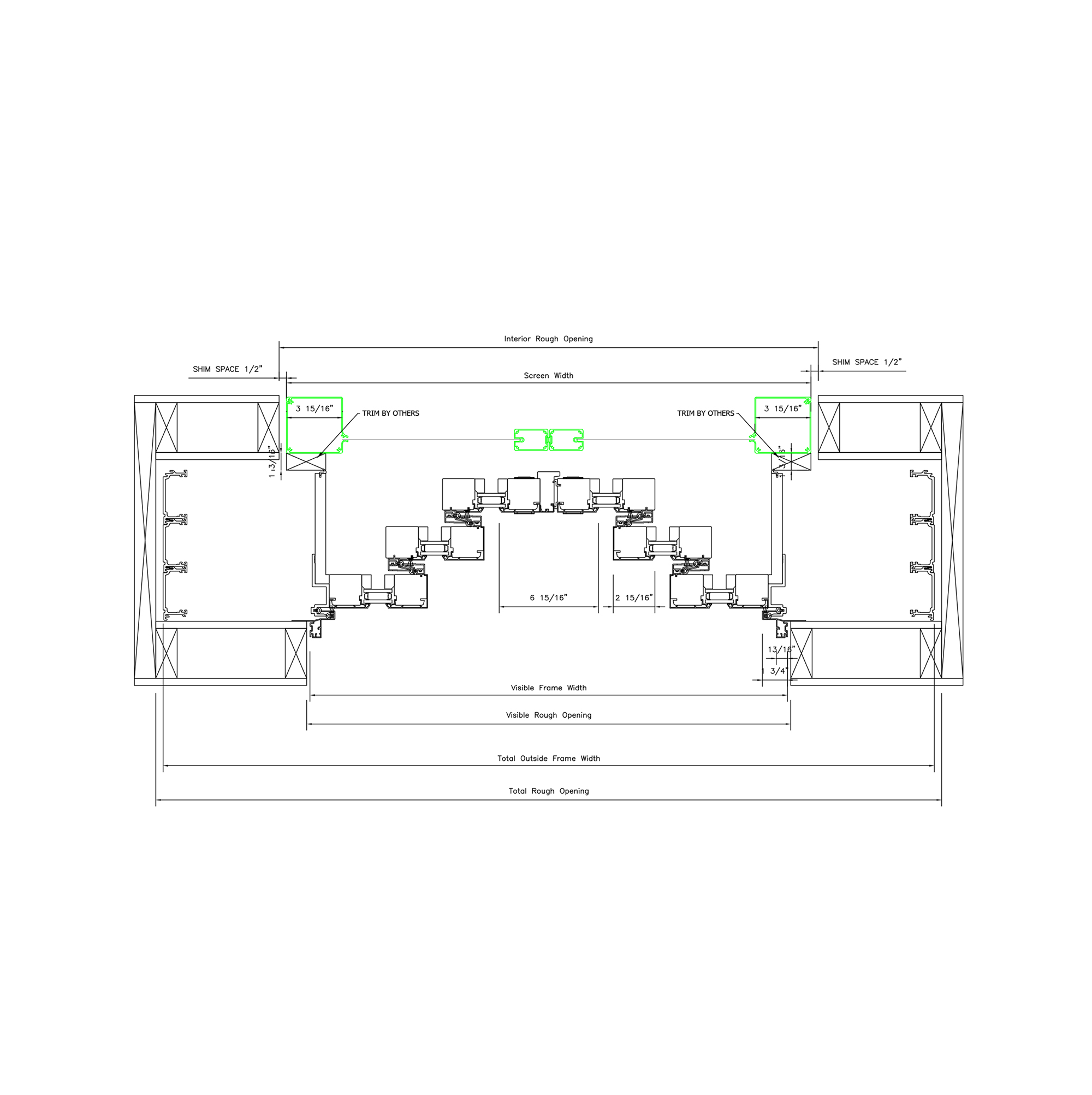

Metal Clad - Wide Stile, PXX-XXP

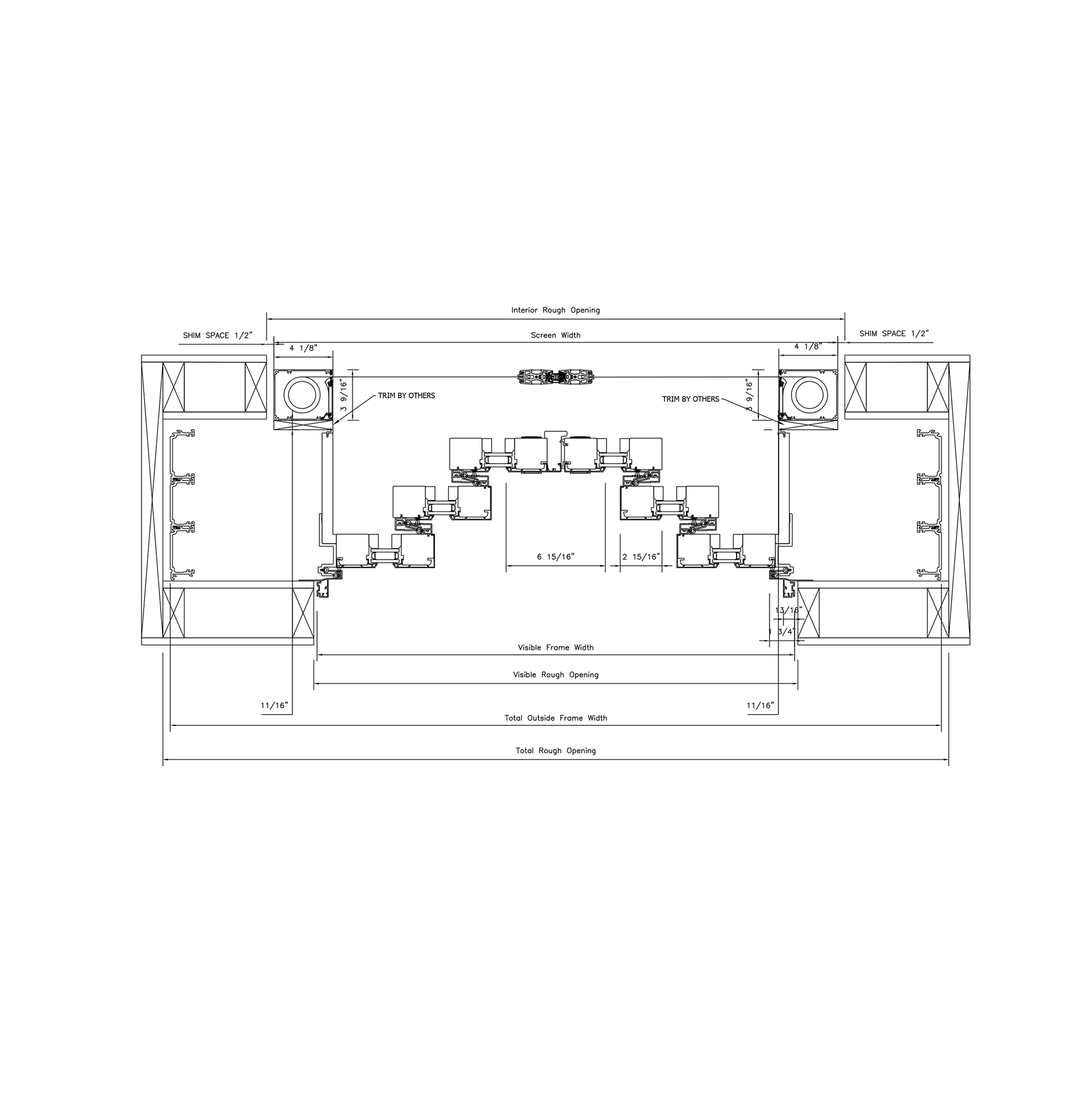

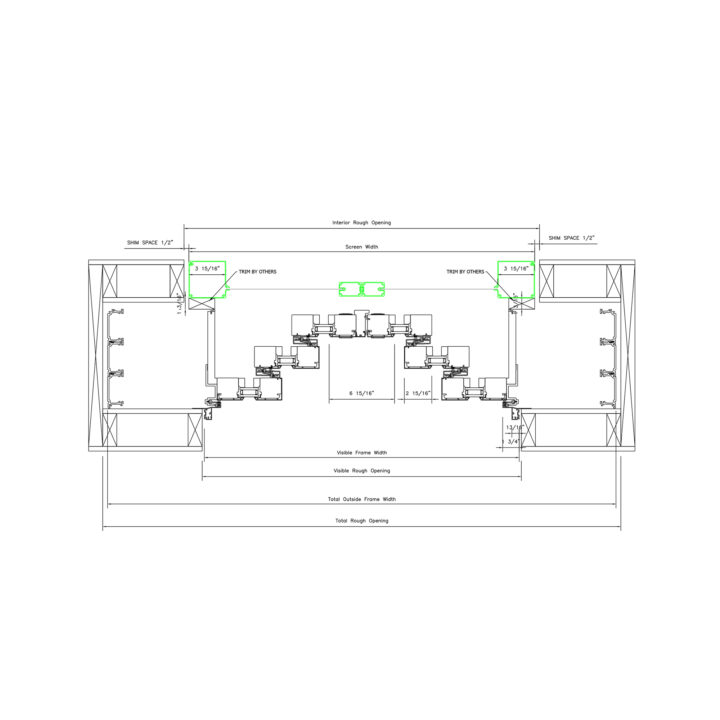

Metal Clad - Wide Stile, PXX-XXP (Plan View)
